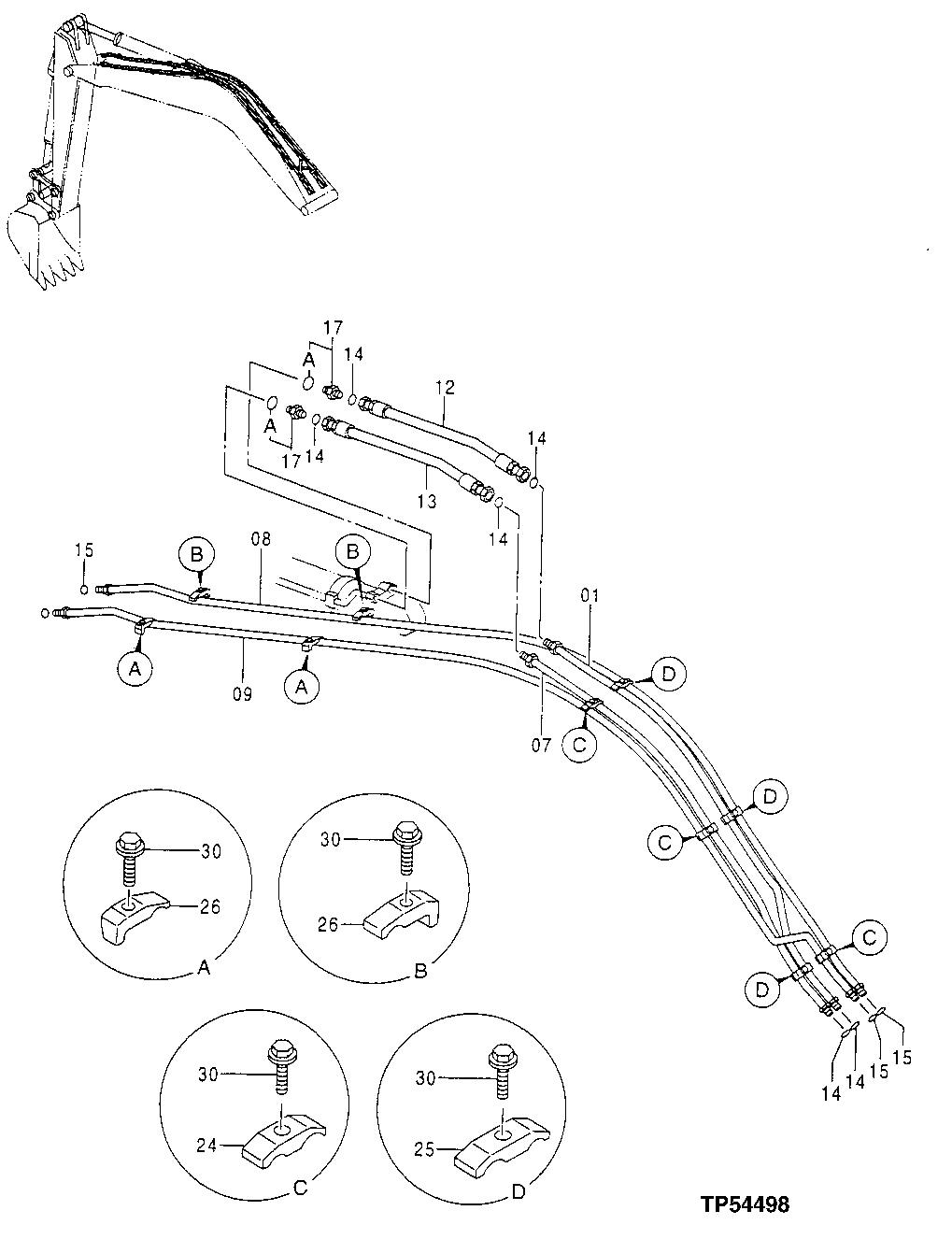

Запчасти John Deere 10 289 - Front Lines 3360 Hydraulic System

1

AP34350

Oil Tube

1шт.

7

AP34349

Oil Tube

1шт.

8

AP34351

Oil Tube

1шт.

9

AP34348

Oil Tube

1шт.

12

P63474

Hydraulic Hose

1шт.

13

P63476

Hydraulic Hose

1шт.

14

T77858

O-Ring

6шт.

15

T77857

O-Ring

4шт.

17

A853166

Adapter Fitting

(SUB FOR AT107392 OR 4189619)

2шт.

17A

R27149

O-Ring

1шт.

24

4189858

Clamp

(SUB FOR TH108333)

3шт.

25

4141806

Clamp

(SUB FOR TH100968)

3шт.

26

4190125

Clamp

(SUB FOR TH108960)

4шт.

30

19M7362

Cap Screw

M12 X 55

10шт.

12H301

Lock Washer

1/2"

10шт.
