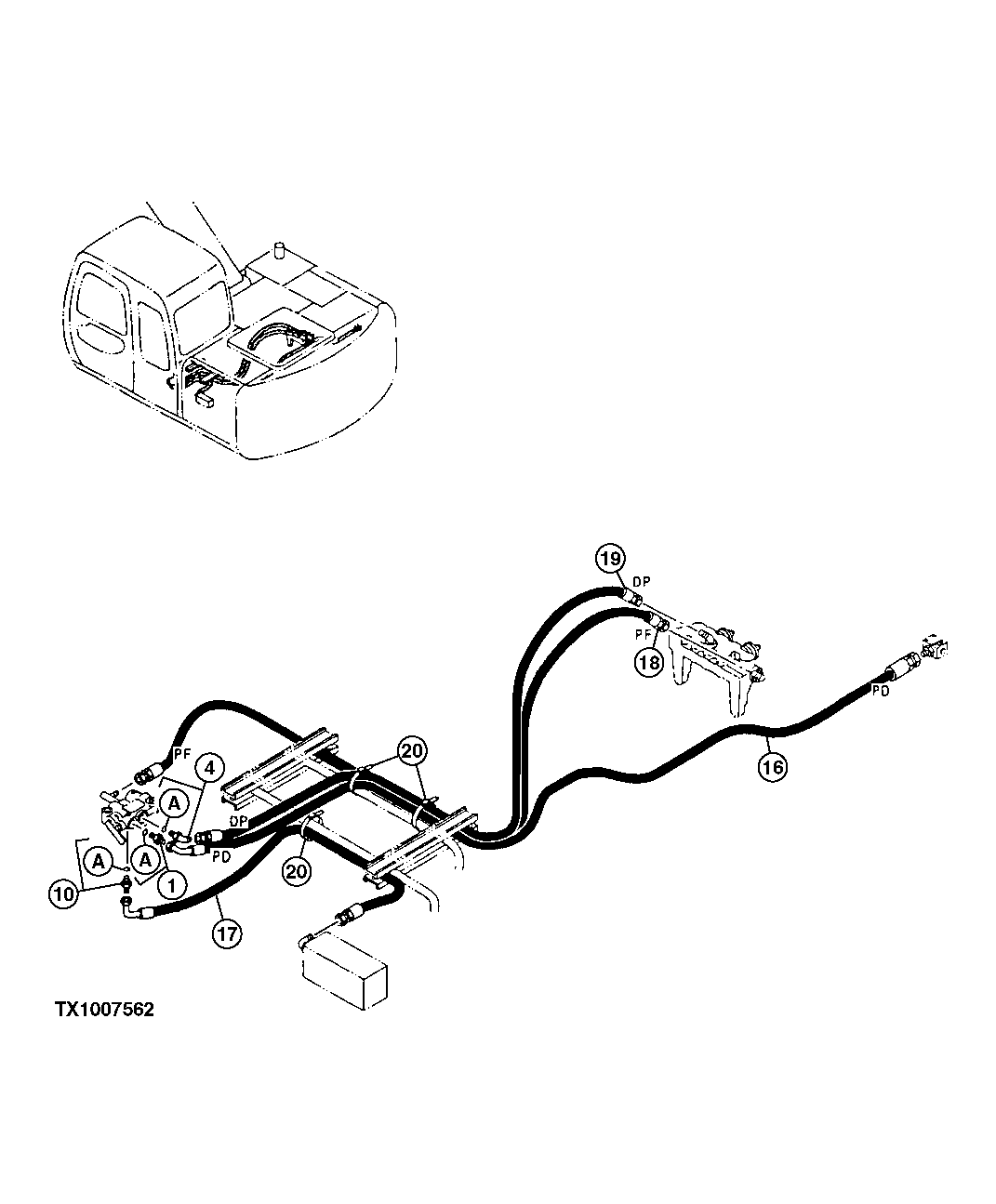

Запчасти John Deere 10 288 - PILOT HOSES 3360 Hydraulic System

1

4200466

Adapter Fitting

(SUB FOR TH108320)

1шт.

1A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

4

A852333

Elbow Fitting

(SUB FOR TH101047) (SUB FOR 4154671)

1шт.

4A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

10

4346499

Filter

(SUB FOR AT213911)

1шт.

10A

M800650

Packing

1шт.

16

AP34117

Hydraulic Hose

1шт.

17

AP34071

Hydraulic Hose

1шт.

18

4373641

Hose

(SUB FOR AT183635)

1шт.

19

AP34073

Hydraulic Hose

1шт.

20

H77698

Tie Band

3шт.
