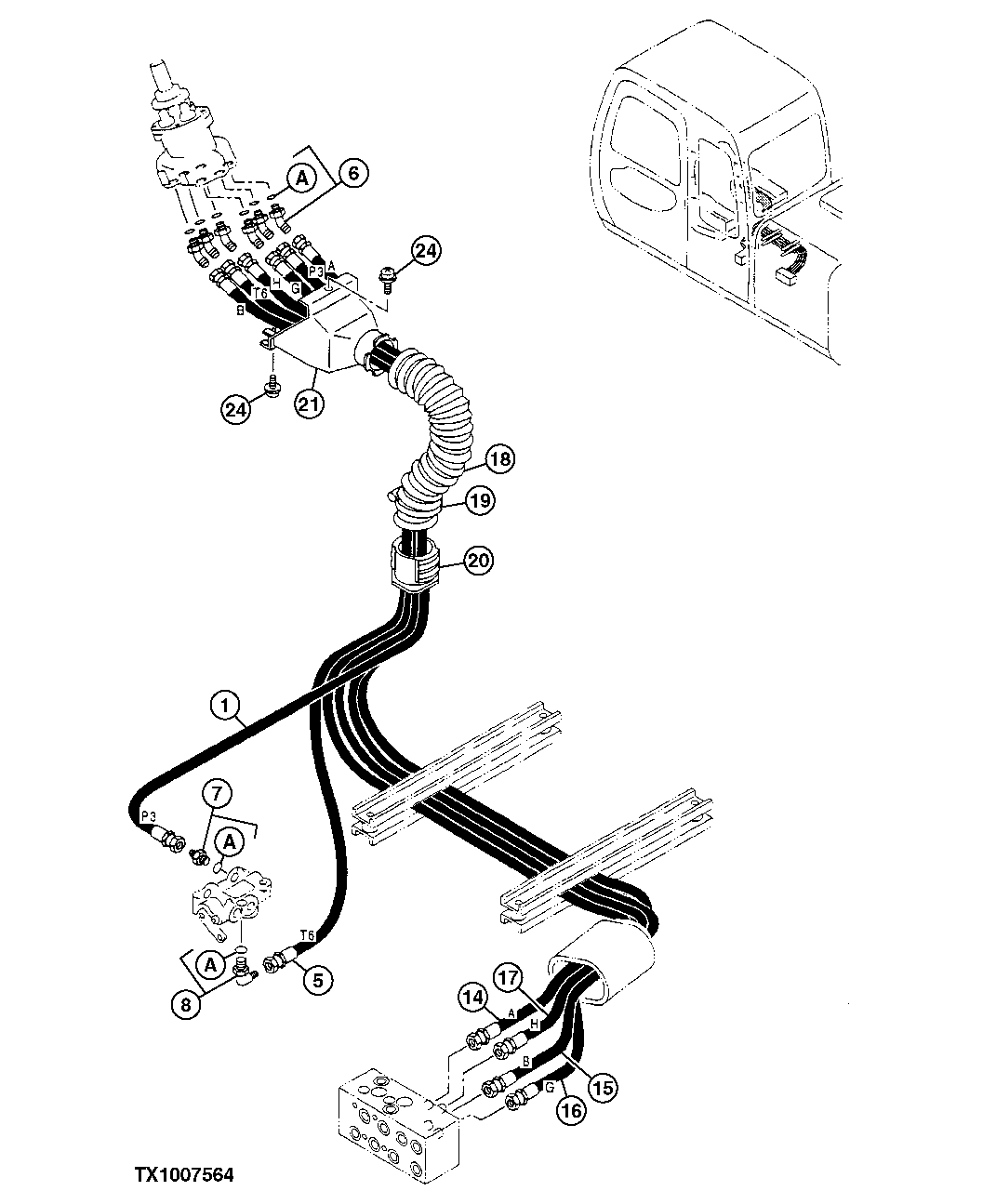

Запчасти John Deere 10 286 - PILOT HOSES (RIGHT JOYSTICK) 3360 Hydraulic System

1

AT213850

Hydraulic Hose

9/16" X 1250 mm (49-1/4") X 9/16"

1шт.

5

AT213852

Hydraulic Hose

9/16" X 1200 mm (47-1/4") X 9/16"

1шт.

6

A852223

Elbow Fitting

(SUB FOR AT154994 OR 4286916)

6шт.

6A

M800650

Packing

1шт.

7

4367031

Filter

(SUB FOR AT214033)

1шт.

7A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

8

A852333

Elbow Fitting

(SUB FOR TH101047 ) (SUB FOR 4154671)

1шт.

8A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

14

AT215524

Hydraulic Hose

(SUB FOR AT218391)

1шт.

15

4351190

Hydraulic Hose

(SUB FOR AT217110)

1шт.

16

AT215524

Hydraulic Hose

1шт.

17

AT215525

Hydraulic Hose

1шт.

18

4351175

Hose

(SUB FOR AT213957)

1шт.

19

4351774

Clamp

(SUB FOR AT213962)

1шт.

20

3079728

Bushing

(SUB FOR AT213780 ) (SUB FOR AT250589)

1шт.

21

3072745

Cover

(SUB FOR AT213784)

1шт.

24

Screw With Washer

( J460620 NLA) (SUB FOR AT200012)

2шт.

21M7267

Screw

M6 X 20

2шт.

24M7293

Washer

6.500 X 13 X 1.600 mm

2шт.

12M7006

Lock Washer

6 mm

2шт.
