Запчасти John Deere 10 285 - PILOT HOSES (LEFT JOYSTICK) 3360 Hydraulic System

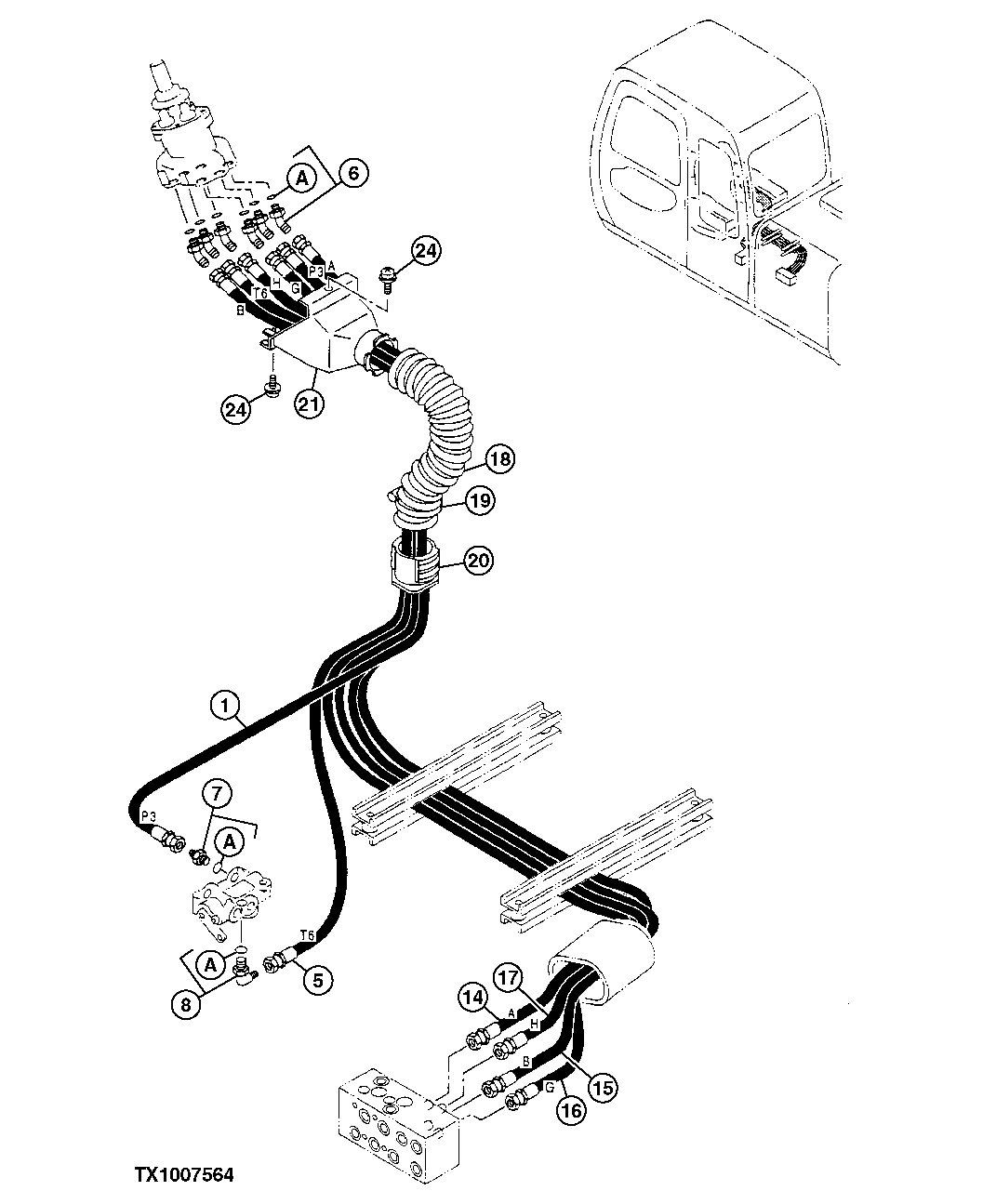

Схема запчастей John Deere 10 - 285 - PILOT HOSES (LEFT JOYSTICK) 3360 Hydraulic System

Артикул

Название

Примечание

Количество

1

AT213849

Hydraulic Hose

1шт.

5

AT213851

Hydraulic Hose

1шт.

6

A852223

Elbow Fitting

(SUB FOR AT154994 OR 4286916)

6шт.

6A

M800650

Packing

1шт.

7

4261938

Fitting

(SUB FOR AT154285)

1шт.

7A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

8

A852333

Elbow Fitting

(SUB FOR TH101047 ) (SUB FOR 4154671)

1шт.

8A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

14

4341877

Channel

(SUB FOR AT213887)

2шт.

15

9743671

Channel

(SUB FOR AT214405)

2шт.

19

4203024

Hydraulic Hose

(SUB FOR TH108468)

1шт.

20

AT213906

Hydraulic Hose

1шт.

21

AT201251

Hydraulic Hose

9/16" X 2000 mm (78-3/4") X 9/16"

1шт.

22

AT213906

Hydraulic Hose

(SUB FOR AT218390)

1шт.

23

4351175

Hose

(SUB FOR AT213957)

1шт.

24

4351774

Clamp

(SUB FOR AT213962)

1шт.

25

3079728

Bushing

(SUB FOR AT213780 ) (SUB FOR AT250589)

1шт.

26

3072745

Cover

(SUB FOR AT213784)

1шт.

31

19M7358

Cap Screw

M10 X 40

4шт.

12M7066

Lock Washer

10 mm

4шт.

32

Screw With Washer

( J460620 NLA) (SUB FOR AT200012)

2шт.

21M7267

Screw

M6 X 20

2шт.

24M7293

Washer

6.500 X 13 X 1.600 mm

2шт.

12M7006

Lock Washer

6 mm

2шт.

Выбрано товаров: 24
