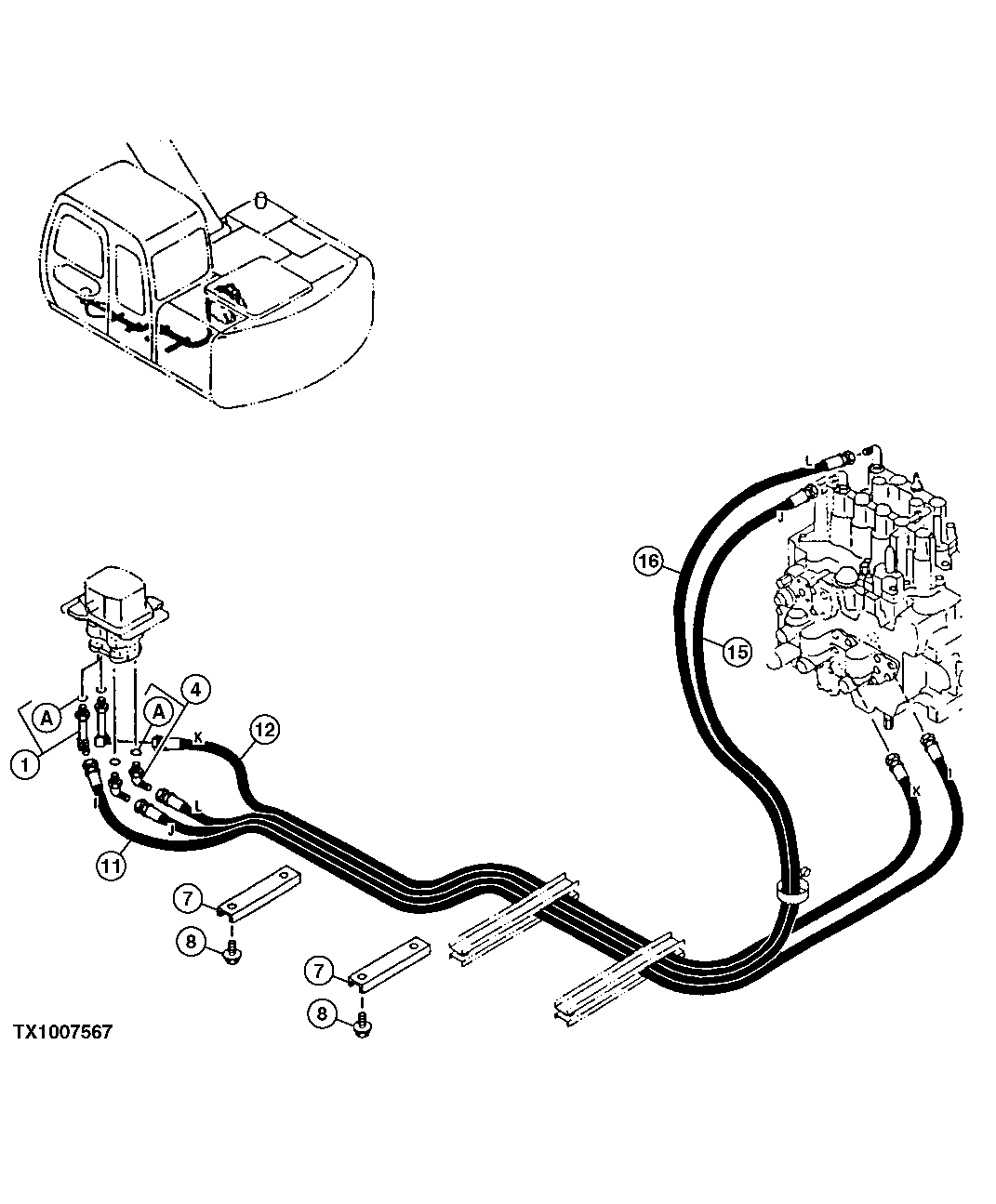

Запчасти John Deere 10 282 - PILOT HOSES 3360 Hydraulic System

1

AT318014

Elbow Fitting

SUB FOR 4156434, SUB FOR AT204940, SUB FOR TH101930

2шт.

1A

M800650

Packing

1шт.

4

AT318014

Elbow Fitting

SUB FOR 4156434, SUB FOR TH101930

2шт.

4A

M800650

Packing

1шт.

7

4342692

Channel

SUB FOR AT213888

2шт.

8

19M8324

Cap Screw

M10 X 16

4шт.

12M7066

Lock Washer

10 mm

4шт.

11

AT215923

Hydraulic Hose

1шт.

12

AT215924

Hydraulic Hose

1шт.

15

AT216551

Hydraulic Hose

SUB FOR AT216552 AND AT21 8231, ALSO ORDER TH106022

1шт.

16

AT216551

Hydraulic Hose

SUB FOR AT218389, ALSO ORDER TH106022

1шт.

4327315

Hose Guard

4327293 NLA, SUB FOR TH106022 OR 4133527

1шт.
