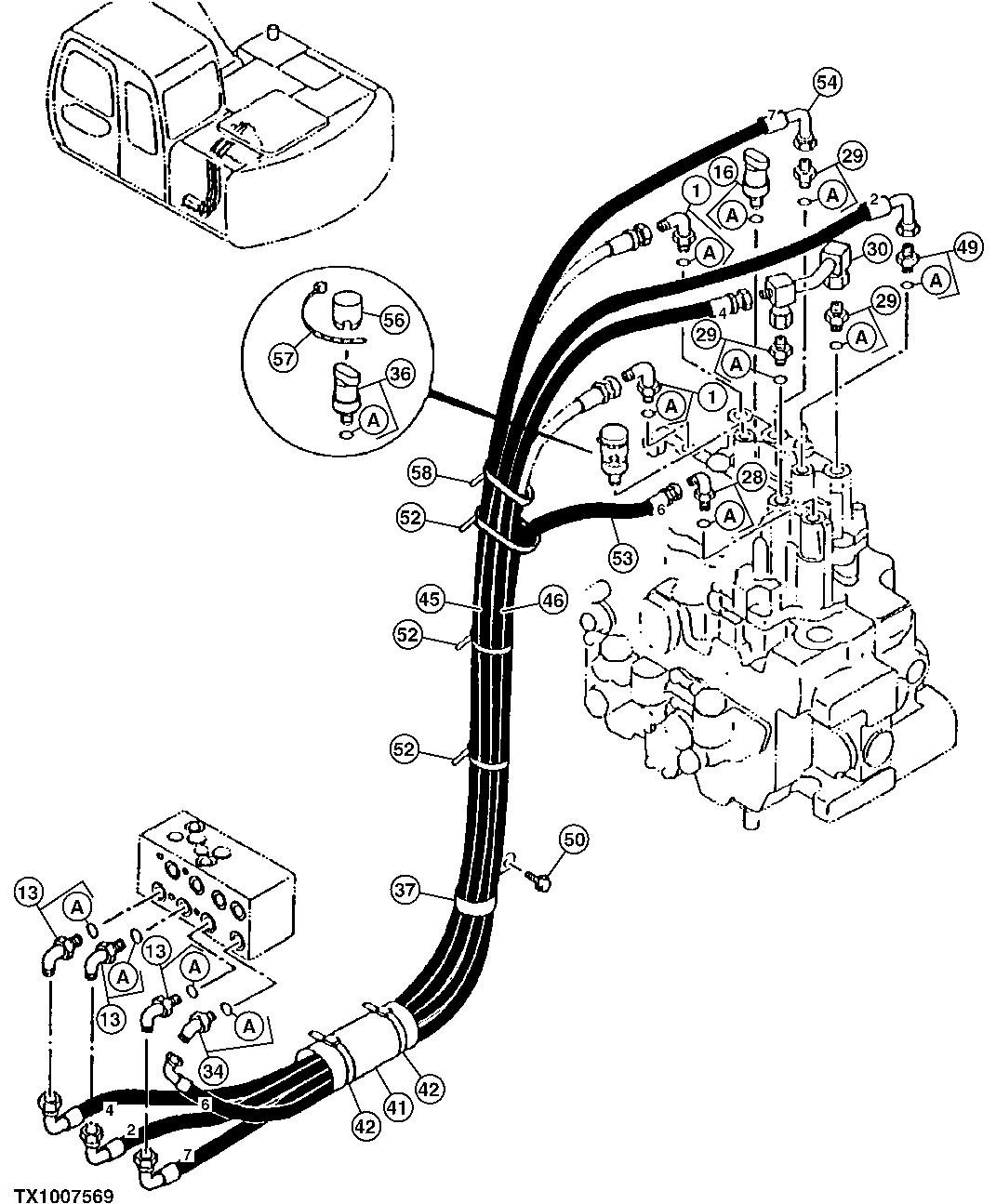

Запчасти John Deere 10 280 - PILOT HOSES 3360 Hydraulic System

1

4208913

Adapter Fitting

(SUB FOR AT126458)

2шт.

1A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

13

A852333

Elbow Fitting

(SUB FOR TH101047 ) (SUB FOR 4154671)

3шт.

13A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

16

4380677

Switch

Propel Pressure Switch (SUB FOR AT215109)

1шт.

16A

M800650

Packing

1шт.

28

4351281

Fitting

(SUB FOR AP33426)

1шт.

28A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

29

4202422

Adapter Fitting

(SUB FOR TH108440)

3шт.

29A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

30

AP33433

Pipe

1шт.

34

4200473

Elbow Fitting

(SUB FOR AP33478)

1шт.

34A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

36

4353686

Switch

Dig Pressure Switch (SUB FOR AT213971)

1шт.

36A

M800650

Packing

1шт.

37

N198631

Clamp

(SUB FOR TH111255, APPL) (S UB FOR TH109598 OR 4190265)

1шт.

41

4219918

Isolator

(SUB FOR TH111416)

1шт.

42

H77698

Tie Band

2шт.

45

P61634

Hydraulic Hose

1шт.

46

P61620

Hydraulic Hose

1шт.

49

4200467

Adapter Fitting

(SUB FOR TH108417)

1шт.

49A

M800650

Packing

1шт.

50

12M7066

Lock Washer

10 mm

1шт.

19M7402

Cap Screw

M10 X 25

1шт.

24M7028

Washer

10.500 X 20 X 2 mm

1шт.

52

H77698

Tie Band

3шт.

53

P61638

Hydraulic Hose

1шт.

54

P61639

Hydraulic Hose

1шт.

56

4207239

Cap

(SUB FOR AP34020 ) (SUB FOR TH108591)

1шт.

57

H77698

Tie Band

1шт.

58

M86436

Tie Band

1шт.
