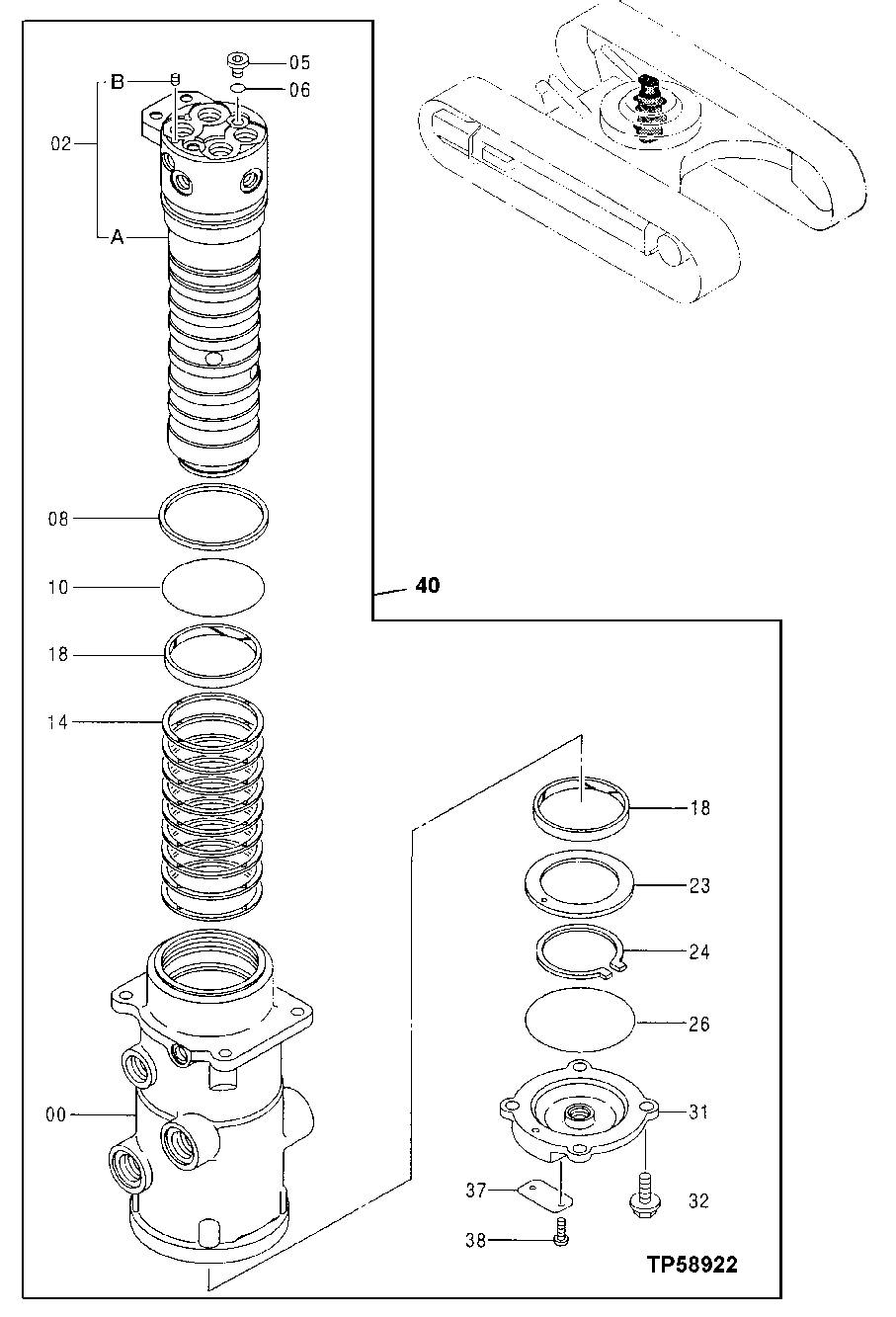

Запчасти John Deere 10 19 - Rotary Manifold (For Use w/ Blade) 0260 Axles, Diff. & Susp. Sys. Hyd

0

Housing

1шт.

2

Spindle

1шт.

2A

Spindle

1шт.

2B

Fitting Plug

1шт.

5

4336167

Fitting Plug

(SUB FOR AT206055)

2шт.

6

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

2шт.

8

4359551

Seal

Dust (SUB FOR T165608)

1шт.

10

4359552

O-Ring

(SUB FOR T165609)

1шт.

14

4359550

Seal

Oil (SUB FOR T165610)

9шт.

18

4359549

Bushing

(SUB FOR T165611)

2шт.

23

4359548

Ring

(SUB FOR T165612)

1шт.

24

40M7150

Snap Ring

1шт.

26

CH13523

Packing

1шт.

31

3074241

Cover

(SUB FOR T165613)

1шт.

32

19M8011

Cap Screw

M12 X 30

4шт.

12M7058

Lock Washer

12 mm (SUB FOR 12M7067)

4шт.

37

Identification Plate

1шт.

38

37H99

Screw

0.100" X 1/4"

2шт.

40

9164866

Housing

Rotary Manifold Assembly (WITH ANTI-RUST PRO TECTION) (SUB FOR AP35030 ) (SUB FOR AP35550)

1шт.
