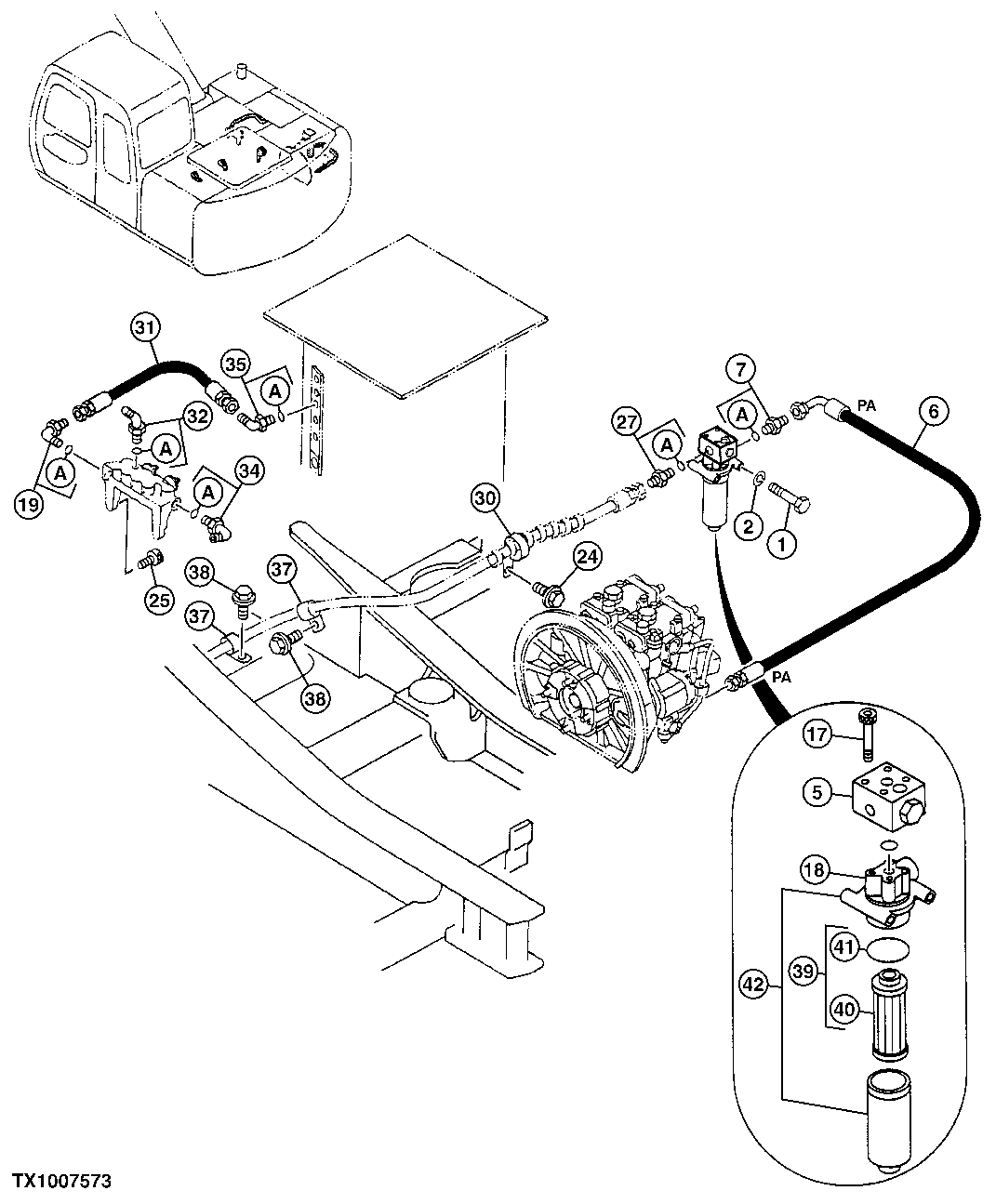

Запчасти John Deere 10 276 - Pilot Hoses and Filter At Pump 3360 Hydraulic System

1

19M8343

Cap Screw

M10 X 120

2шт.

2

12M7066

Lock Washer

10 mm

2шт.

5

4351142

Pressure Relief Valve

(SUB FOR AT213955)

1шт.

6

P64273

Hydraulic Hose

1шт.

7

4154672

Elbow Fitting

(SUB FOR TH101008)

1шт.

7A

4506418

O-Ring

17.800 X 2.400 mm (0.701" X 3/32") (SUB FOR U46489)

1шт.

17

AT213613

Screw

4шт.

18

4506416

O-Ring

15.800 X 2.400 mm (0.622" X 3/32") (SUB FOR TH102561)

1шт.

19

A852333

Elbow Fitting

(SUB FOR TH101047) (SUB FOR 4154671)

1шт.

19A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

24

19M7938

Cap Screw

M10 X 20

1шт.

12M7066

Lock Washer

10 mm

1шт.

25

19M7576

Screw

M10 X 30 (SUB FOR J781030)

2шт.

27

4200469

Adapter Fitting

(SUB FOR TH108400)

1шт.

27A

4506418

O-Ring

17.800 X 2.400 mm (0.701" X 3/32") (SUB FOR U46489)

1шт.

30

R50454

Clamp

(SUB FOR TH109445 OR 4192034)

1шт.

31

P61632

Hydraulic Hose

1шт.

32

4200472

Elbow Fitting

(SUB FOR TH111301)

1шт.

32A

M800650

Packing

1шт.

34

A852333

Elbow Fitting

(SUB FOR TH101047) (SUB FOR 4154671)

1шт.

34A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

35

A852333

Elbow Fitting

(SUB FOR TH101047 ) (SUB FOR 4154671)

1шт.

35A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

37

R73384

Clamp

(SUB FOR TH108597 OR 4190253)

2шт.

38

19M7938

Cap Screw

M10 X 20

2шт.

12M7066

Lock Washer

10 mm

2шт.

39

AT186554

Filter Element

(SUB FOR AT214263)

1шт.

40

Filter

1шт.

41

TH105683

O-Ring

59.400 X 3.100 mm (2.339" X 0.122")

1шт.

42

4330227

Filter Head

(SUB FOR AT213834)

1шт.
