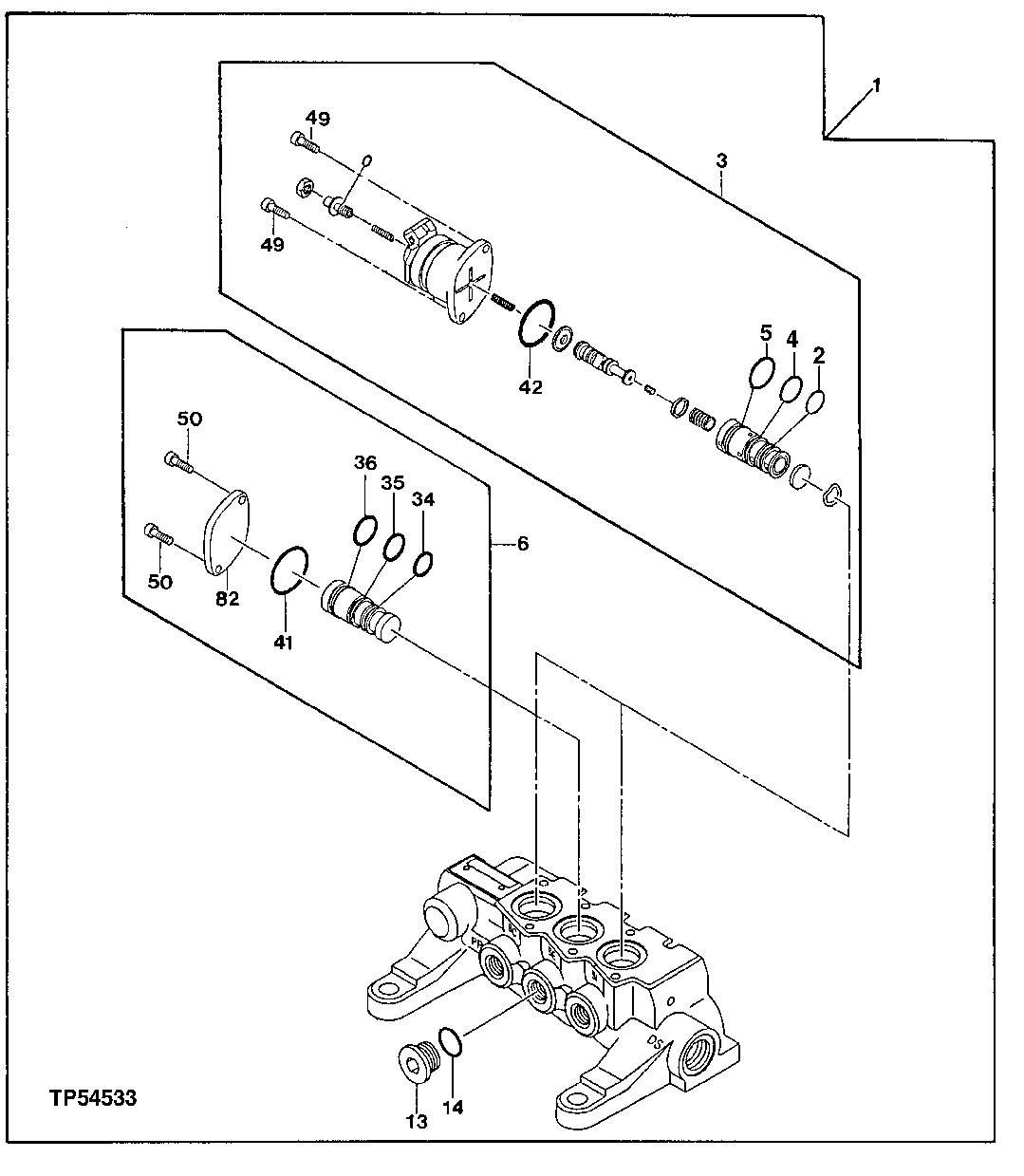

Запчасти John Deere 10 271 - Solenoid Valve 3360 Hydraulic System

1

4371946

Solenoid Valve

With Anti-Rust Protection (SUB FOR AP33488) (SUB FOR AP35558)

1шт.

2

4185600

O-Ring

(SUB FOR AT153902)

1шт.

3

0671301

Flow Control Hyd. Valve

(SUB FOR AT182233 OR AT215827)

2шт.

4

R99052

O-Ring

14.800 X 1.900 mm (0.583" X 0.075")

1шт.

5

4163873

O-Ring

(SUB FOR AT153904, 0408411 OR TH106081)

1шт.

6

9223892

Sleeve

(SUB FOR AT215828 OR 0671302)

1шт.

13

3097791

Plug

(SUB FOR AT215830 OR 0671304)

1шт.

14

M800650

Packing

1шт.

34

4185600

O-Ring

(SUB FOR AT153902 ) (SUB FOR AT153902)

1шт.

35

R99052

O-Ring

14.800 X 1.900 mm (0.583" X 0.075")

1шт.

36

4163873

O-Ring

(SUB FOR AT153904, 0408411 OR TH106081)

1шт.

41

0670802

O-Ring

(SUB FOR AT215825)

1шт.

42

4484114

O-Ring

1шт.

49

0387804

Screw

(SUB FOR AT215661)

2шт.

50

0387804

Screw

(SUB FOR AT215661)

2шт.

82

0671303

Cover

(SUB FOR AT215829)

1шт.
