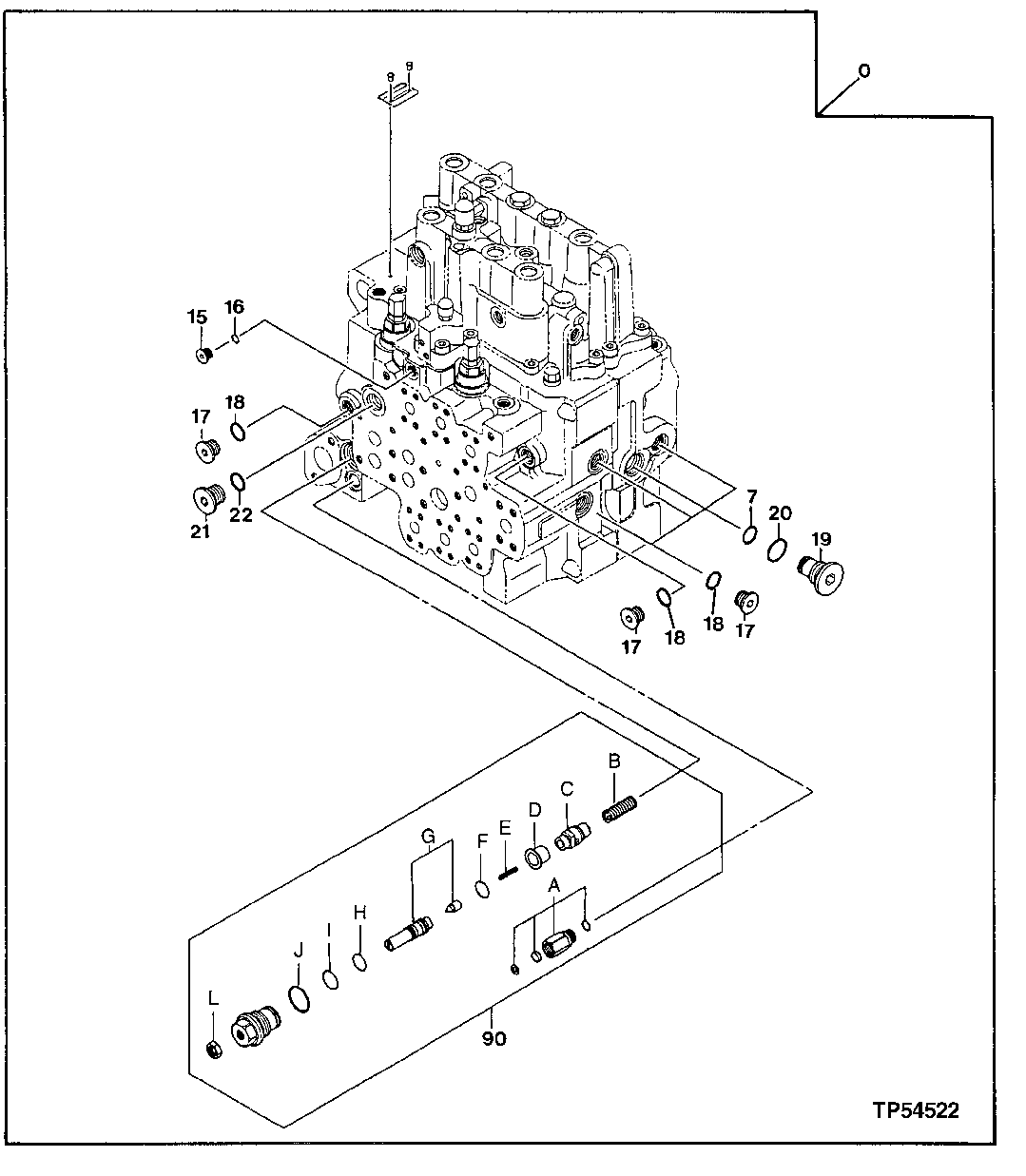

Запчасти John Deere 10 259 - Control Valve 3360 Hydraulic System

0

4383784

Hyd Actuated Control Valve

Additional Components Listed O n Following Pages SUB FOR AT183 674, SUB FOR AT34395 OR AP35555

1шт.

7

4506416

O-Ring

SUB FOR AT215736

1шт.

15

9134109

Drain Plug

SUB FOR AT215738 OR 0669503

1шт.

16

4506408

O-Ring

7.800 X 1.900 mm (0.307" X 0.075") SUB FOR TH101490

1шт.

17

0669504

Fitting Plug

SUB FOR AT215739

5шт.

18

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

5шт.

19

0669505

Fitting Plug

SUB FOR AT215740

1шт.

20

AT318035

O-Ring

SUB FOR 4506424, TH100055

1шт.

21

0669506

Fitting Plug

SUB FOR AT215741

1шт.

22

4506418

O-Ring

17.800 X 2.400 mm (0.701 " X 3/32") SUB FOR U46489

1шт.

90

4372677

Valve

SUB FOR AT215973

1шт.

90A

0669507

Adapter Fitting

SUB FOR AT215742

1шт.

90B

0669508

Spring

SUB FOR AT215743

1шт.

90C

0669509

Piston

SUB FOR AT215744

1шт.

90D

0669510

Valve Seat

SUB FOR AT215745

1шт.

90E

0669511

Spring

SUB FOR AT215746

1шт.

90F

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

90G

0669512

Valve Seat Insert

SUB FOR AT215747

1шт.

90H

CH10568

Packing

1шт.

90I

0976602

O-Ring

SUB FOR TH103574 OR AT264354 OR 4S00734

1шт.

90J

AT264347

O-Ring

SUB FOR TH100136, 4506428

1шт.

90L

2046464

Nut

SUB FOR TH109179 AND 0309439

1шт.
