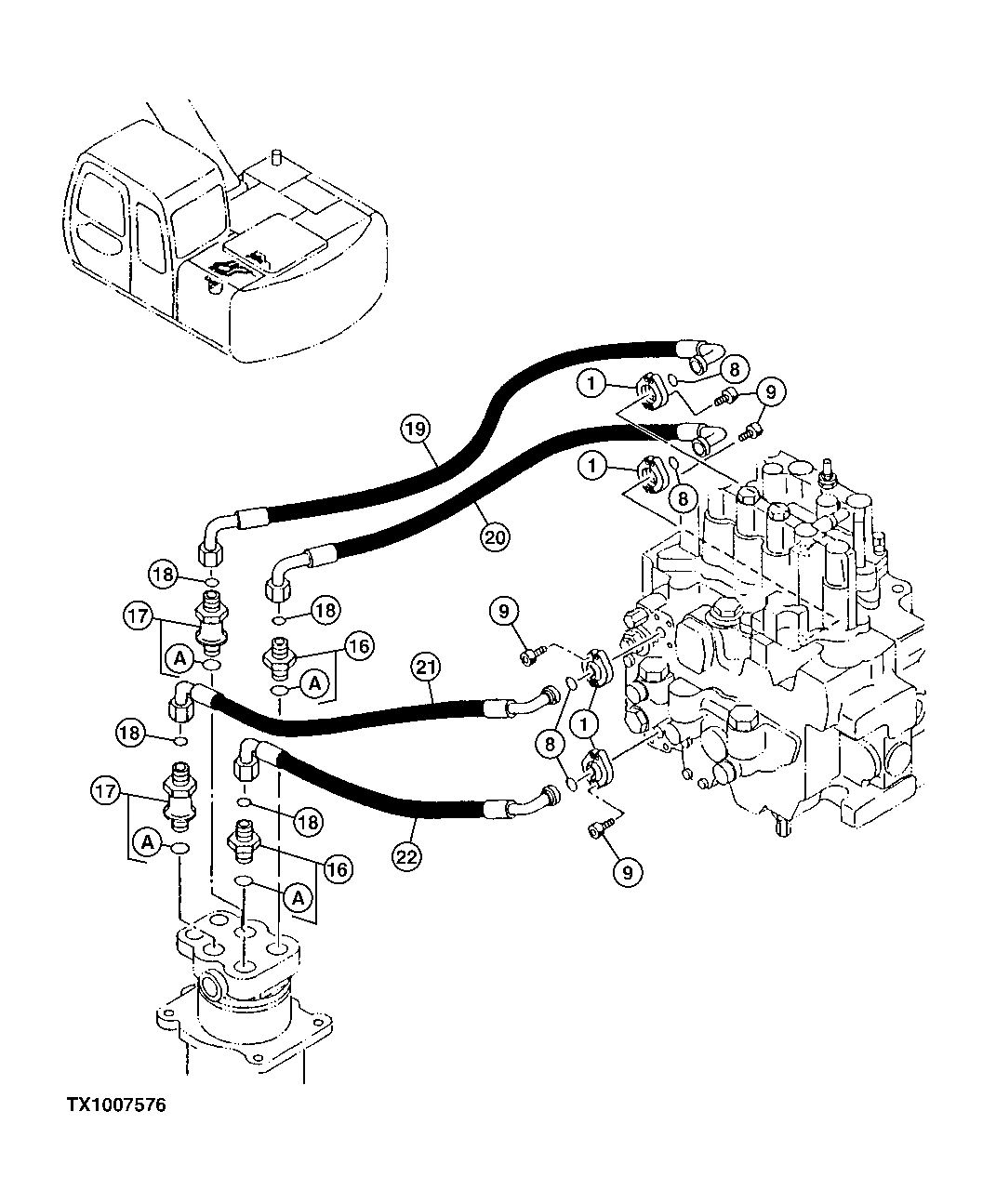

Запчасти John Deere 10 256 - Main Hydraulic Hoses 3360 Hydraulic System

1

4510173

Fitting

SUB FOR TH108341

8шт.

8

R69667

O-Ring

4шт.

9

19M7657

Screw

M8 X 25 SUB FOR P61954 OR J780825

16шт.

16

4188623

Fitting

SUB FOR TH110492

2шт.

16A

AT318035

O-Ring

SUB FOR 4506424, TH100055

1шт.

17

4188625

Fitting

SUB FOR P61750

2шт.

17A

AT318035

O-Ring

SUB FOR 4506424, TH100055

1шт.

18

T77857

O-Ring

4шт.

19

4203130

Hydraulic Hose

SUB FOR P61613

1шт.

20

FYA00013647

Hose

SUB FOR 4203129 AND P61612

1шт.

21

4192047

Hydraulic Hose

SUB FOR P61752

1шт.

22

FYA00013649

Hose

SUB FOR 4354467 AND P61631

1шт.
