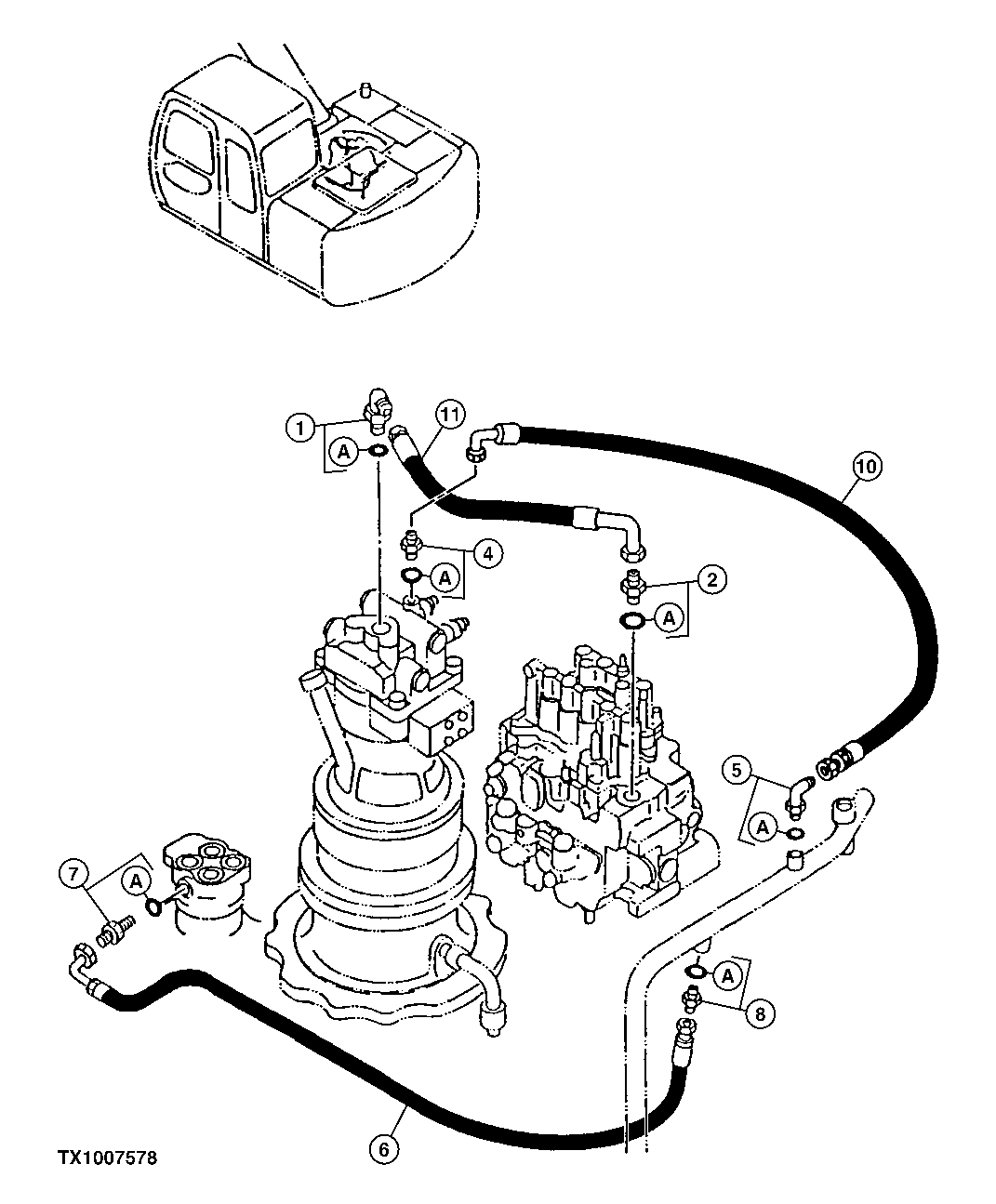

Запчасти John Deere 10 252 - Hydraulic Pump Drain Line 3360 Hydraulic System

1

4157562

Elbow Fitting

(SUB FOR TH109540)

1шт.

1A

AT318035

O-Ring

(SUB FOR 4506424, TH100055)

1шт.

2

A853166

Adapter Fitting

(SUB FOR AT107392 OR 4189619)

1шт.

2A

AT318035

O-Ring

(SUB FOR 4506424, TH100055)

1шт.

4

4200466

Adapter Fitting

(SUB FOR TH108320)

1шт.

4A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

5

A852333

Elbow Fitting

(SUB FOR TH101047 ) (SUB FOR 4154671)

1шт.

5A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

6

4400654

Hydraulic Hose

(SUB FOR AP35708)

1шт.

7

4221290

Adapter Fitting

(SUB FOR AT131902)

1шт.

7A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

8

X8-10F5OX

Adapter Fitting

(SUB FOR TH101006)

1шт.

8A

4506418

O-Ring

17.800 X 2.400 mm (0.701" X 3/32") (SUB FOR U46489)

1шт.

10

P61629

Hydraulic Hose

1шт.

11

P61616

Hydraulic Hose

1шт.
