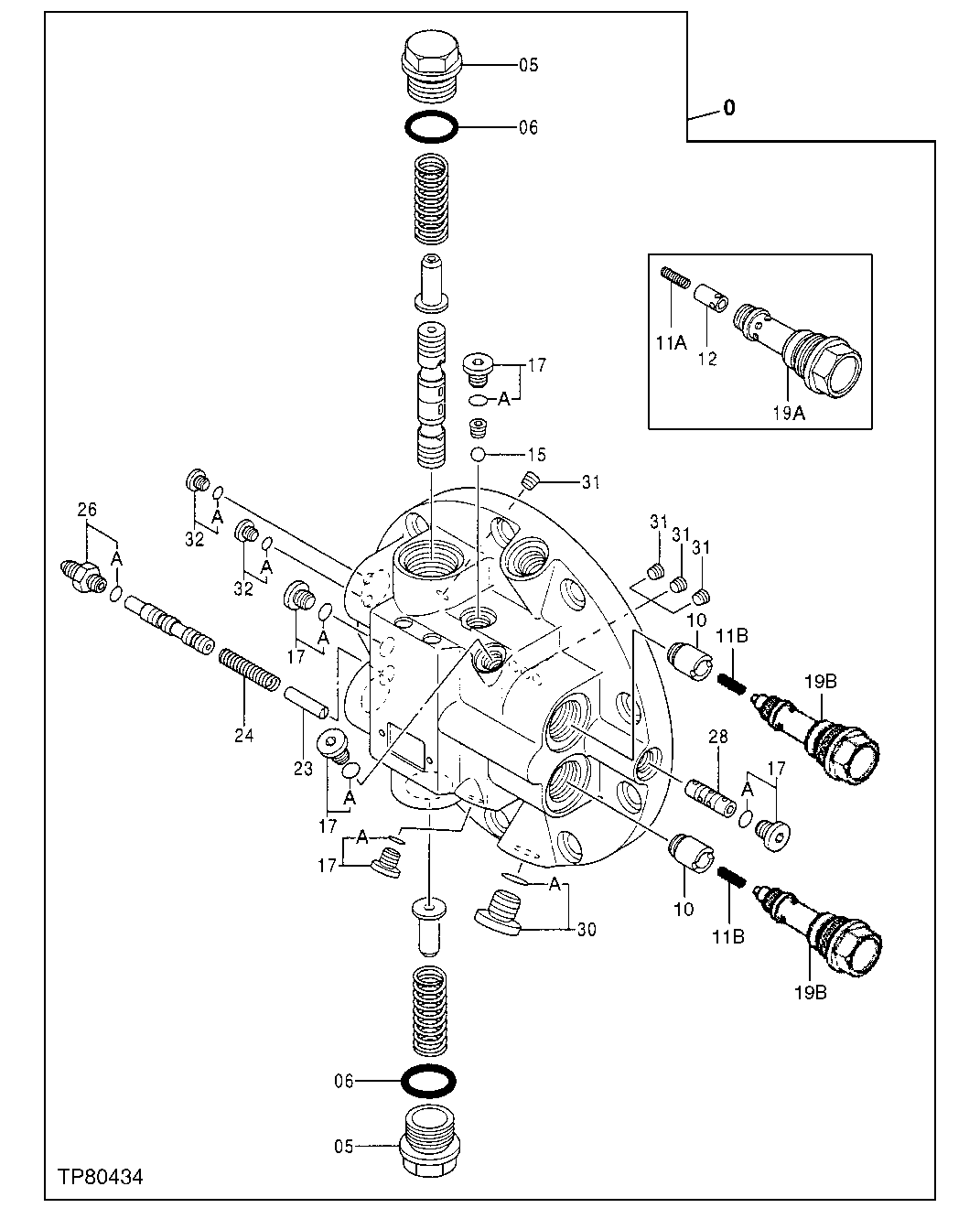

Запчасти John Deere 10 15 - Brake Valve 0260 Axles, Diff. & Susp. Sys. Hyd

0

9148471

Flow Control Hyd. Valve

(SUB FOR AT216010)

1шт.

5

4229631

Drain Plug

(SUB FOR TH112085)

2шт.

6

TH101926

O-Ring

28.700 X 3.500 mm (1.130" X 0.138")

2шт.

10

4300918

Poppet

(SUB FOR AT200524)

2шт.

11A

4272413

Compression Spring

(SUB FOR AT200446)

2шт.

11B

4383067

Spring

(SUB FOR AT250663)

2шт.

12

Guide

( AT200447 NLA) (SUB AT190808 AND AT250663)

2шт.

15

R26552

Ball

7.938 mm (5/16")

1шт.

17

9134110

Fitting

(SUB FOR AT203649)

5шт.

17A

M800650

Packing

1шт.

19A

Relief Valve

( AT216009 NLA) (SUB AT190808 AND AT250663)

2шт.

19B

9159923

Pressure Relief Valve

(SUB FOR AT190808)

2шт.

23

4281767

Stop

(SUB FOR AT154354)

1шт.

24

4297257

Compression Spring

(SUB FOR AT159500)

1шт.

26

4368621

Adapter Fitting

(SUB FOR AT215953)

1шт.

26A

M800650

Packing

1шт.

28

4312685

Valve Spool

(SUB FOR AT203655)

1шт.

30

9134112

Fitting Plug

(SUB FOR AT203657)

1шт.

30A

4506418

O-Ring

17.800 X 2.400 mm (0.701" X 3/32") (SUB FOR U46489)

1шт.

31

15H560

Pipe Plug

1/16"

4шт.

32

9134109

Drain Plug

(SUB FOR AT203656)

2шт.

32A

4506408

O-Ring

7.800 X 1.900 mm (0.307" X 0.075") (SUB FOR TH101490)

1шт.
