Запчасти John Deere 10 229 - Ditch Cleaning Bucket 3302 Bucket With Teeth

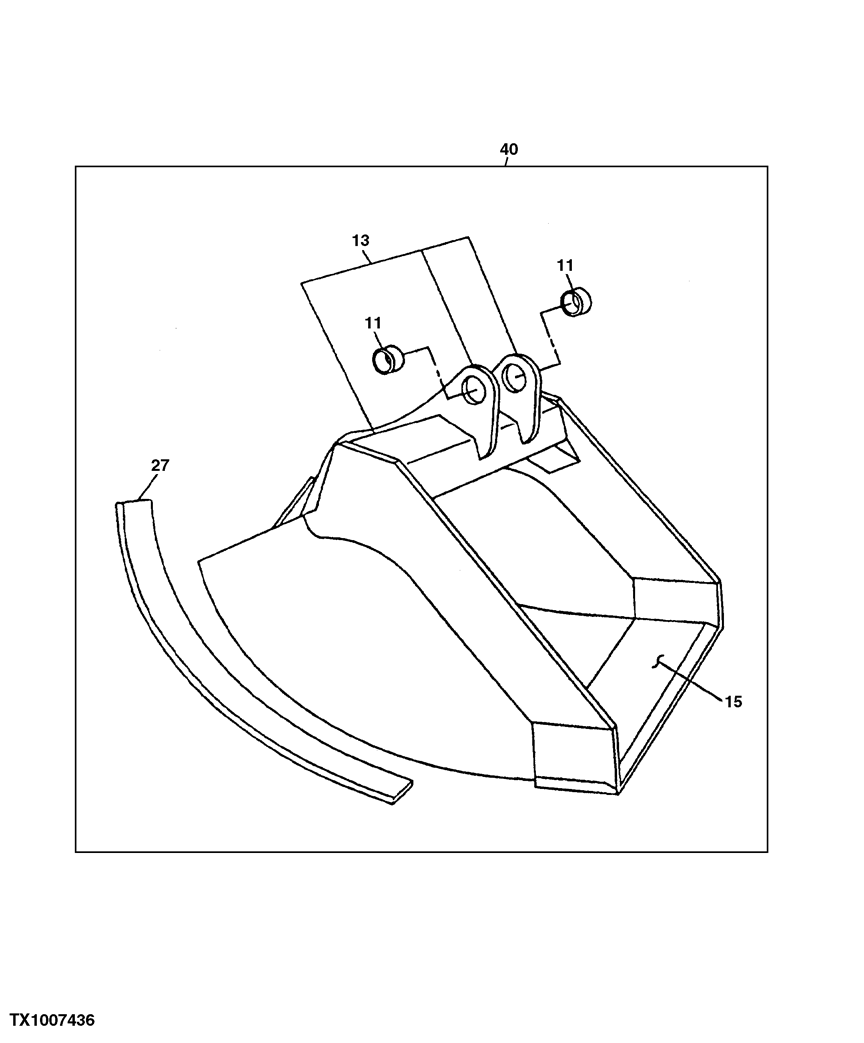

Схема запчастей John Deere 10 - 229 - Ditch Cleaning Bucket 3302 Bucket With Teeth

Артикул

Название

Примечание

Количество

11

TH108649

Bushing

2шт.

13

C610778

Pivot

(F) Bucket Ear Blank Assembly

1шт.

15

AT131089

Dura-Max Cutting Edge

(CUT TO LENGTH)

1шт.

27

300292

Bar

(F) Wear Strip

4шт.

40

Excavator Bucket

(60in. - .90 CUBIC YARD), (SUB FOR (1) AT 131361 ) (SUB (1) AT339039)( AT332665 NLA)

1шт.

Выбрано товаров: 5
