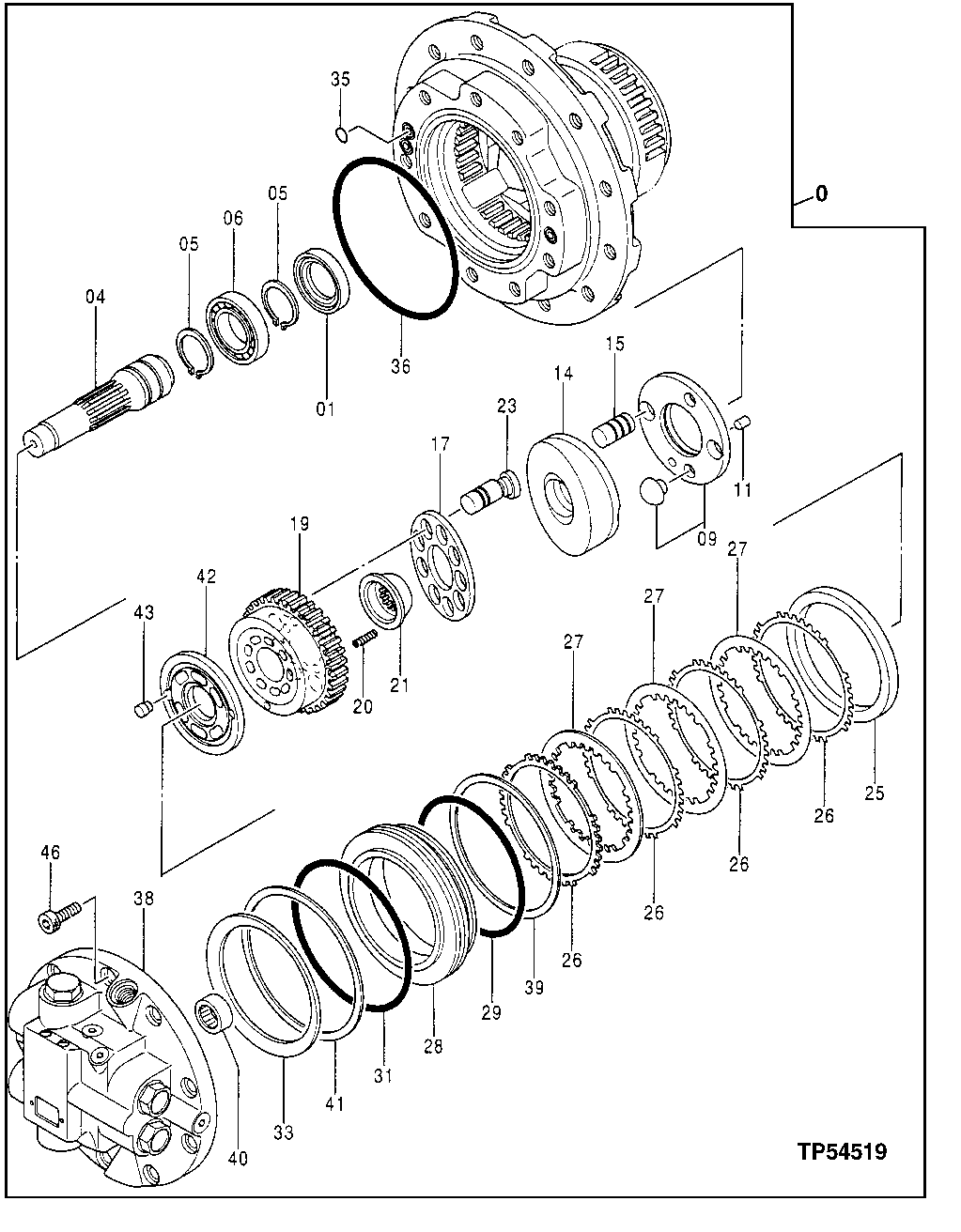

Запчасти John Deere 10 14 - Propel Motor Components 0260 Axles, Diff. & Susp. Sys. Hyd

0

9148472

Motor

NLA, (ORDER 9148472EX)

1шт.

9148472EX

Hydraulic Motor Reman

(REMAN FOR 9148472) (SUB FOR AT218388, AT183676)

1шт.

1

4613831

Seal

(SUB FOR AT154154 OR 4212841)

1шт.

4

3070443

Shaft

(SUB FOR AT215865)

1шт.

5

40M7047

Snap Ring

2шт.

6

4343872

Cylindrical Roller Bearing

(SUB FOR AT176317)

1шт.

9

9147525

Plate

(SUB FOR AT218365)

1шт.

11

4212842

Pin

10.008 X 14.122 mm (0.394" X 0.556") (SUB FOR AT154155)

1шт.

14

3072797

Plate

(SUB FOR AT215870)

1шт.

15

4416040

Piston

(SUB FOR AT154292 OR AT184567)

2шт.

17

3078124

Retainer

(SUB FOR AT154145)

1шт.

19

2028344

Rotor

(SUB FOR AT154067)

1шт.

20

4312681

Compression Spring

(SUB FOR AT170466)

9шт.

21

3065176

Bushing

(SUB FOR AT165704)

1шт.

23

8060510

Piston

(SUB FOR AT176320)

9шт.

25

4332191

Spacer

(SUB FOR AT215892)

1шт.

26

3032432

Plate

(SUB FOR T107771)

4шт.

27

3043240

Plate

(SUB FOR AT154090)

3шт.

28

3076389

Piston

(SUB FOR AT190563 ) (SUB FOR A T215866, AT190564 AND AT190565)

1шт.

29

A811155

O-Ring

(USE WITH AT215866 PIS TON) (SUB FOR AT215657)

1шт.

4372710

O-Ring

(USE WITH AT190563 PIS TON) (SUB FOR AT190564)

1шт.

31

4311391

O-Ring

(USE WITH AT215866 PIS TON) (SUB FOR AT215882)

1шт.

4372711

O-Ring

(USE WITH AT190563 PIS TON) (SUB FOR AT190565)

1шт.

33

3043242

Disk Spring

(SUB FOR AT154091)

1шт.

35

T111819

O-Ring

14.800 X 2.400 mm (0.583" X 3/32")

3шт.

36

4244542

O-Ring

(SUB FOR AT154175)

1шт.

38

9148471

Flow Control Hyd. Valve

Brake (SUB FOR AT216010)

1шт.

39

4361865

Back-Up Ring

(SUB FOR AT215943)

1шт.

40

AT154167

Needle Bearing

1шт.

41

4311393

Back-Up Ring

(SUB FOR AT215883)

1шт.

42

3047922

Plate

(SUB FOR AT154097)

1шт.

43

4271350

Pin

(SUB FOR AT154313)

2шт.

46

19M8490

Screw

M16 X 40

9шт.
