Запчасти John Deere 10 226 - Heavy Duty Bucket 3302 Bucket With Teeth

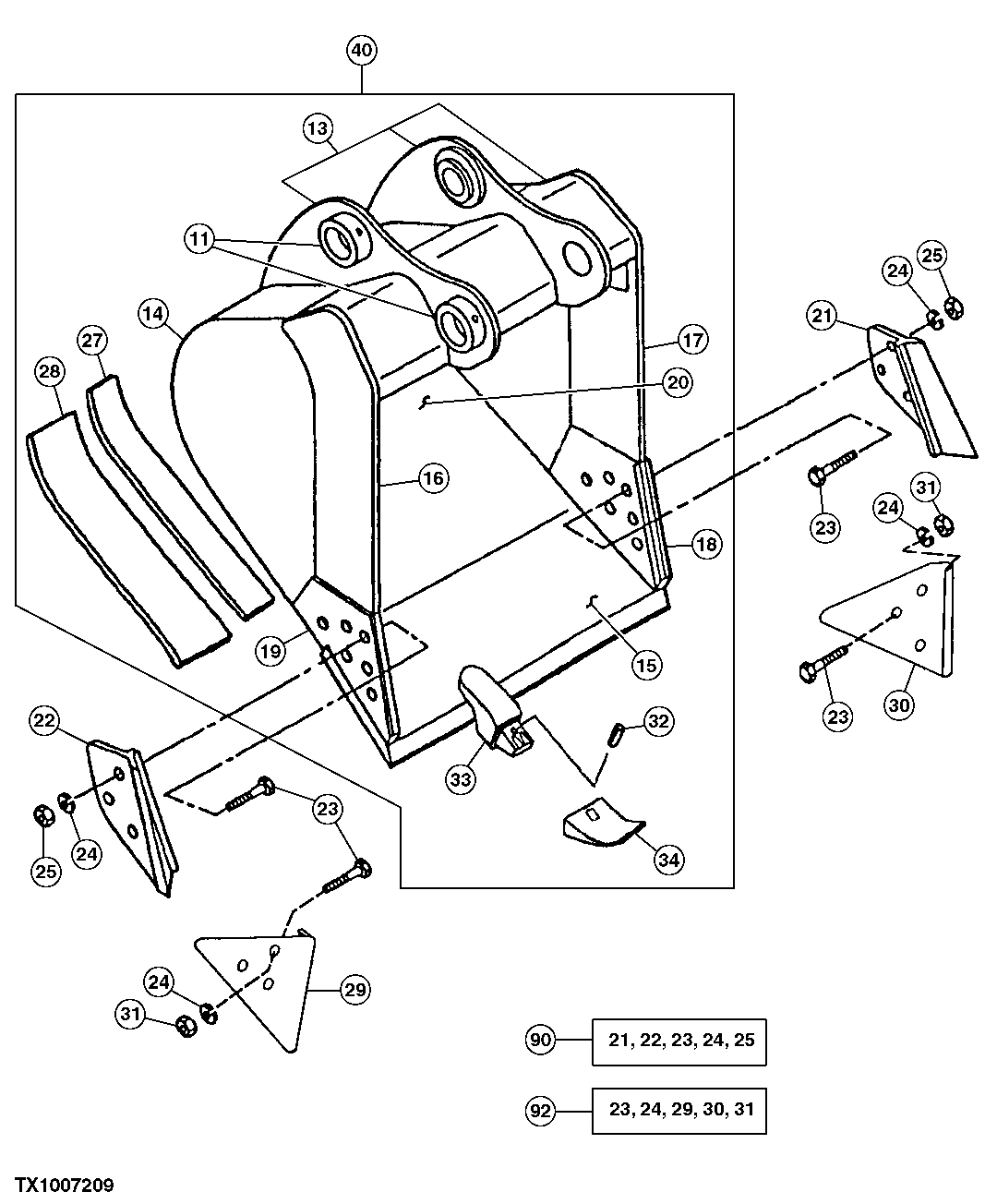

Схема запчастей John Deere 10 - 226 - Heavy Duty Bucket 3302 Bucket With Teeth

Артикул

Название

Примечание

Количество

11

TH108649

Bushing

2шт.

13

C610778

Pivot

(F) Bucket Ear Blank Assembly

1шт.

14

607048

Plate

(F) (RH / LH)

2шт.

15

AT131081

Dura-Max Cutting Edge

(CUT TO LENGTH)

1шт.

16

304960

Vertical Cutter

(F) (UPPER) (RH)

1шт.

17

304961

Vertical Cutter

(F) (UPPER) (LH)

1шт.

18

304968

Vertical Cutter

(F) (LH)

1шт.

19

304967

Vertical Cutter

(F) (RH)

1шт.

20

604650

Moldboard

(F) (24in. BUCKET)

1шт.

604652

Moldboard

(F) (30in. BUCKET)

1шт.

604653

Moldboard

(F) (36in. BUCKET)

1шт.

21

Cutting Edge

(SUB AT131080)

1шт.

22

Cutting Edge

(SUB AT131080)

1шт.

23

09H1770

Bolt

7/8" X 2-1/2"

6шт.

24

12H245

Lock Washer

7/8"

6шт.

25

14H1077

Nut

7/8"

6шт.

27

304966

Bar

(F) Inner Wear

1шт.

28

306618

Bar

(F) Outer Wear

2шт.

29

Shroud

(SUB (1) AT167874) Wear

1шт.

30

Shroud

(SUB (1) AT167874) Wear

1шт.

31

14H1044

Nut

7/8"

6шт.

32

TP160L

Spring Pin

1шт.

33

T109X220

Bucket Tooth Adapter

1шт.

34

TF220

Tooth

1шт.

40

Excavator Bucket

(24in. - .50 CUBIC YARD), (SUB FOR (1) AT163577 ) (SUB (1) AT 339031)( AT332661 NLA) (4 TEETH )

1шт.

Excavator Bucket

(30in. - .64 CUBIC YARD), (SUB FOR (1) AT163578 ) (SUB (1) AT 339033)( AT332662 NLA) (4 TEETH )

1шт.

Excavator Bucket

(36in. - .78 CUBIC YARD), (SUB FOR (1) AT163579 ) (SUB (1) AT 339035)( AT332663 NLA) (5 TEETH )

1шт.

90

Kit

( AT131080 NLA)

1шт.

92

Kit

( AT167874 NLA)

1шт.

Выбрано товаров: 29
