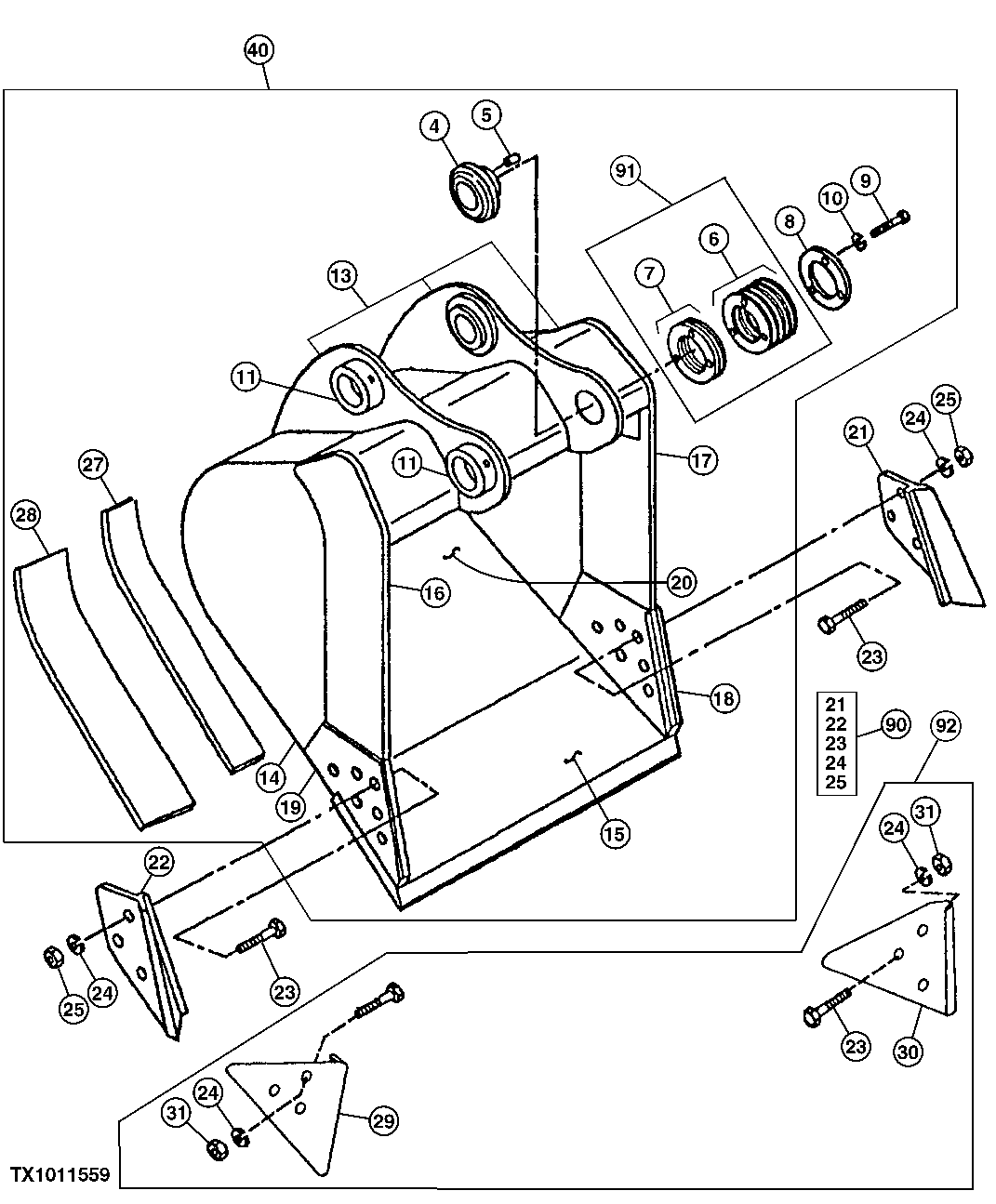

Запчасти John Deere 10 222 - General Purpose Bucket 3302 Bucket With Teeth

24

12H245

Lock Washer

(A) (C) 7/8"

6шт.

25

14H1077

Nut

(A) 7/8"

6шт.

27

304966

Bar

(F) Inner Wear

1шт.

28

306618

Bar

(F) Outer Wear

2шт.

29

Shroud

(C) Wear Shroud (SUB AT167874)

1шт.

30

Shroud

(C) Wear Shroud (SUB AT167874)

1шт.

31

14H1044

Nut

(C) 7/8"

6шт.

40

Excavator Bucket

(18in. - .34 CUBIC YARD), ( AT1635 68 NLA) ( AT163568 NLA) (AVAILABLE TOOTH ASSEMBLIES ON SEPARATE PAGE)

1шт.

Excavator Bucket

(24in. - .50 CUBIC YARD), (SUB (1 ) AT332657( AT163569 NLA)) (SUB AT 332657 ( AT163569 NLA) (AVAILABLE TOOTH ASSEMBLIES ON SEPARATE PAGE) )

1шт.

Excavator Bucket

(30in. - .64 CUBIC YARD), (SUB (1 ) AT332658 ( AT163570 NLA)) (SUB A T332658 ( AT163570 NLA) (AVAILABLE TOOTH ASSEMBLIES ON SEPARATE PAGE ))

1шт.

Excavator Bucket

(36in. - .78 CUBIC YARD), (SUB (1 ) AT332659 ( AT163571 NLA)) (SUB A T332659 ( AT163571 NLA) (AVAILABLE TOOTH ASSEMBLIES ON SEPARATE PAGE ))

1шт.

Excavator Bucket

(42in. - .79 CUBIC YARD), ( AT163573 NLA) ( AVAILABLE TOOTH ASSEMBLIES ON SEPARATE PAGE)

1шт.

Excavator Bucket

(42in. - .92 CUBIC YARD), (SUB (1 ) AT332660 ( AT163574 NLA)) (SUB A T332660 ( AT163574 NLA) (AVAILABLE TOOTH ASSEMBLIES ON SEPARATE PAGE ))

1шт.

Excavator Bucket

(48 INCH - 1.06 CUBIC YARD) ( AT163575 NLA) (AVAILABLE TOOTH ASSEMBLIES ON SEPARATE PAGE)

1шт.

90

End Bit

Includes All Parts Mar ked (A) ( AT131080 NLA)

1шт.

91

Shim Kit

Includes All Parts Marked (B)

1шт.

92

AT167874

Kit

Includes All Parts Mar ked (C) ( AT146242 NLA)

1шт.
