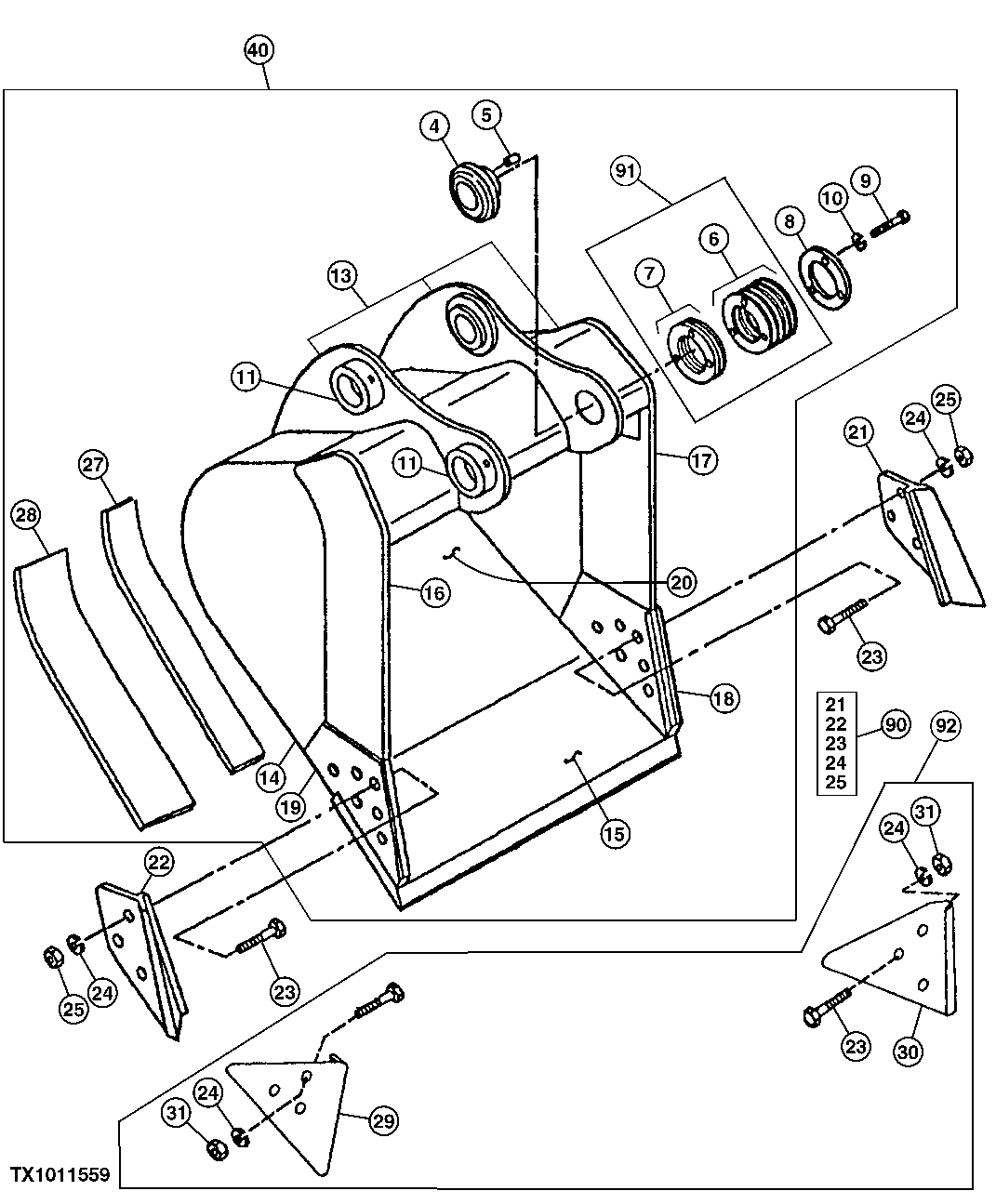

Запчасти John Deere 10 221 - General Purpose Bucket 3302 Bucket With Teeth

4

3028363

Bushing

(SUB FOR TH100346)

1шт.

5

4179109

Pin

(SUB FOR TH103619)

1шт.

6

4143635

Washer

(B) ( TH100348 NLA) (SUB AT146242)

7шт.

7

4143636

Shim

(B) ( TH100349 NLA) (SUB AT146242)

3шт.

8

Spacer

( TH100347 NLA)

1шт.

9

19M7404

Cap Screw

M14 X 40

3шт.

10

12H317

Lock Washer

9/16"

3шт.

11

TH108649

Bushing

2шт.

13

C610778

Pivot

(F) Bucket Ear Blank Assembly

1шт.

14

607048

Plate

(F) Right and Left Side

2шт.

304403

Plate

(F) Right and Left Side (FOR USE WITH AT1 63573 42 INCH - .79 CUBIC YARD BUCKET ONLY)

2шт.

15

AT131081

Dura-Max Cutting Edge

(CUT TO LENGTH)

1шт.

16

304954

Vertical Cutter

(F) Upper Right Side Cutter

1шт.

305331

Vertical Cutter

(F) Upper Right Side Cutter (FOR USE WITH A T163573 42 INCH - .79 CUBIC YARD BUCKET ONLY)

1шт.

17

304955

Vertical Cutter

(F) Upper Left Side Cutter

1шт.

307186

Vertical Cutter

(F) Upper Left Side Cutter (FOR USE WITH AT 163573 42 INCH - .79 CUBIC YARD BUCKET ONLY)

1шт.

18

304953

Vertical Cutter

(F) Left Side Cutter Insert

1шт.

19

304952

Vertical Cutter

(F) Right Side Cutter Insert

1шт.

20

604664

Moldboard

(F) (18in. BUCKET)

1шт.

604667

Moldboard

(F) (24in. BUCKET)

1шт.

604669

Moldboard

(F) (30in. BUCKET)

1шт.

604670

Moldboard

(F) (36in. BUCKET)

1шт.

604671

Moldboard

(F) (42in. - .79 CUBIC YARD BUCKET)

1шт.

604672

Moldboard

(F) (48in. BUCKET)

1шт.

21

Cutting Edge

(A) (SUB AT131080)

1шт.

22

Cutting Edge

(A) (SUB AT131080)

1шт.

23

09H1770

Bolt

(A) (C) 7/8" X 2-1/2"

6шт.
