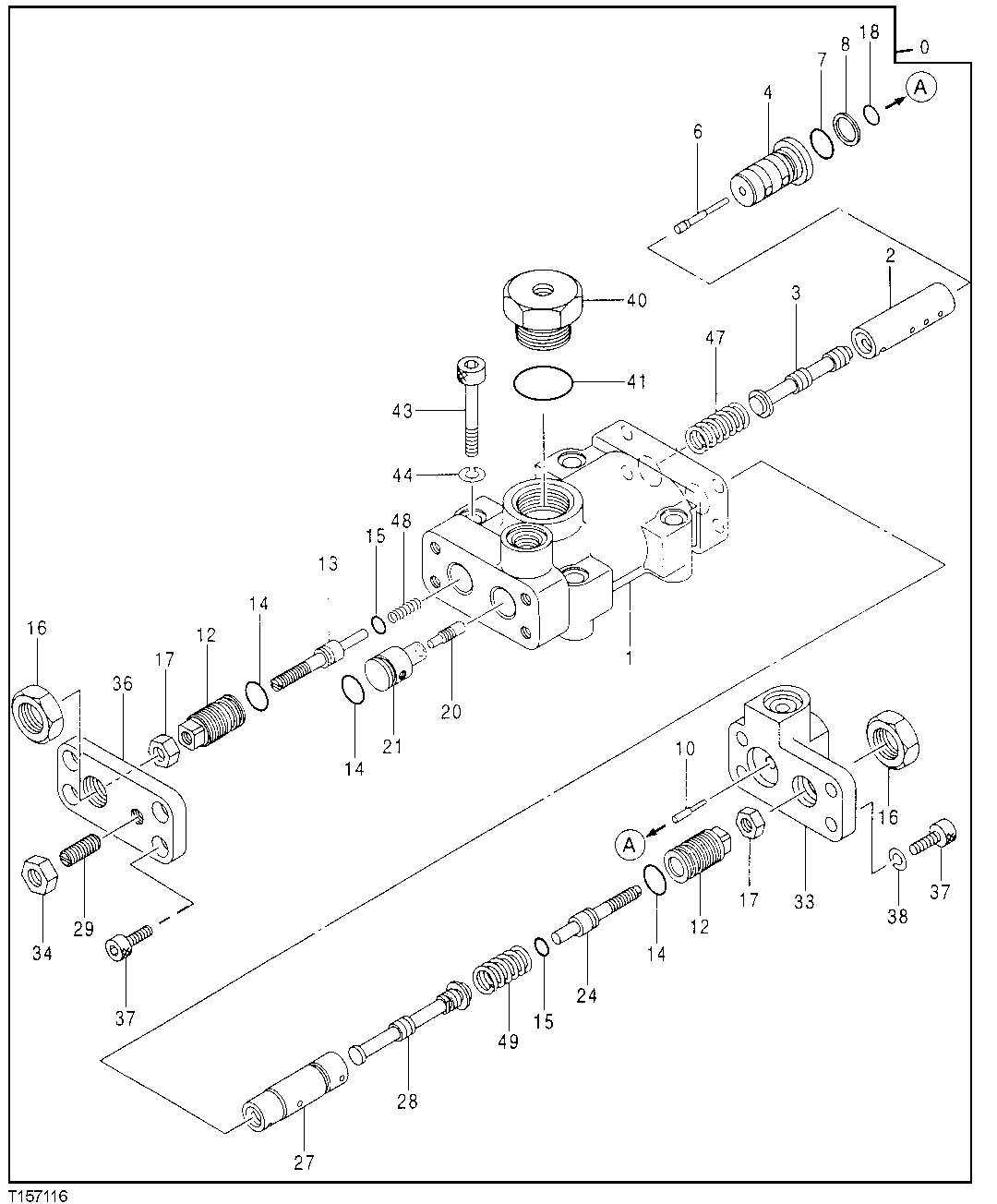

Запчасти John Deere 10 214 - Hydraulic Pump Regulator (Blade) 2160 Vehicle Hydraulics

0

9158023

Regulator

(SUB FOR AT183915)

1шт.

1

Housing

1шт.

2

4179155

Sleeve

(SUB FOR TH109892)

1шт.

3

4179156

Spool

(SUB FOR TH109893)

1шт.

4

4375722

Cylinder

(SUB FOR AT183916)

1шт.

6

4360590

Piston

(SUB FOR AT183917)

1шт.

7

TH102560

O-Ring

15.800 X 2.400 mm (0.622" X 3/32")

1шт.

8

4085607

Back-Up Ring

(SUB FOR TH102562)

1шт.

10

4360592

Piston

(SUB FOR AT183918)

1шт.

12

4179161

Stop

(SUB FOR TH109898)

2шт.

13

4368619

Stop

(SUB FOR AT214045)

1шт.

14

4342843

O-Ring

15.800 X 2.400 mm (0.622" X 3/32") (SUB FOR AT213892)

3шт.

15

4342841

O-Ring

8.800 X 1.900 mm (0.346" X 0.075") (SUB FOR AT213891)

2шт.

16

4068898

Nut

M20 (SUB FOR TH102567)

2шт.

17

14M7273

Nut

M8

2шт.

18

4297380

O-Ring

(SUB FOR AT183919)

1шт.

20

4179171

Piston

(SUB FOR TH109911)

1шт.

21

4179170

Cylinder

(SUB FOR TH109910)

1шт.

24

4347107

Stop

(SUB FOR AT213917)

1шт.

27

4358929

Sleeve

(SUB FOR AT215937)

1шт.

28

4346521

Valve Spool

(SUB FOR AT213912)

1шт.

29

22M7098

Set Screw

M10 X 25 (SUB FOR AT201005 OR 4265964)

1шт.

33

3077329

Cover

(SUB FOR AT183920)

1шт.

34

14M7274

Nut

M10

1шт.

36

4433327

Cover

(SUB FOR TH109913)

1шт.

37

19M8446

Screw

M8 X 20

8шт.

38

4514388

Spring Washer

8.200 mm (0.323") (SUB FOR TH101835)

4шт.

40

4179174

Fitting Plug

(SUB FOR TH109914)

1шт.

41

4342846

O-Ring

28.700 X 3.500 mm (1.130" X 0.13 8") (SUB FOR AT213893 OR 4342846)

1шт.

43

19M8339

Screw

M10 X 55

4шт.

44

12M7135

Lock Washer

10 mm (SUB FOR 12M6791)

4шт.

47

4194176

Compression Spring

(SUB FOR TH111263)

1шт.

48

4332878

Compression Spring

(SUB FOR AT215893)

1шт.

49

4350928

Compression Spring

(SUB FOR AT213951)

1шт.
