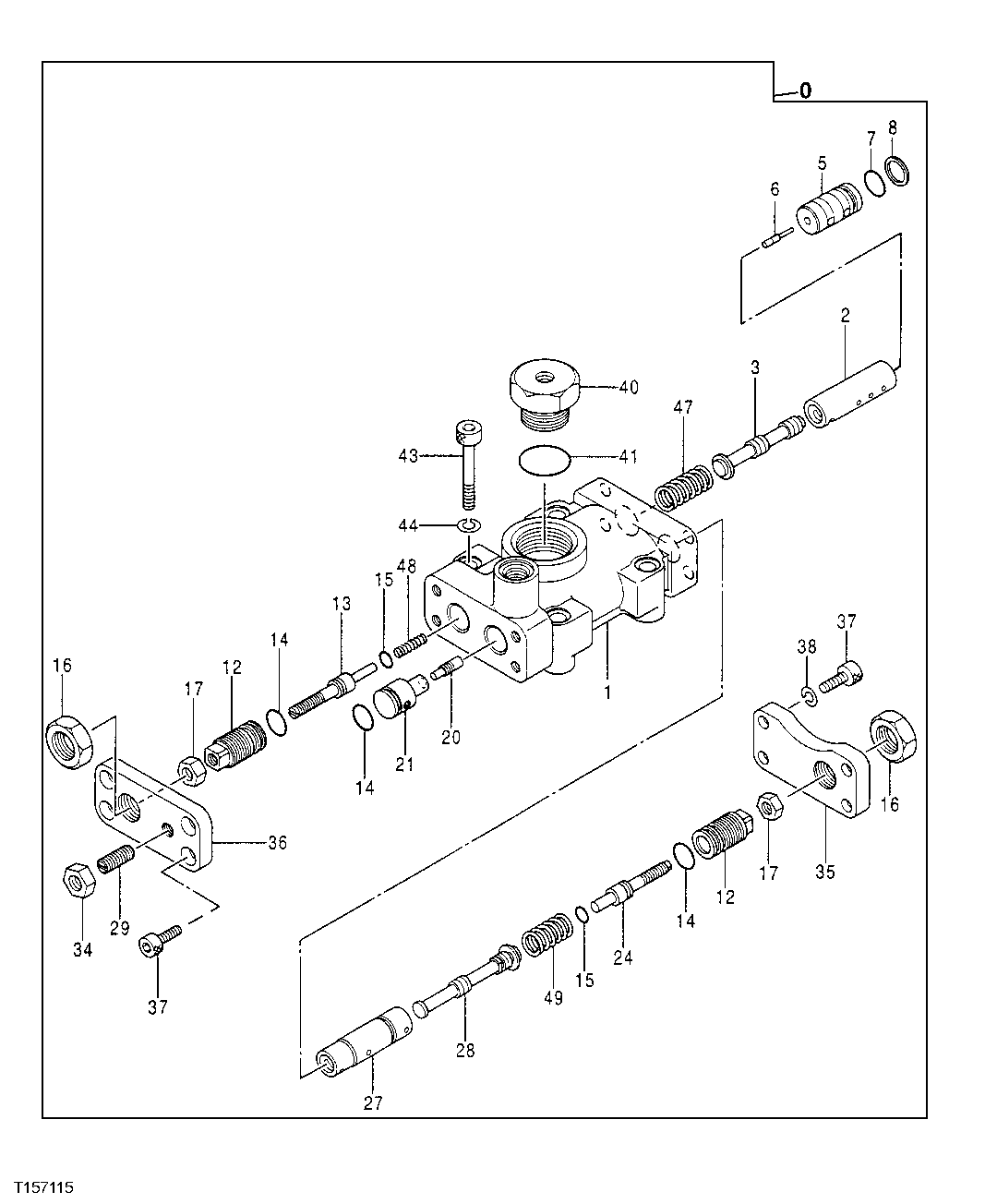

Запчасти John Deere 10 213 - Regulator 2160 Vehicle Hydraulics

0

9152594

Regulator

(SUB FOR AT218364)

1шт.

1

Housing

1шт.

2

4179155

Sleeve

(SUB FOR TH109892)

1шт.

3

4179156

Spool

(SUB FOR TH109893)

1шт.

5

4337245

Cylinder

(SUB FOR AT215899)

1шт.

6

4337258

Piston

(SUB FOR AT215900)

1шт.

7

TH102560

O-Ring

15.800 X 2.400 mm (0.622" X 3/32")

1шт.

8

4085607

Back-Up Ring

(SUB FOR TH102562)

1шт.

12

4179161

Stop

(SUB FOR TH109898)

2шт.

13

4368619

Stop

(SUB FOR TH109899)

1шт.

14

4342843

O-Ring

(SUB FOR AT213892)

3шт.

15

4342841

O-Ring

(SUB FOR AT213891)

2шт.

16

4068898

Nut

M20 (SUB FOR TH102567)

2шт.

17

14M7273

Nut

M8

2шт.

20

4179171

Piston

(SUB FOR TH109911)

1шт.

21

4179170

Cylinder

(SUB FOR TH109910)

1шт.

24

4347107

Stop

(SUB FOR AT213917)

1шт.

27

4358929

Sleeve

(SUB FOR AT215937)

1шт.

28

4346521

Valve Spool

(SUB FOR AT213912)

1шт.

29

22M7098

Set Screw

M10 X 25 (SUB FOR AT201005 OR 4265964)

1шт.

34

14M7274

Nut

M10

1шт.

35

4337215

Cover

(SUB FOR AT215898)

1шт.

36

4433327

Cover

(SUB FOR TH109913)

1шт.

37

19M8446

Screw

M8 X 20

8шт.

38

4514388

Spring Washer

(SUB FOR TH101835)

4шт.

40

4179174

Fitting Plug

(SUB FOR TH109914)

1шт.

41

4342846

O-Ring

(SUB FOR 4153108, APPL)

1шт.

43

19M8339

Screw

M10 X 55

4шт.

44

12M7135

Lock Washer

10 mm (SUB FOR 12M6791)

4шт.

47

4194176

Compression Spring

(SUB FOR TH111263)

1шт.

48

4332878

Compression Spring

(SUB FOR AT215893)

1шт.

49

4350928

Compression Spring

(SUB FOR AT213951)

1шт.
