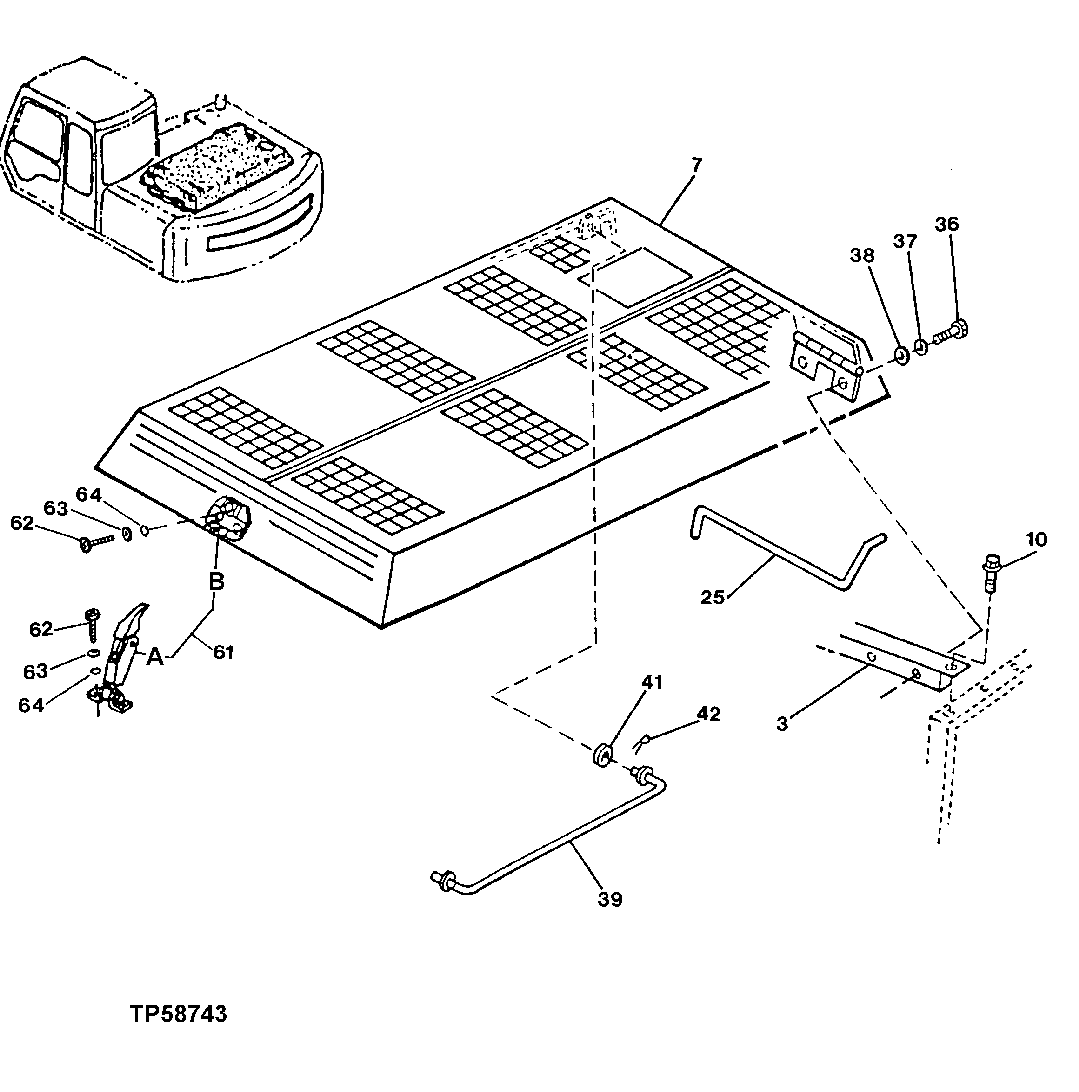

Запчасти John Deere 10 198 - Engine Cover 1910 Hood Or Engine Enclosure

3

P64277

Support

1шт.

7

AP34127

Hood

SUB AP35679

1шт.

AP35679

Hood

SUB FOR AP34127

1шт.

10

12M7066

Lock Washer

10 mm

2шт.

19M7402

Cap Screw

M10 X 25

2шт.

24M7028

Washer

10.500 X 20 X 2 mm

2шт.

25

3076671

Rod

SUB FOR P64280

1шт.

36

19M7402

Cap Screw

M10 X 25

4шт.

37

12M7066

Lock Washer

10 mm

4шт.

38

24M7101

Washer

11 X 34 X 3 mm

4шт.

39

P64276

Rod

1шт.

41

24M7047

Washer

13 X 24 X 2.500 mm

1шт.

42

11M7015

Cotter Pin

3.200 X 25 mm SUB FOR R50647 OR 11H236

1шт.

61

4361455

Catch

SUB FOR TH108769

1шт.

AT194969

Key

Not Illustrated H800; SUB FOR AT147803

1шт.

61A

3040904

Catch

SUB FOR AT126162

1шт.

61B

3021131

Anchor

SUB FOR TH102247

1шт.

62

19M7881

Screw

M8 X 20

4шт.

63

Washer

12M7065 NLA

4шт.

64

24M7055

Washer

8.400 X 16 X 1.600 mm

4шт.
