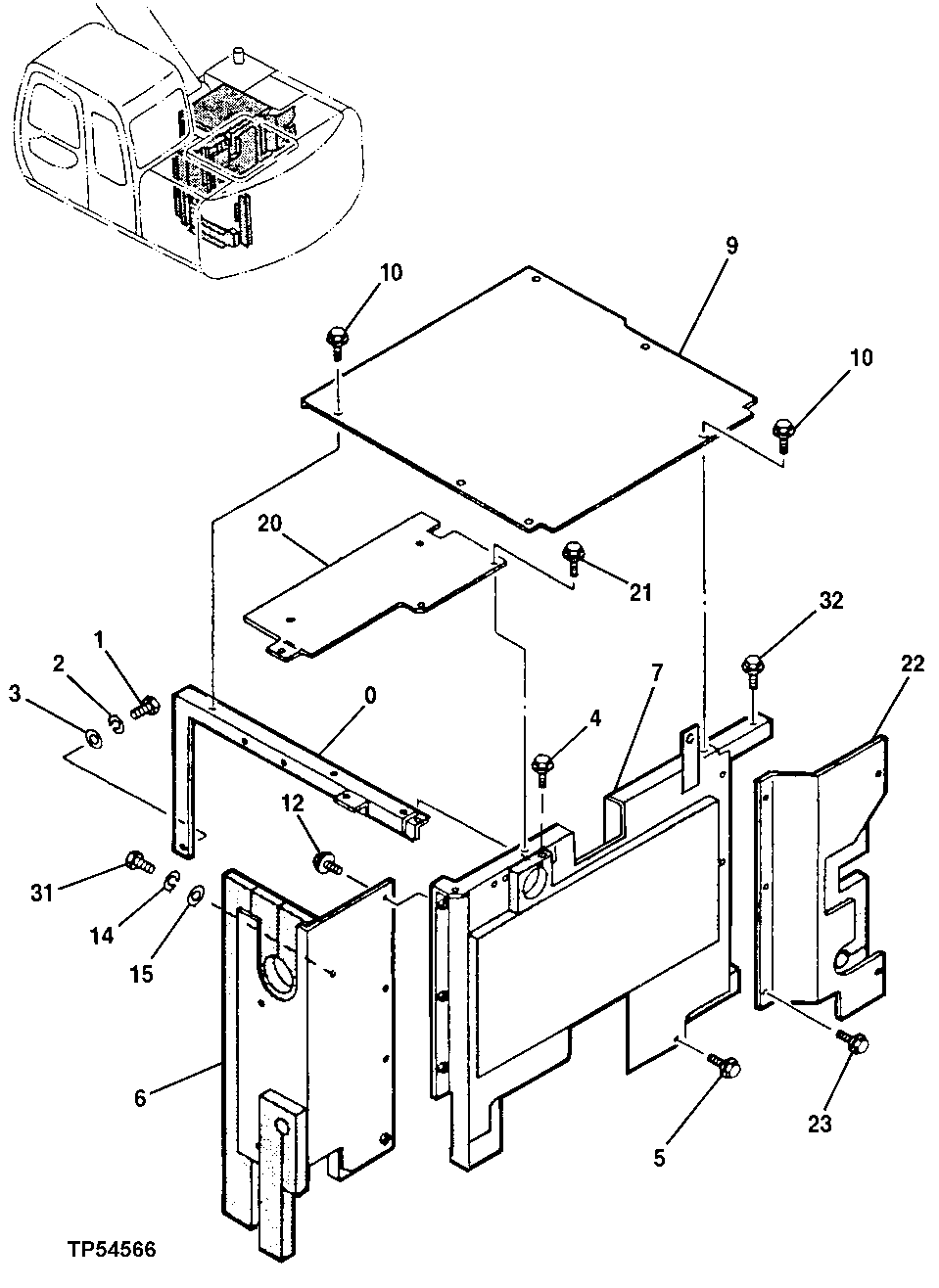

Запчасти John Deere 10 197 - Cover 1910 Hood Or Engine Enclosure

0

AP35591

Support

(SUB FOR AP33526)

1шт.

1

19M7402

Cap Screw

M10 X 25

1шт.

2

12M7066

Lock Washer

10 mm

1шт.

3

24M7028

Washer

10.500 X 20 X 2 mm

1шт.

4

19M8324

Cap Screw

M10 X 16

2шт.

12M7066

Lock Washer

10 mm

2шт.

24M7028

Washer

10.500 X 20 X 2 mm

2шт.

5

19M7402

Cap Screw

M10 X 25

1шт.

12M7066

Lock Washer

10 mm

1шт.

24M7101

Washer

11 X 34 X 3 mm

1шт.

6

AP35583

Cover

1шт.

7

AP35571

Cover

(SUB FOR AP34137)

1шт.

9

AP35592

Cover

(SUB FOR AP34133)

1шт.

10

19M7402

Cap Screw

M10 X 25

6шт.

12M7066

Lock Washer

10 mm

6шт.

24M7101

Washer

11 X 34 X 3 mm

6шт.

12

19M7402

Cap Screw

M10 X 25

3шт.

12M7066

Lock Washer

10 mm

3шт.

24M7101

Washer

11 X 34 X 3 mm

3шт.

14

12H294

Lock Washer

5/8"

2шт.

15

24M7053

Washer

17 X 30 X 3 mm

2шт.

20

AP34134

Cover

1шт.

21

19M7402

Cap Screw

M10 X 25

4шт.

12M7066

Lock Washer

10 mm

4шт.

24M7028

Washer

10.500 X 20 X 2 mm

4шт.

22

AP34131

Cover

1шт.

23

19M7402

Cap Screw

M10 X 25

3шт.

12M7066

Lock Washer

10 mm

3шт.

24M7101

Washer

11 X 34 X 3 mm

3шт.

31

19M8035

Cap Screw

M16 X 35

2шт.

32

19M7402

Cap Screw

M10 X 25

1шт.

12M7066

Lock Washer

10 mm

1шт.

24M7028

Washer

10.500 X 20 X 2 mm

1шт.
