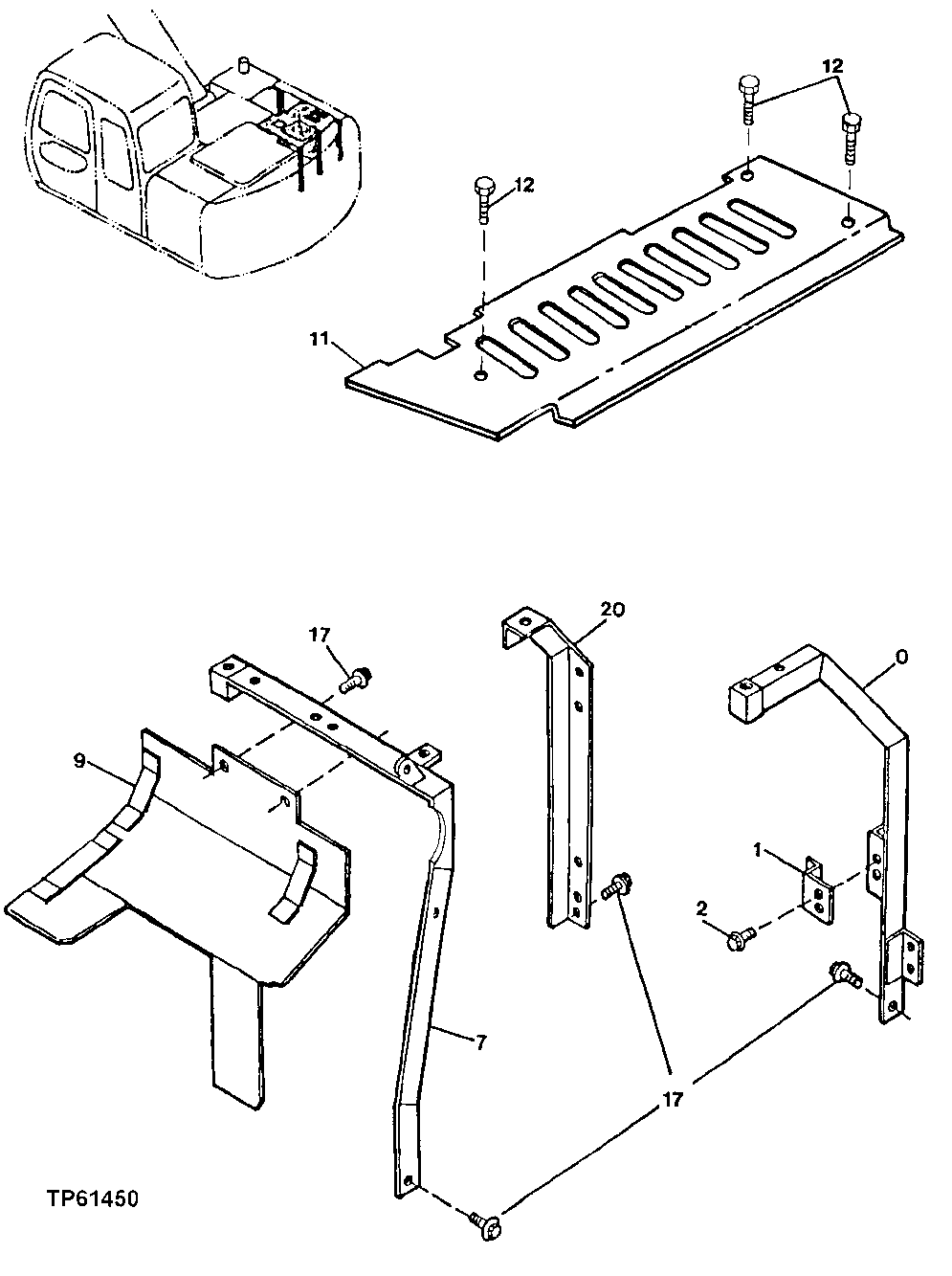

Запчасти John Deere 10 196 - Cover 1910 Hood Or Engine Enclosure

0

AP34508

Support

1шт.

1

4257087

Stop

(SUB FOR AT154930)

1шт.

2

19M7662

Cap Screw

M10 X 30

2шт.

12M7058

Lock Washer

12 mm (SUB FOR 12M7067)

2шт.

24M7346

Washer

11 X 20 X 2 mm

2шт.

7

AP34509

Support

1шт.

9

AP34510

Cover

1шт.

11

P64264

Cover

1шт.

12

19M7662

Cap Screw

M10 X 30

3шт.

12M7058

Lock Washer

12 mm (SUB FOR 12M7067)

3шт.

24M7346

Washer

11 X 20 X 2 mm

3шт.

17

12M7066

Lock Washer

10 mm

9шт.

19M7402

Cap Screw

M10 X 25

9шт.

24M7028

Washer

10.500 X 20 X 2 mm

9шт.

20

3072455

Support

(SUB FOR P60498)

1шт.
