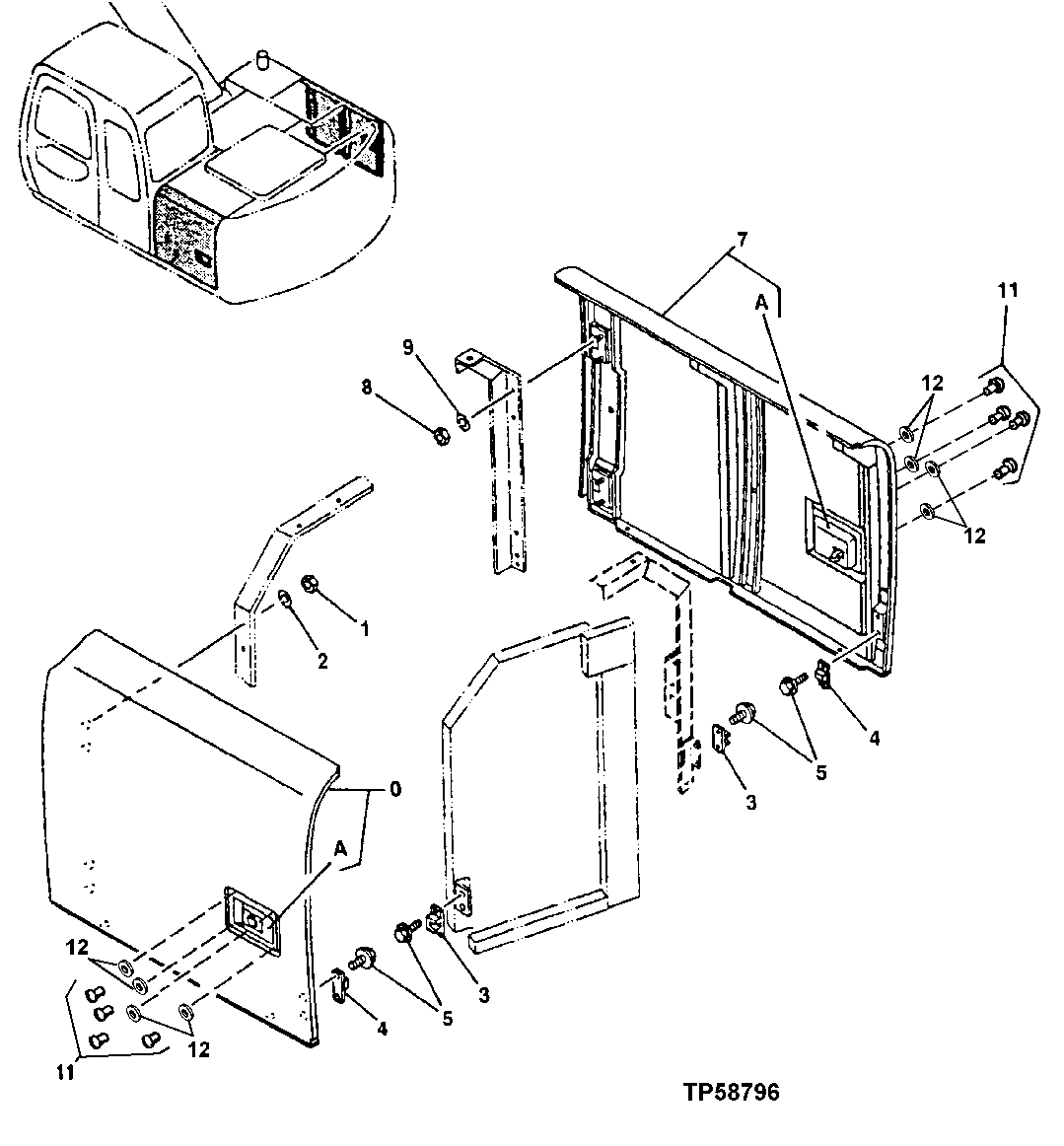

Запчасти John Deere 10 195 - Cover 1910 Hood Or Engine Enclosure

0

AP34175

Door

1шт.

0A

AT166994

Latch

1шт.

1

14M7274

Nut

M10

4шт.

2

12M7066

Lock Washer

10 mm

4шт.

3

4175253

Bracket

(SUB FOR AT318015 OR AT154915)

2шт.

4

4175254

Stop

(SUB FOR AT154916)

2шт.

5

12M7006

Lock Washer

6 mm

8шт.

24M7293

Washer

6.500 X 13 X 1.600 mm

8шт.

19M7923

Cap Screw

M6 X 12 (SUB FOR 19M6614)

8шт.

7

AP34176

Door

1шт.

7A

AT166994

Latch

1шт.

8

14M7274

Nut

M10

4шт.

9

12M7066

Lock Washer

10 mm

4шт.

11

M63200

Rivet

4.775 mm (3/16")

8шт.

12

24M7138

Washer

5.300 X 15 X 1 mm

8шт.
