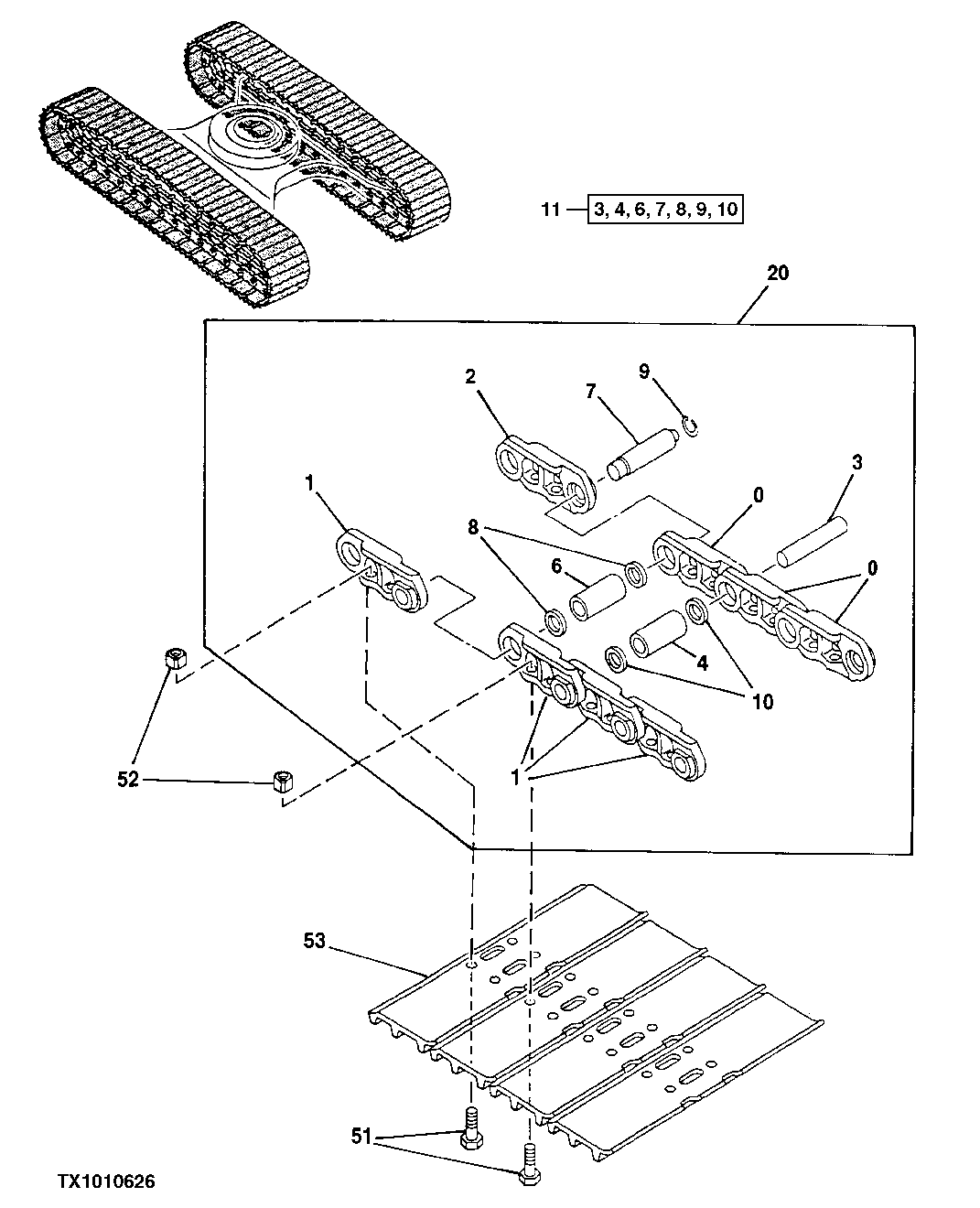

Запчасти John Deere 10 11 - TRACK LINK CHAIN (175/172MM LONG PINS) (M SEAL) (SN XXXXXX- ) (XXXXXX - ) 0130 Track Systems

0

T212009

Strutted LINK-RH

Each Unit (SUB FOR AT185783)

40шт.

1

T212015

Track Link

Each Unit (SUB FOR AT185784)

41шт.

2

T212029

Master Track LINK-RH

Each Unit (SUB FOR AT185785)

1шт.

3

T212040

Track Pin

175mm LGTH, Each Side (SUB FOR AT185786)

40шт.

4

T212042

Track Bushing

Each Side (SUB FOR AT180441 OR T191229)

40шт.

6

T212043

Master Track Bushing

Each Side Master (SUB F OR AT180442 OR T191230)

1шт.

7

T212044

Master Track Pin

172mm LGTH, Each Side (SUB FOR AT185788)

1шт.

8

T212045

Spacer

Each Side (SUB FOR AT185789)

2шт.

9

T212046

Snap Ring

Each Side (SUB FOR 41926 65, TH108899 OR DH400631)

1шт.

10

T212048

Seal

Each Side (M SEAL DESI GN) (SUB FOR AT185787)

80шт.

11

AT324665

Pin & Bushing Kit

(SUB FOR AT185795)

1шт.

20

AT317661

Track Chain W/O Shoes

700mm, One Each Side Of Unit (SUB FOR AT185782)

2шт.

51

T212050

Track Bolt

Each Side Of Unit (SUB FOR AT180444)

164шт.

52

T212051

Nut

Each Side Of Unit (SUB FOR AT180443)

164шт.

53

AT180445

Open Center 3 Bar Shoe

500G, Each Side Of Unit

41шт.

AT180446

Open Center 3 Bar Shoe

600G, Each Side Of Unit

41шт.

AT180447

Open Center 3 Bar Shoe

700G, Each Side Of Unit

41шт.
