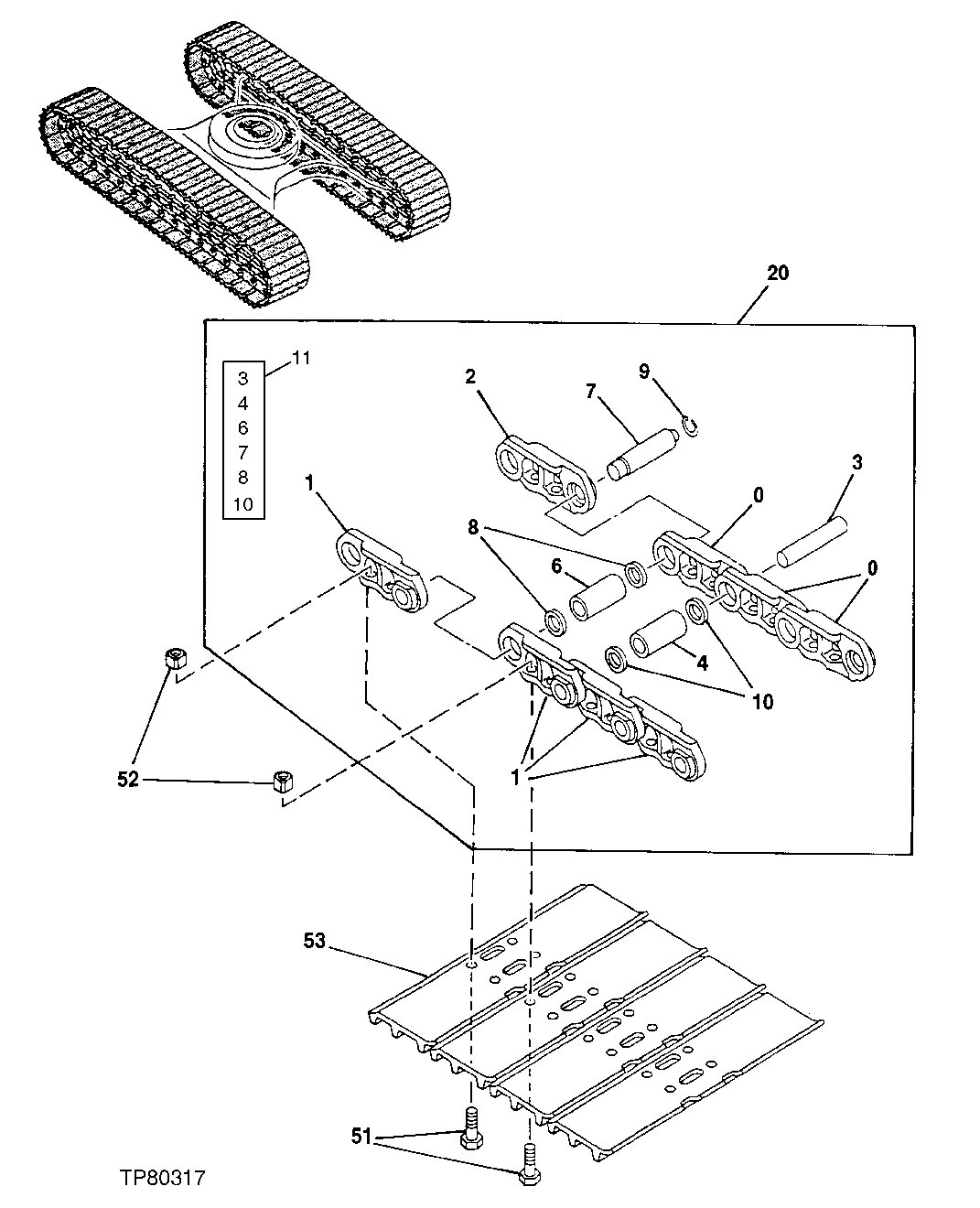

Запчасти John Deere 10 10 - TRACK LINK CHAIN (170/167MM LONG PINS) (SERIAL NO. XXXXXX-XXXXXX) (XXXXXX - XXXXXX) 0130 Track Systems

0

Track Link

Right Side (SUB FOR AT180433 (EACH SIDE) ( 1021040 NLA))

40шт.

T212009

Strutted LINK-RH

(SUB FOR 1021040, 1026945 OR A T185783 ) (USE WITH T212015, T2 12040, (2) T212048 AND T212042)

40шт.

1

AT180434

Strutted LINK-LH

Each Side

41шт.

Strutted LINK-LH

(SUB FOR AT185784)(EAC H SIDE) ( 1021041 NLA)

40шт.

T212015

Strutted LINK-LH

(SUB FOR 1021041, 1026946 OR AT185 784 ) (USE WITH T212009, T212040, ( 2) T212048 AND T212042)(EACH SIDE)

40шт.

2

Pin

Master Each Side ( 434568 2 NLA) (SUB FOR AT180435)

1шт.

T212029

Master Track LINK-RH

(USE WITH T212015, T212048, T212045 ) (SUB FOR AT185785)

1шт.

3

4345321

Pin

170mm LGTH, Each Side (SUB FOR AT180436)

40шт.

4

T212042

Track Bushing

Each Side (SUB FOR AT180441 OR T191229)

40шт.

6

T212043

Master Track Bushing

Each Side Master (SUB F OR AT180442 OR T191230)

1шт.

7

4345326

Pin

167mm LGTH, Master (SUB FOR AT180437)

1шт.

T212044

Master Track Pin

(USE WITH T212015, T212029, T212045 ) (SUB FOR AT185788)

1шт.

8

4345327

Washer

Each Side (SUB FOR AT180438)

2шт.

T212045

Spacer

(USE WITH T212015, T212044, T212029 ) (SUB FOR AT185789)

2шт.

9

T212046

Snap Ring

Each Side (SUB FOR 41926 65, TH108899 OR DH400631)

1шт.

10

AT180440

Seal

Each Side

80шт.

11

Pin & Bushing Kit

( AT180463 NLA) (INCLUDES (40) AT1804 36, AT180437, (2) 4345327, AT180439, ( 80) AT180440, (40) T212042 AND T212043 )

1шт.

20

Track Chain W/O Shoes

One Each Side Of Unit ( AT1 80448 NLA) (ORDER AT317661)

2шт.

51

T212050

Track Bolt

Each Side Of Unit (SUB FOR AT180444)

164шт.

52

T212051

Nut

Each Side Of Unit (SUB FOR AT180443)

164шт.

53

AT180445

Open Center 3 Bar Shoe

500mm, Each Unit

41шт.

AT180446

Open Center 3 Bar Shoe

600mm, Each Unit

41шт.

AT180447

Open Center 3 Bar Shoe

700mm, Each Unit

41шт.
