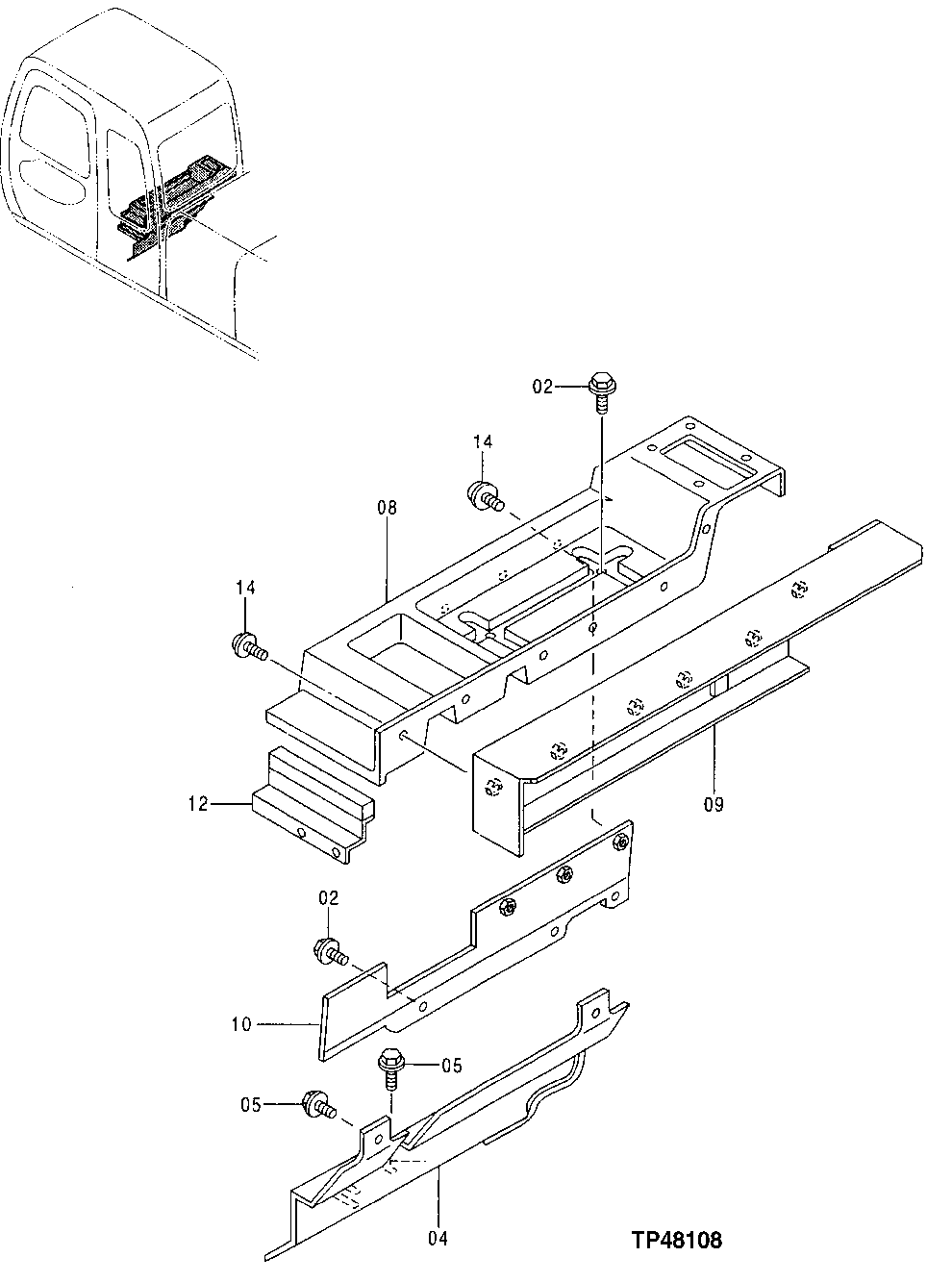

Запчасти John Deere 10 183 - Cab Rear Tray 1830 Heating & Air Conditioning

2

19M7866

Screw

M8 X 20 SUB FOR AT213603 OR J0508 20; ALSO ORDER 24M7036 AND 12M7055

6шт.

24M7036

Washer

9 X 16 X 1.600 mm

6шт.

Washer

12M7065 NLA

6шт.

4

6016127

Cover

SUB FOR AT215112

1шт.

5

19M7881

Screw

M8 X 20

4шт.

Washer

12M7065 NLA

4шт.

24M7055

Washer

8.400 X 16 X 1.600 mm

4шт.

8

0003100

Tray

SUB FOR AT215082 AND 0002231

1шт.

9

7035765

Cover

SUB FOR AT215115, 7032622 AND AP37093

1шт.

10

8068043

Bracket

SUB FOR AT215122

1шт.

12

8067575

Bracket

SUB FOR AT215119

1шт.

14

Screw With Washer

(SUB FOR AP34403 OR J090612 OR J020612)( AT133603 NLA)

9шт.

19M7923

Cap Screw

M6 X 12

9шт.

24M7054

Washer

6.400 X 12 X 1.600 mm

9шт.

12M7006

Lock Washer

6 mm

9шт.
