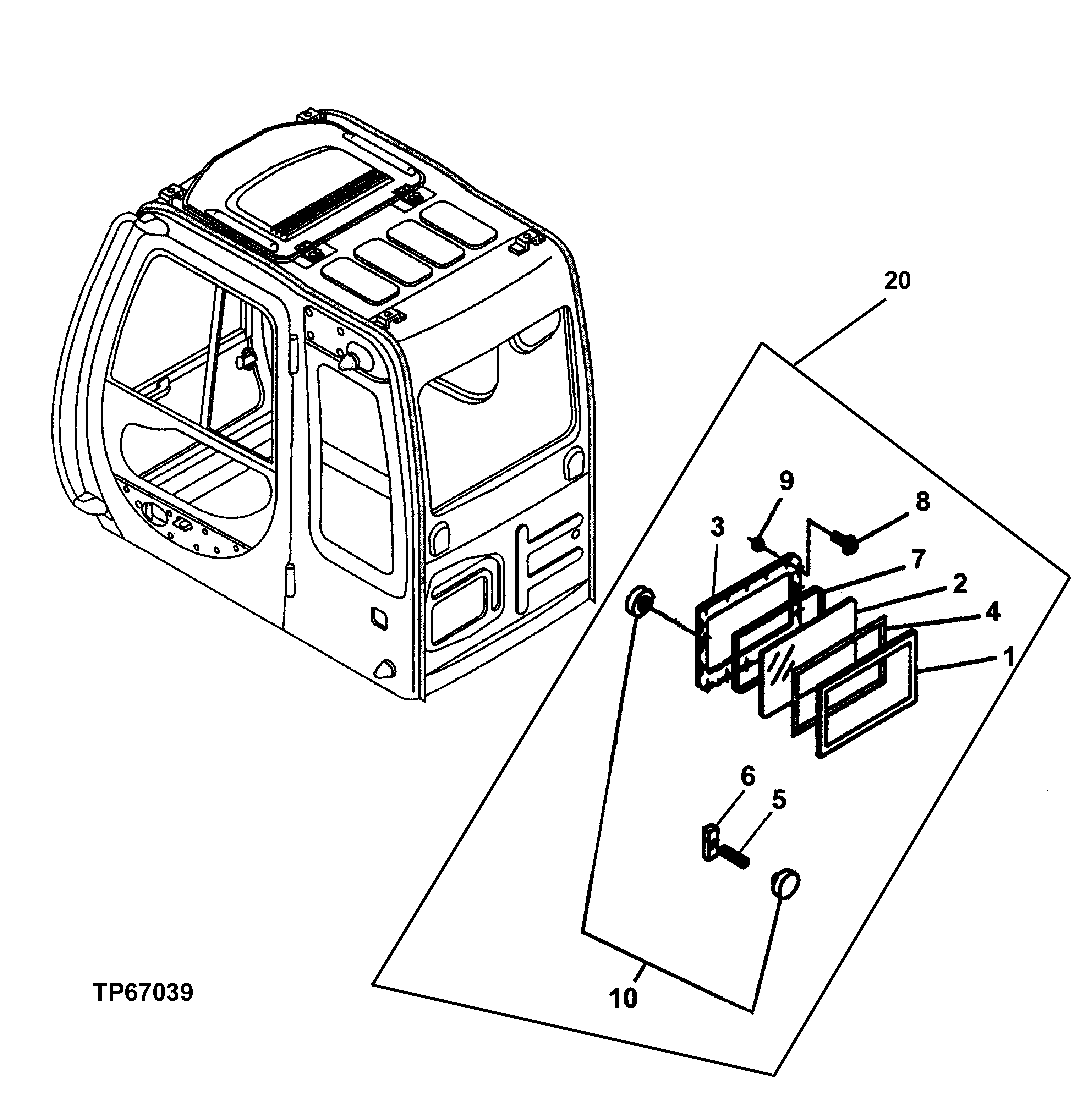

Запчасти John Deere 10 178 - SECONDARY EXIT WINDOW KIT 1810 Operator Enclosure

1

FFSB103019

Frame

1шт.

2

FFSB103020

Windowpane

1шт.

3

Frame

( FFSB103021 NLA)

1шт.

4

FFSB103022

Weatherstrip

1шт.

5

FFSB103023

Rod

2шт.

6

FFSB103024

Block Clamp

2шт.

7

Weatherstrip

2300mm (90.55in.) LGTH, ( FFSB103025 NLA ) (CUT TO LENGTH) (MAKE FROM FFSB107987)

1шт.

8

19H2924

Screw

1/4" X 3/4"

16шт.

9

K40001

Lock Nut

( FFSB102853 NLA)

16шт.

10

FFSB103031

Knob

(ASSEMBLY CONTAINS FOUR PIECES)

4шт.

20

FFSB104490

Kit

(WHOLEGOODS)

1шт.
