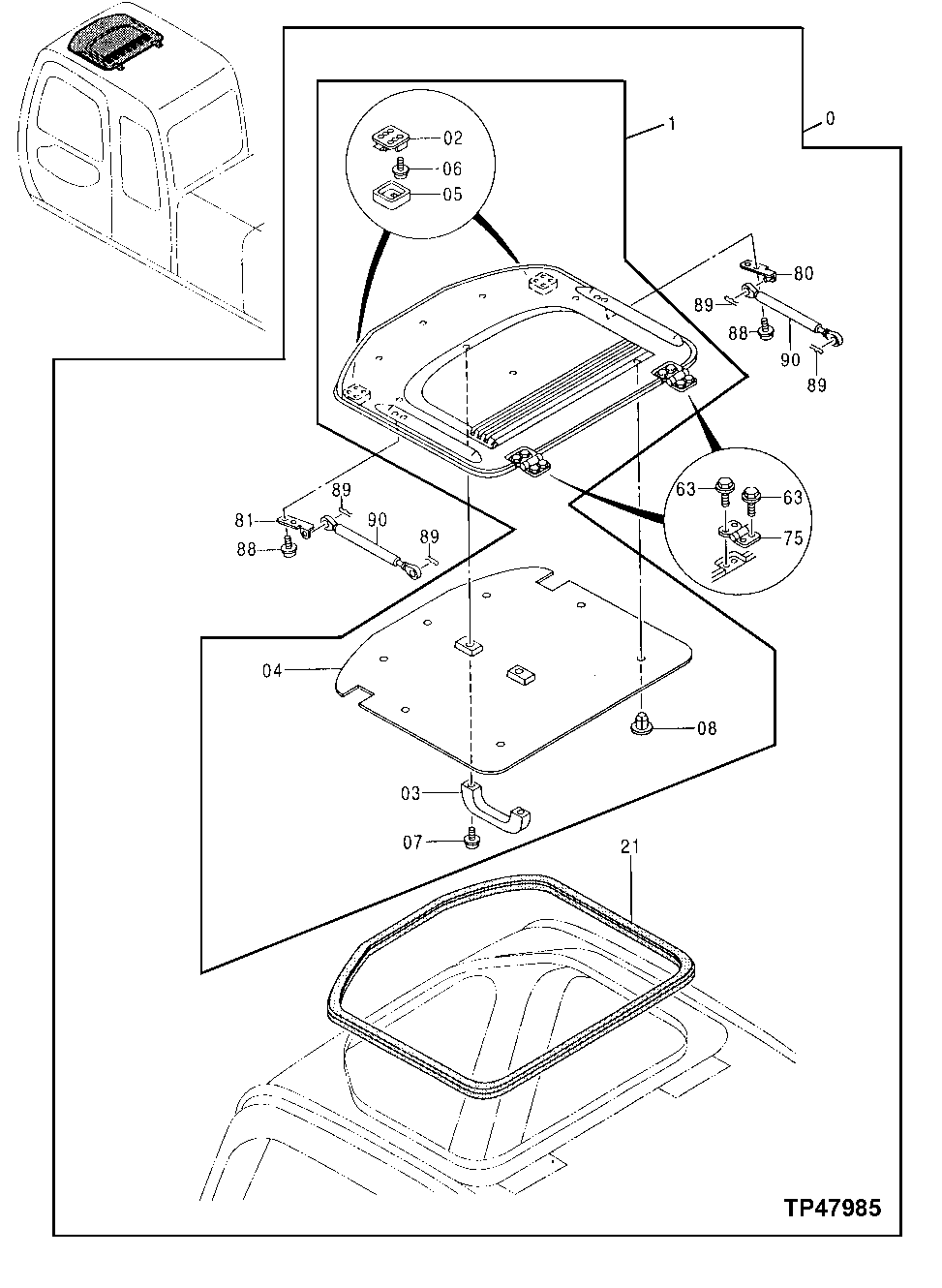

Запчасти John Deere 10 167 - Cab Components 1810 Operator Enclosure

0

4383439

Cab

Contains All Items On This Page Addi tional Components Listed On Previous and Following Pages SUB FOR AT215570

1шт.

1

4369611

Roof

SUB FOR AT214115

1шт.

2

4369615

Lock

SUB FOR AT214118

2шт.

3

4204579

Handle

SUB FOR TH108661

1шт.

4

4369613

Headliner

SUB FOR AT214116

1шт.

5

4369616

Cover

SUB FOR AT214119

2шт.

6

21M7265

Screw

M5 X 12

8шт.

7

19M8425

Cap Screw

M6 X 16

2шт.

24M7293

Washer

6.500 X 13 X 1.600 mm

2шт.

12M7006

Lock Washer

6 mm

2шт.

8

4369614

Clip

SUB FOR AT214117

7шт.

21

4474515

Isolator

SUB FOR AT214066

2шт.

63

19M7162

Cap Screw

M8 X 16 SUB FOR AT214306

8шт.

Washer

12M7065 NLA

8шт.

24M1136

Washer

8шт.

75

4369620

Hinge

SUB FOR AT214123

2шт.

80

AT307247

Bracket

RH; SUB FOR 4369617

1шт.

81

AT307248

Bracket

LH; SUB FOR 4369618

1шт.

88

19M7162

Cap Screw

M8 X 16 SUB FOR AT214308; AL SO ORDER 24M7036 AND 12M7065

4шт.

24M7036

Washer

9 X 16 X 1.600 mm

4шт.

Washer

12M7065 NLA

4шт.

89

H132922

Cotter Pin

4шт.

90

4369619

Cylinder

SUB FOR AT214122

2шт.
