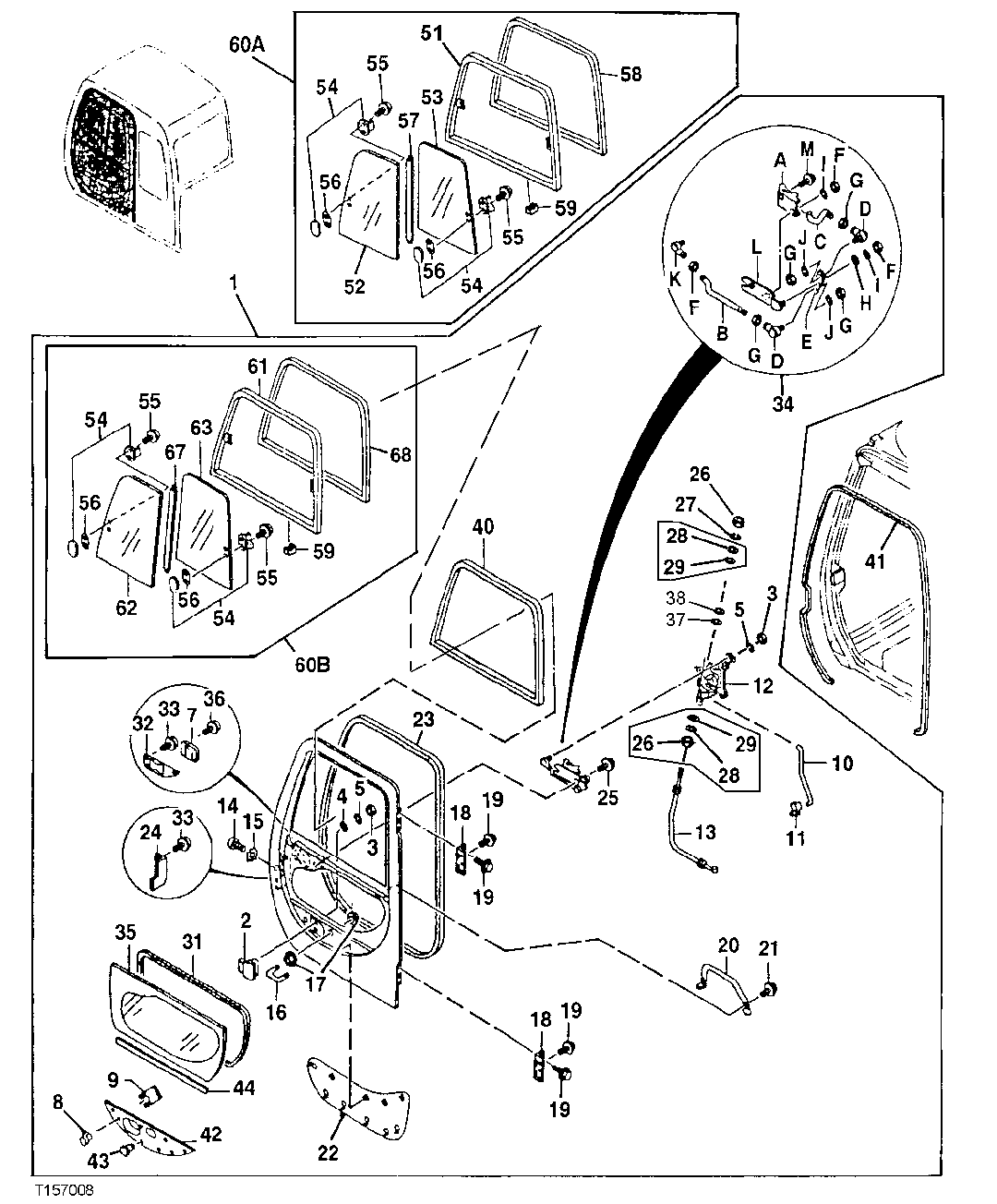

Запчасти John Deere 10 162 - Cab Components 1810 Operator Enclosure
№
Артикул
Название
Примечание
Количество
0
4383439
Cab
Not Illustrated Contains All Items On This Page Additional Components Listed On Previ ous and Following Pages (SUB FOR AT215570)
1шт.
1
4385381
Door
(SUB FOR AT215574)
1шт.
4
24M7054
Washer
6.400 X 12 X 1.600 mm
2шт.
5
12M7006
Lock Washer
6 mm
3шт.
7
4369633
Cover
(SUB FOR AT214133)
1шт.
AT194969
Key
Not Illustrated (H800) (SUB FOR AT147803)
1шт.
9
4372091
Clip
(SUB FOR AT214290)
1шт.
10
4369643
Rod
(SUB FOR AT214143)
1шт.
11
4372092
Retainer
(SUB FOR AT214291)
1шт.
12
4369631
Lock
(SUB FOR AT214131)
1шт.
13
Cable
( 4369642 NLA) (SUB FOR AT2141 42 ) (ORDER 4458077, 4458079, 4 455981, (3) 4382885 AND 4458080 )
1шт.
4458077
Cable
1шт.
14
4382885
Bolt
(SUB FOR AT213624, M470625)
3шт.
15
12M7081
Lock Washer
6.400 mm (SUB FOR AT214314 OR 4372560)
3шт.
16
4369661
U-Bolt
(SUB FOR AT214160)
1шт.
17
4414857
Nut
(SUB FOR AT157068)
4шт.
18
4369648
Hinge
(SUB FOR AT214148)
2шт.
19
R168831
Cap Screw
(SUB FOR AT214313, 4372261 OR 4356695)
12шт.
24M7271
Washer
10.500 X 20 X 2 mm
12шт.
20
4369646
Handrail
(SUB FOR AT214146)
1шт.
21
4372225
Screw With Washer
(SUB FOR AT214311)
2шт.
22
4369647
Cover
(SUB FOR AT214147)
1шт.
23
4369662
Weatherstrip
(SUB FOR AT214161)
1шт.
24
4369632
Cover
(SUB FOR AT214132)
1шт.
25
21M7246
Screw
M6 X 16
2шт.
24M7105
Washer
6 X 12 X 1.600 mm
2шт.
12M7006
Lock Washer
6 mm
2шт.
28
24M7027
Washer
5.300 X 10 X 1 mm
2шт.
29
24M7055
Washer
8.400 X 16 X 1.600 mm
2шт.
31
4400087
Seal
(SUB FOR AT214289, APPL) (ALSO O RDER 4400079 ) (SUB FOR AT218141)
1шт.
32
4369644
Cover
(SUB FOR AT214144)
1шт.
33
J680510
Screw With Washer
(SUB FOR AT213609)
5шт.
Выбрано товаров: 39
