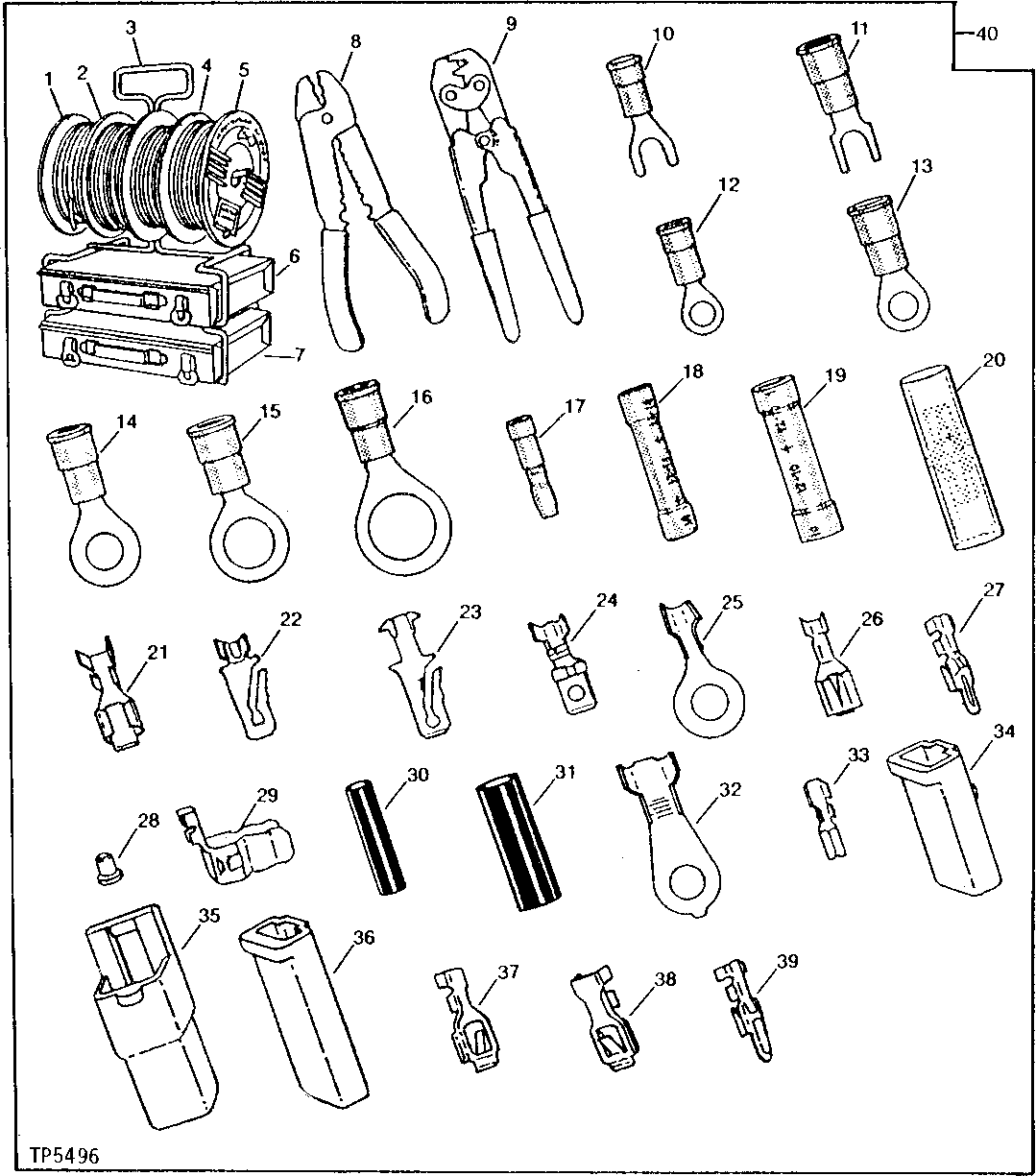

Запчасти John Deere 10 152 - Lead Wire Kit 1674 Wiring Harness And Switches

1

R66319

Wiring Lead

14GA., 30, 480mm (100ft.), (1 SPOOL) Cable, Primary

1шт.

2

R65593

Wiring Lead

16GA., 30, 480mm (100ft.), (1 SPOOL) Cable, Primary

1шт.

3

R65608

Rack

1шт.

4

R66321

Wiring Lead

10GA., 15, 240mm (50ft.), (1 SPOOL) Cable, Primary

1шт.

5

R66320

Wiring Lead

12GA., 30, 480mm (100ft.), (1 SPOOL) Cable, Primary

1шт.

6

R65609

Container

(32 COMPARTMENT)

1шт.

7

R65610

Container

(11 COMPARTMENT)

1шт.

8

R32011

Tool

Wire Stripping

1шт.

9

R65594

Tool

Wire Crimping

1шт.

10

R32016

Elec. Connector Terminal

14-16GA., NO. 10 SPADE, Primary

1шт.

11

R32017

Elec. Connector Terminal

10-12GA., NO. 10 SPADE, Primary

1шт.

12

R32018

Elec. Connector Terminal

14-16GA., NO. 10 EYELET, Primary

1шт.

13

R32019

Elec. Connector Terminal

10-12GA., NO. 10 EYELET, Primary

1шт.

14

R32021

Elec. Connector Terminal

10-12GA., 1/4" EYELET, Primary

1шт.

15

R32022

Elec. Connector Terminal

10-12GA., 3/8" EYELET, Primary

1шт.

16

R32023

Elec. Connector Terminal

10-12GA., 1/2" EYELET, Primary

1шт.

17

R32026

Elec. Connector Terminal

Male Bullet

1шт.

18

R32027

Elec. Connector Terminal

14-16GA., Splice

1шт.

19

R32028

Elec. Connector Terminal

10-12GA., Splice

1шт.

20

R32029

Elec. Connector Terminal

2 Wire Bullet Connector

1шт.

21

R65595

Elec. Connector Terminal

10GA., Female

1шт.

22

R65596

Elec. Connector Terminal

10GA. OR TWO 14GA. CABLES, Cable

1шт.

23

T34067

Elec. Connector Terminal

14-16GA., Male (SUB FOR R65597)

1шт.

24

R65598

Elec. Connector Terminal

14-16GA., Male Short

1шт.

25

R65599

Elec. Connector Terminal

14-16GA., 1/4" EYELET

1шт.

26

R65600

Elec. Connector Terminal

14-16GA., Female

1шт.

27

R65601

Elec. Connector Terminal

TWO 16GA. CABLES, Twin -Lock

1шт.

28

R65602

Elec. Connector Terminal

16-18GA., Bulb Socket

1шт.

29

R65603

Elec. Connector Accessory

Fuse

1шт.

30

R65604

Elec. Connector Accessory

14-18GA

1шт.

31

R65605

Elec. Connector Accessory

8-12GA

1шт.

32

R65606

Elec. Connector Terminal

6-8GA., 1/4in. EYELET

1шт.

33

R65607

Elec. Connector Terminal

18-20GA

1шт.

34

T28583

Elec. Connector Housing

One Contact Lock Type, Male

1шт.

35

T28585

Electrical Connector Assy

One Contact Lock Type, Female

1шт.

36

U46370

Electrical Connector Assy

One Contact Single Body, Male

1шт.

37

U46662

Elec. Connector Terminal

Male

1шт.

38

U46663

Elec. Connector Terminal

Male

1шт.

39

U46664

Elec. Connector Terminal

Male

1шт.

40

TY26194

Electrical Repair Kit

Terminal and Wiring (SUB FOR RE11154 OR PM797NA)

1шт.
