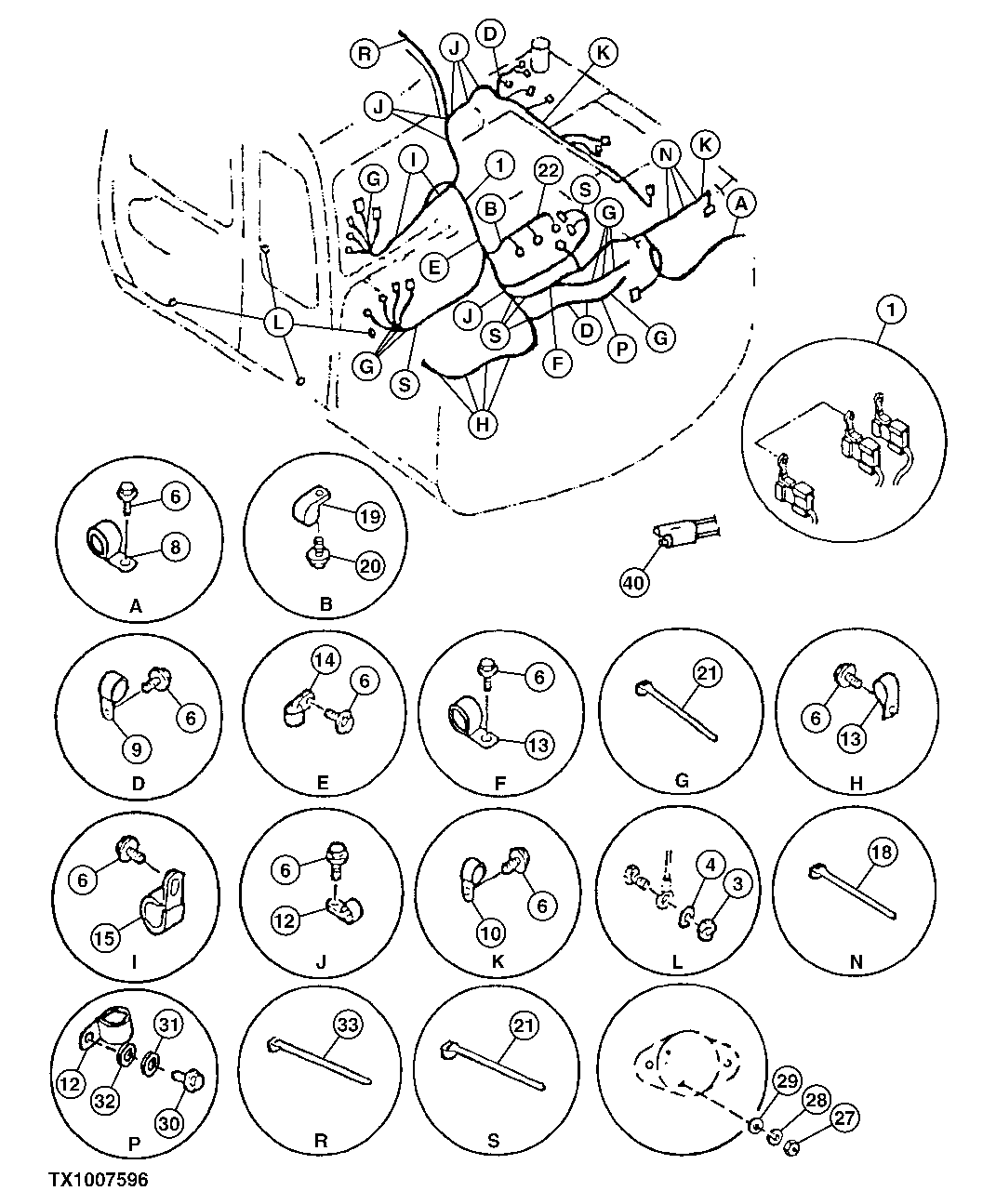

Запчасти John Deere 10 143 - Cab Wiring Harness 1674 Wiring Harness And Switches

1

0002610

Wiring Harness

See DTAC Solution For Repair Kit and Connectors (SUB FOR AP34620)

1шт.

AT167165

Wiring Harness

Auxiliary Solenoid Control Valve

2шт.

1A

4270554

Fuse

40A, Fusible Link Green (SUB FOR AT160982)

2шт.

1B

4287670

Fuse

60A, Fusible Link Yellow (SUB FOR AT200499)

1шт.

1C

4374532

Diode

(PLASTIC CONNECTOR CONTAINS 5 DIOD ES) Not Illustrated Component Of Ma in Wire Harness (SUB FOR AT179476)

1шт.

2

T153974

Clamp

(SUB FOR TH108597, APPL)

1шт.

3

14M7274

Nut

M10

4шт.

4

12M7066

Lock Washer

10 mm

30шт.

6

19M7938

Cap Screw

M10 X 20

25шт.

8

4190261

Clip

(SUB FOR TH108600, APPL) (SUB FOR TH109649)

1шт.

9

T28949

Clamp

(SUB FOR TH108460 OR 4190273)

5шт.

10

4190275

Clamp

(SUB FOR TH108598)

2шт.

12

R73384

Clamp

(SUB FOR TH108597 OR 4190253)

6шт.

13

4190266

Clip

(SUB FOR AH77869, APPL) (SUB FOR TH108793)

7шт.

14

XCL-19

Hose Clamp

(SUB FOR TH108459 OR 4192035)

1шт.

15

AT121321

Hose Clamp

3шт.

16

4336420

Clip

(SUB FOR P61786)

3шт.

17

R72659

Clamp

(SUB FOR AT122384 OR 4235654)

1шт.

18

H77698

Tie Band

3шт.

19

4000860

Clamp

(SUB FOR AT154911)

1шт.

20

19M8425

Cap Screw

M6 X 16

1шт.

12M7006

Lock Washer

6 mm

1шт.

21

H77698

Tie Band

12шт.

22

4448296

Wiring Harness

(SUB FOR AT155617)

1шт.

27

14M7297

Nut

M5

1шт.

28

12M7064

Lock Washer

5 mm

1шт.

29

24M7027

Washer

5.300 X 10 X 1 mm

1шт.

30

19M7877

Cap Screw

M14 X 30 (SUB FOR P64278)

1шт.

31

24M7085

Washer

15 X 28 X 2.500 mm

1шт.

32

12H317

Lock Washer

9/16"

1шт.

33

H141406

Tie Band

1шт.

40

AT172578

Wiring Harness

Diode Used To Protect Against Voltage Spikes

1шт.
