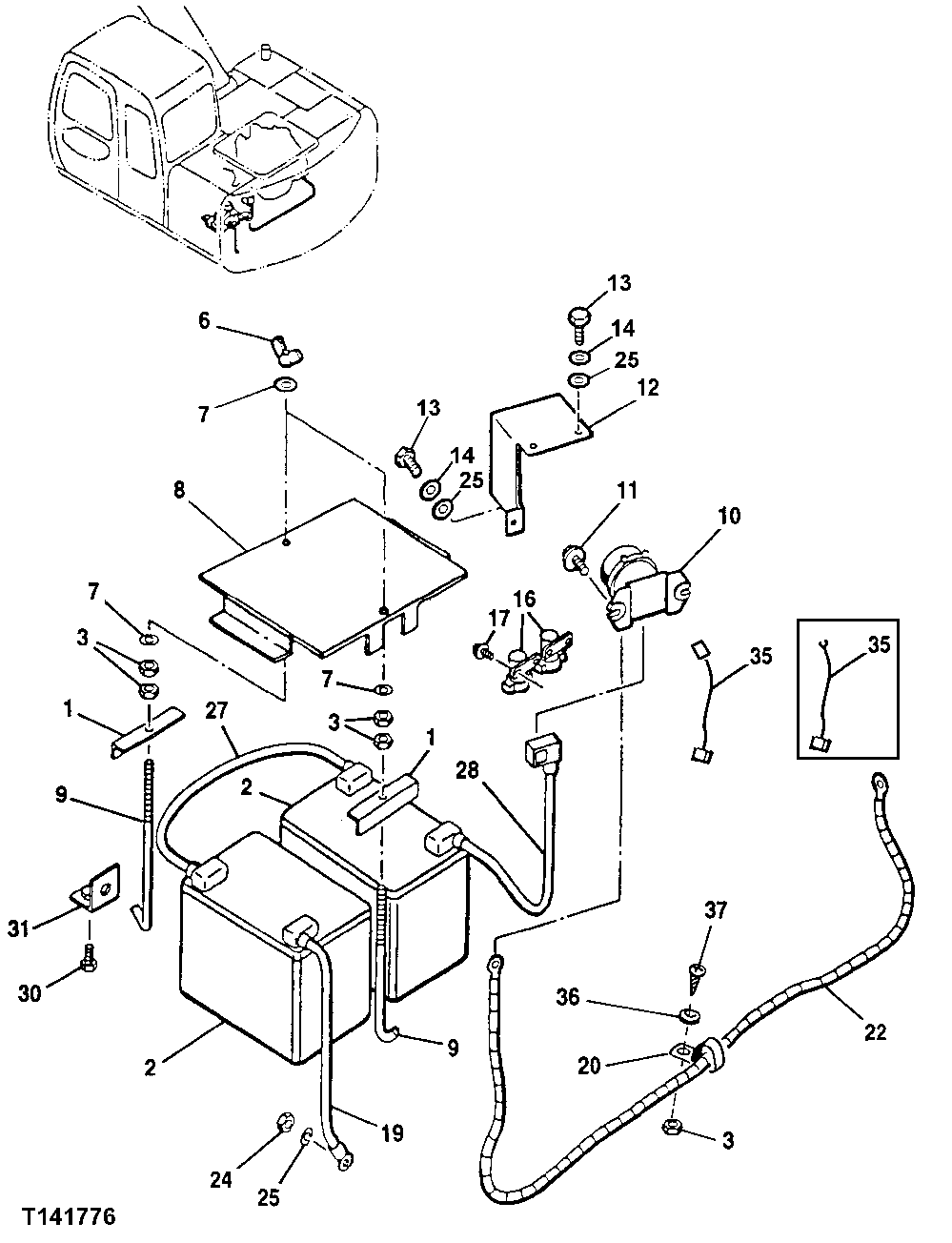

Запчасти John Deere 10 141 - Dual Battery Installation 1674 Wiring Harness And Switches

1

4257035

Angle

SUB FOR AT200425

2шт.

2

TY25803

Dry Charged Battery

SUB FOR AP33466, AT174338 OR TY21766

2шт.

3

14M7274

Nut

M10

5шт.

6

14M7025

Wing Nut

M10

2шт.

7

24M7028

Washer

10.500 X 20 X 2 mm

4шт.

8

DH800107

Cover

SUB FOR P60923

1шт.

9

4257034

Hook Bolt

SUB FOR AT155273

2шт.

10

8943795431

Relay

Battery SUB FOR 4255762 AND AT154229

1шт.

11

19M7513

Cap Screw

M8 X 30 SUB FOR 19M7288

2шт.

Washer

12M7065 NLA

2шт.

24M7055

Washer

8.400 X 16 X 1.600 mm

2шт.

12

3056019

Cover

SUB FOR AT154139

1шт.

13

19M7932

Cap Screw

M8 X 16

3шт.

14

24M7055

Washer

8.400 X 16 X 1.600 mm

3шт.

16

AT145341

Relay

1-STARTER, 1-FUEL SHUT-OFF

2шт.

17

19M7077

Cap Screw

M6 X 20

4шт.

12M7006

Lock Washer

6 mm

4шт.

24M7293

Washer

6.500 X 13 X 1.600 mm

4шт.

19

AR45925

Battery Cable

482.600 mm (19") Battery To Ground

1шт.

20

T28949

Clamp

SUB FOR TH108460 OR 4190273

1шт.

22

4373214

Wiring Harness

SUB FOR AP34529

1шт.

24

14M7274

Nut

M10

1шт.

25

12M7066

Lock Washer

10 mm

4шт.

27

AP33487

Wiring Harness

1шт.

28

AP33486

Wiring Harness

1шт.

30

19M7402

Cap Screw

M10 X 25

1шт.

12M7066

Lock Washer

10 mm

1шт.

24M7028

Washer

10.500 X 20 X 2 mm

1шт.

31

AP33477

Bracket

1шт.

35

4448296

Wiring Harness

Starter SUB FOR AT155617

1шт.

36

24M7028

Washer

10.500 X 20 X 2 mm

1шт.

37

19M7938

Cap Screw

M10 X 20

1шт.
