Запчасти John Deere 10 139 - Cab Wiring Harness 1674 Wiring Harness And Switches

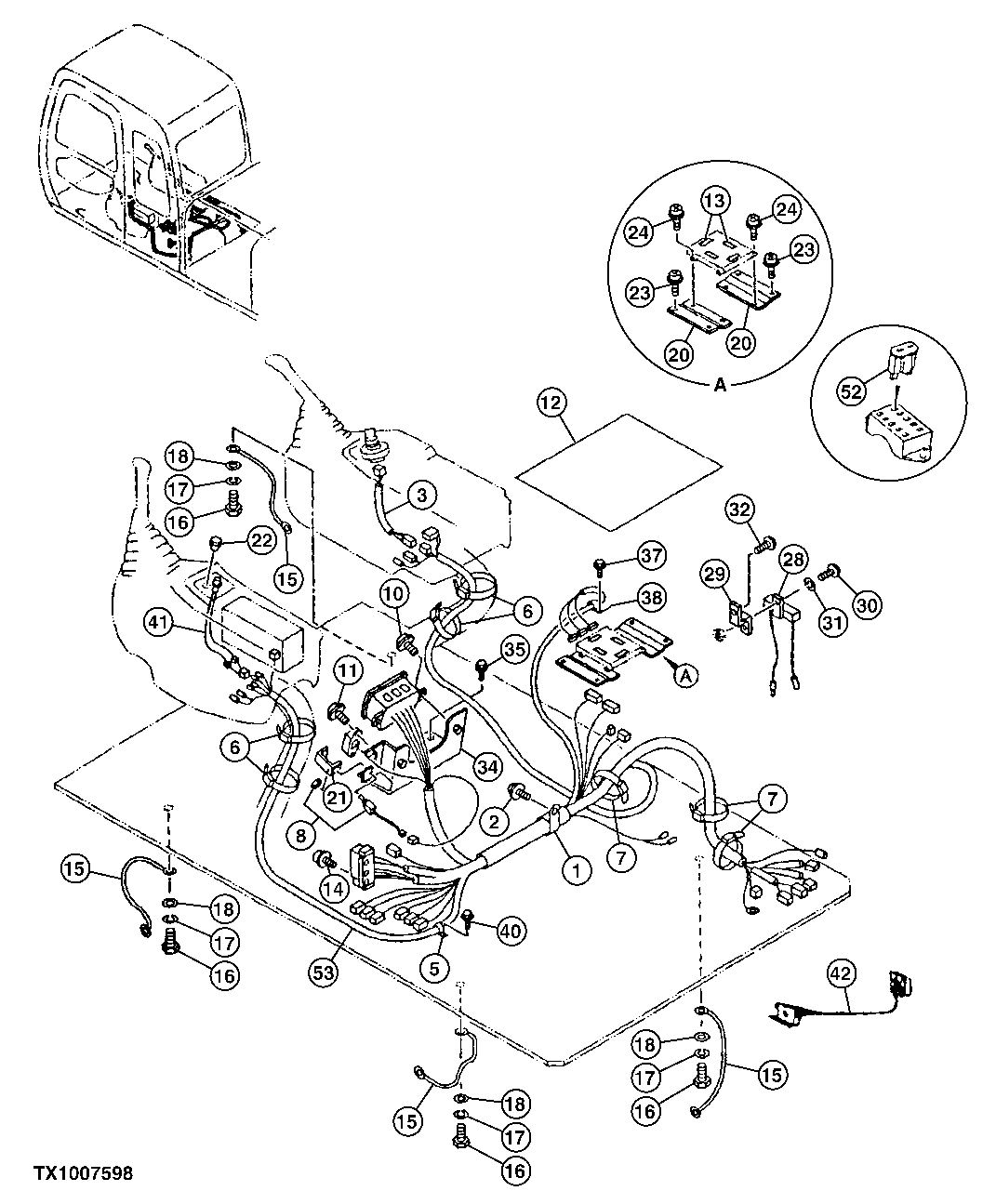

Схема запчастей John Deere 10 - 139 - Cab Wiring Harness 1674 Wiring Harness And Switches

Артикул

Название

Примечание

Количество

1

N198631

Clamp

SUB FOR TH109598 OR 4190265

1шт.

2

19M7402

Cap Screw

M10 X 25

1шт.

12M7066

Lock Washer

10 mm

1шт.

3

4277927

Wiring Harness

Starter Switch SUB FOR AT154955

1шт.

5

4190275

Clamp

SUB FOR TH108598

1шт.

6

H77698

Tie Band

4шт.

7

H77698

Tie Band

3шт.

8

4359384

Switch

SUB FOR AT213984

1шт.

10

19M7077

Cap Screw

M6 X 20

2шт.

24M7293

Washer

6.500 X 13 X 1.600 mm

2шт.

12M7006

Lock Washer

6 mm

2шт.

11

Screw

SUB FOR AT156974; J460310 NLA

2шт.

21M7394

Screw

M3 X 10

1шт.

24H1914

Washer

1/8" X 5/16" X 0.032"

1шт.

12H233

Lock Washer

1/8"

1шт.

12

3075379

Cover

SUB FOR AT213792

1шт.

13

4365396

Tape

SUB FOR AT214022

4шт.

14

Screw With Washer

J460620 AND AT200012 NLA; ORD ER 21M7267, 24M7293 AND 12M7006

2шт.

21M7267

Screw

M6 X 20

2шт.

24M7293

Washer

6.500 X 13 X 1.600 mm

2шт.

12M7006

Lock Washer

6 mm

2шт.

15

Wiring Harness

Floor Plate To Ground N ot Available For Service

4шт.

16

19M8324

Cap Screw

M10 X 16

4шт.

17

12M7066

Lock Washer

10 mm

4шт.

18

24M7028

Washer

10.500 X 20 X 2 mm

4шт.

20

Bracket

9745785 AND AT214408 NLA

2шт.

21

4367375

Bracket

SUB FOR AT214036

1шт.

22

4294437

Cap

SUB FOR AT215503

1шт.

23

J450616

Screw

SUB FOR AT161039

4шт.

24

Screw With Washer

J460625 NLA; SUB FOR AT213607

4шт.

21M7159

Screw

M6 X 25

4шт.

12M7006

Lock Washer

6 mm

4шт.

24M7054

Washer

6.400 X 12 X 1.600 mm

4шт.

28

4191772

Resistor

EXITATION; SUB FOR AT155250

1шт.

29

4379070

Strap

SUB FOR AT215559

1шт.

30

4204811

Screw

SUB FOR AT155253

1шт.

31

12H315

Lock Washer

0.164" SUB FOR 12M7063

1шт.

32

21M7246

Screw

M6 X 16

1шт.

12M7006

Lock Washer

6 mm

1шт.

24M7105

Washer

6 X 12 X 1.600 mm

1шт.

34

8060885

Bracket

SUB FOR AT215998

1шт.

35

19M7139

Cap Screw

M8 X 20

2шт.

Washer

12M7065 NLA

2шт.

24M7055

Washer

8.400 X 16 X 1.600 mm

2шт.

37

19M8425

Cap Screw

M6 X 16

1шт.

12M7006

Lock Washer

6 mm

1шт.

24M7054

Washer

6.400 X 12 X 1.600 mm

1шт.

38

AH78237

Clamp

SUB FOR AT215502, 4289217

1шт.

40

19M7402

Cap Screw

M10 X 25

1шт.

12M7066

Lock Washer

10 mm

1шт.

24M7028

Washer

10.500 X 20 X 2 mm

1шт.

41

2037304

Wiring Harness

SUB FOR AT213738

1шт.

42

AT179050

Wiring Harness

9ft. (2.74m) EXTENSION, To Cab Connector

1шт.

AT179051

Wiring Harness

15ft. (4.57m) EXTENSION, To Cab Connector

1шт.

52

57M7329

Fuse

Black

6шт.

57M7125

Fuse

Tan

8шт.

57M7121

Fuse

Red

3шт.

57M7120

Fuse

Yellow

2шт.

53

0002289

Wiring Harness

Cab SUB FOR AT215475

1шт.

Выбрано товаров: 59
