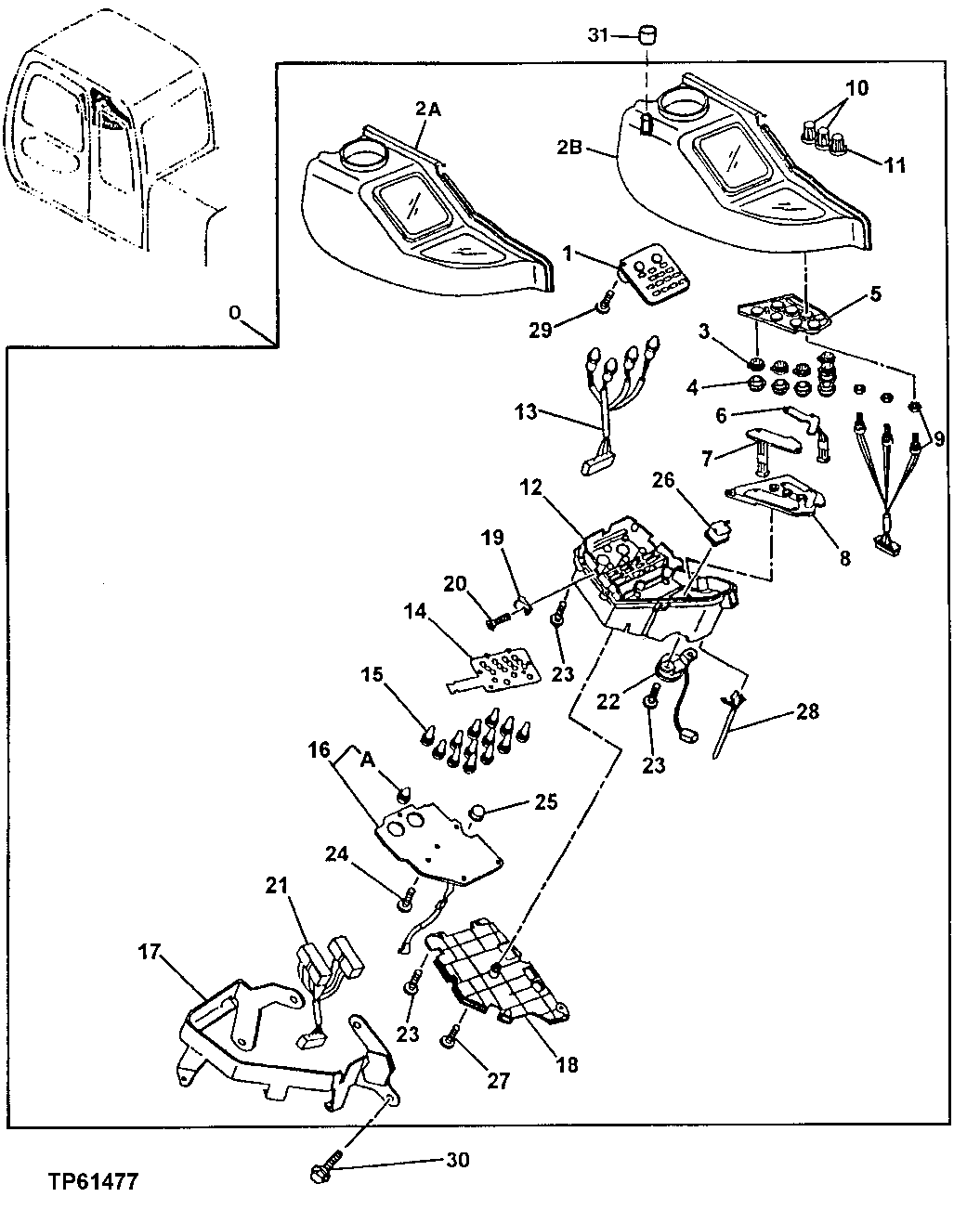

Запчасти John Deere 10 137 - Monitor 1674 Wiring Harness And Switches
№
Артикул
Название
Примечание
Количество
0
FYA00015549
Monitor
AT215554 NLA; ALSO ORDER 4209296
1шт.
4209296
Grommet
4411760 NLA; SUB FOR P66462
1шт.
1
4403340
Panel
SUB FOR AT214176 OR AT182498
1шт.
2A
Case
4420938 NLA; ALSO ORDER 4209296
1шт.
4209296
Grommet
1шт.
2B
Case
4420938 NLA; SUB FOR AT185756
1шт.
3
4370113
Push Button
SUB FOR AT214177
5шт.
4
4310827
Retainer
SUB FOR AT213826
5шт.
5
4370114
Cover
SUB FOR AT214178
1шт.
6
Circuit Board
Warning Buzzer Cancel Work Mode and Work Mode Indicator Lights SUB FOR FYA00020085 OR AT214179; 4370115 NLA
1шт.
7
4370116
Circuit Board
Level Check, Windshield Washer and Auto Idle SUB FOR AT214180
1шт.
8
4370117
Support
Switch Panel Switches For Head light, Work Light, Wipers and X X Speed Propel SUB FOR AT214181
1шт.
9
4370118
Monitor Wiring Harness
SUB FOR AT214182
1шт.
10
4370119
Knob
Work Light and Wiper Sw itches SUB FOR AT214183
2шт.
11
4370137
Knob
Propel Mode Switch SUB FOR AT214184
1шт.
12
4370138
Housing
SUB FOR AT214185
1шт.
13
4370139
Wiring Harness
Indication Light Includes Bulbs For HP Mode, E Mode, Auto Idle Mode, an d Warm-Up Indicator SUB FOR AT214186
1шт.
14
4370140
Circuit Board
Ribbon Circuit For Indicat or Lights SUB FOR AT214187
1шт.
15
4370141
Lamp
Indicator SUB FOR AT214188
13шт.
16
4370142
Circuit Board
SUB FOR AT214189
1шт.
16A
4370141
Lamp
SUB FOR AT214188
1шт.
17
4370144
Bracket
SUB FOR AT214191
1шт.
18
4370145
Cover
SUB FOR AT214192
1шт.
19
4370146
Nut
SUB FOR AT214193
2шт.
20
4370147
Screw
SUB FOR AT214194
2шт.
21
4370148
Wiring Harness
SUB FOR AT214195
1шт.
22
4370149
Audible Warning Alarm
SUB FOR AT214196
1шт.
23
4294999
Screw
SUB FOR AT213817
19шт.
24
4370154
Set Screw
SUB FOR AT214201
6шт.
25
Cap
1шт.
26
Cap
1шт.
27
4297101
Screw
SUB FOR AT155616
1шт.
28
4370155
Clamp
SUB FOR AT214202
1шт.
29
N202901
Screw
SUB FOR AT214203, 4370156
1шт.
30
19M7932
Cap Screw
M8 X 16
4шт.
Washer
12M7065 NLA
4шт.
31
4209296
Grommet
SUB FOR AT205712
1шт.
