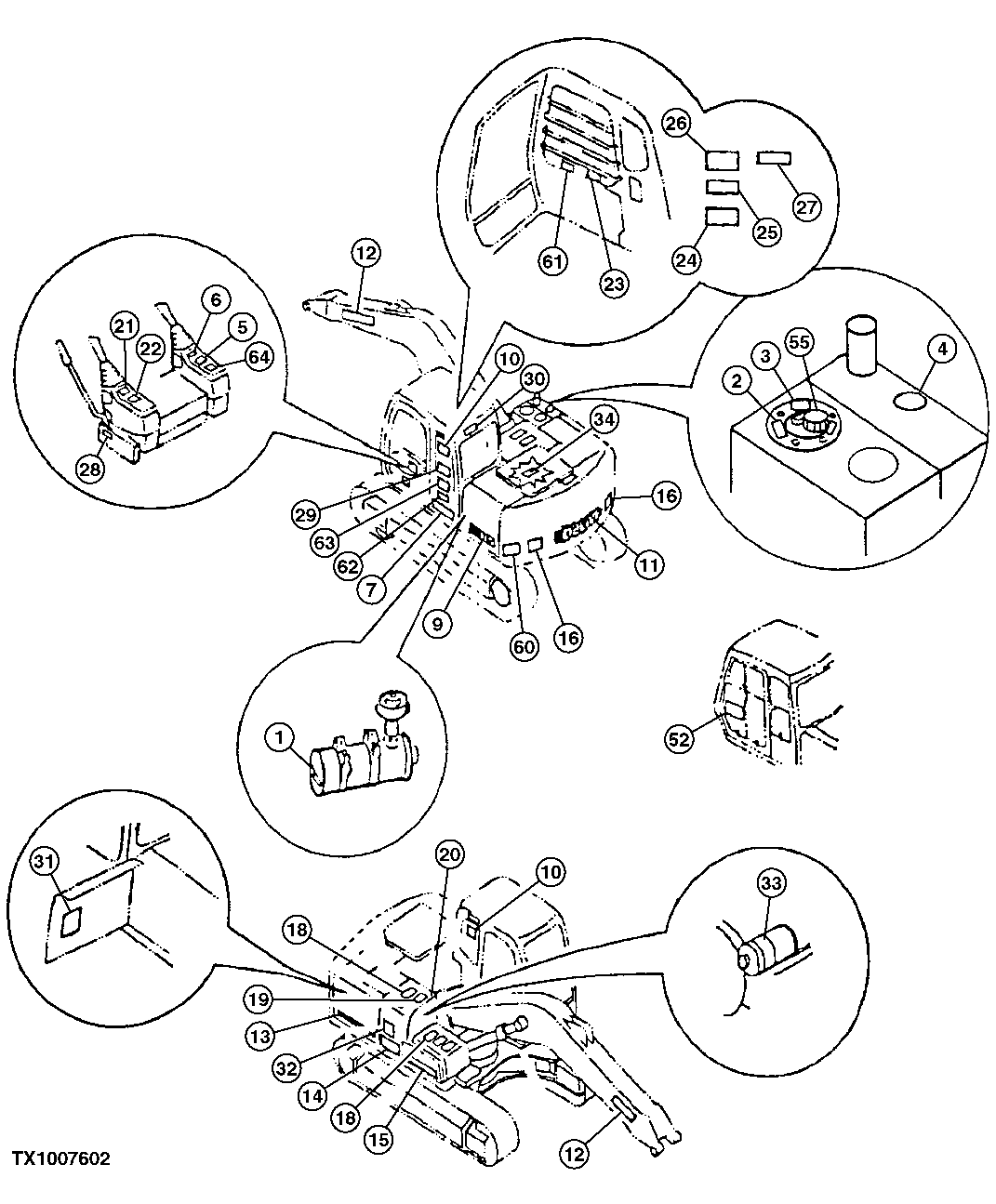

Запчасти John Deere 10 132 - Labels and Decals 1320 Vehicle Finish & Trim

1

R56902

Label

Air Cleaner

1шт.

2

P63448

Label

Pump Bleed Information (SUB FOR AT155733)

1шт.

3

T101942

Label

Hydraulic Oil

1шт.

4

T79632

Label

Diesel Only

1шт.

5

4264805

Label

Ignition Key Switch (SUB FOR AT155730)

1шт.

6

T159842

Label

Right Control Lever - SAE Pattern White Background

1шт.

T159843

Label

Right Control Lever - John De ere Pattern Yellow Background

1шт.

7

T161536

Label

Stripe - Left Side

1шт.

9

T161783

Label

110, (LH)

1шт.

10

T160538

Label

Leaping Deer Transparent

2шт.

11

T160684

Label

Deere

1шт.

12

T158455

Label

Deere

2шт.

13

T161784

Label

110, (RH)

1шт.

14

T161534

Label

Stripe - Right Side

1шт.

15

T161535

Label

Stripe - Right Side (TOOLBOX)

1шт.

16

JD5909

Reflector

Red (CUT TO LENGTH) ( T160 910 NLA) (MAKE FROM JD5909)

2шт.

18

H21259

Mat

ARшт.

19

Mat

Antiskid ( T161537 NLA) (SUB H21259)

1шт.

20

H21259

Mat

1шт.

21

T159841

Label

Left Control Lever - SAE Pattern White Background

1шт.

T159844

Label

Left Control Lever - John De ere Pattern Yellow Background

1шт.

22

4288971

Label

Ether Aid / Motion Can cel (SUB FOR AT155729)

1шт.

23

T159888

Label

Operational (START STOP)

1шт.

24

T159887

Safety Sign

(ENGLISH (CAUTION) READ OPERATOR'S MANUAL)

1шт.

T162754

Label

(SPANISH (CAUTION) READ OPERATOR'S MANUAL)

1шт.

T162774

Label

(FRENCH (CAUTION) READ OPERATOR'S MANUAL)

1шт.

25

T146668

Safety Sign

Warning - Avoid Crushing

1шт.

26

T146667

Safety Sign

Danger - Electrocution

1шт.

27

T387695X19

Label

Important - Break Window For Seconda ry Exit (SUB FOR T190393 AND T157809)

1шт.

28

4299059

Label

Hydraulic Lockout (SUB FOR T138886)

1шт.

29

T161889

Label

(ENGLISH (LIFT CAPACITY))

1шт.

T163613

Label

(SPANISH (LIFT CAPACITY))

1шт.

T163601

Label

(FRENCH (LIFT CAPACITY))

1шт.

30

T146664

Safety Sign

Caution-Window Lock (INSIDE CAB)

1шт.

31

T161888

Label

(ENGLISH (PERIODIC MAINTENANCE))

1шт.

T163496

Label

(ENGLISH (PERIODIC MAINTENANCE))

1шт.

T184283

Label

(SPANISH (PERIODIC MAINTENANCE))

1шт.

T184284

Label

(FRENCH (PERIODIC MAINTENANCE))

1шт.

32

T149983

Label

Important - Oil Level Ins ide Right Pump Compartment

1шт.

33

T146102

Label

Danger - Bypass Start (SUB FOR T146103)

1шт.

34

T152657

Safety Sign

Important - Radiator

1шт.

52

T161729

Label

(VANDAL PROTECTION COVER LOCATIONS)

1шт.

55

T147009

Label

(CAUTION (PRESSURIZED TANK CAP REMOVAL))

1шт.

60

T145893

Safety Sign

(WARNING - STAY CLEAR DURING OPERATIONS)

2шт.

61

T163407

Label

Blade Operation

1шт.

62

3076246

Label

(WARNING - AVOID TIPPING MAC HINE) (SUB FOR P63440, APPL)

1шт.

63

P65656

Label

Lift Capacity

1шт.

64

T163997

Label

Blade Operation

1шт.
