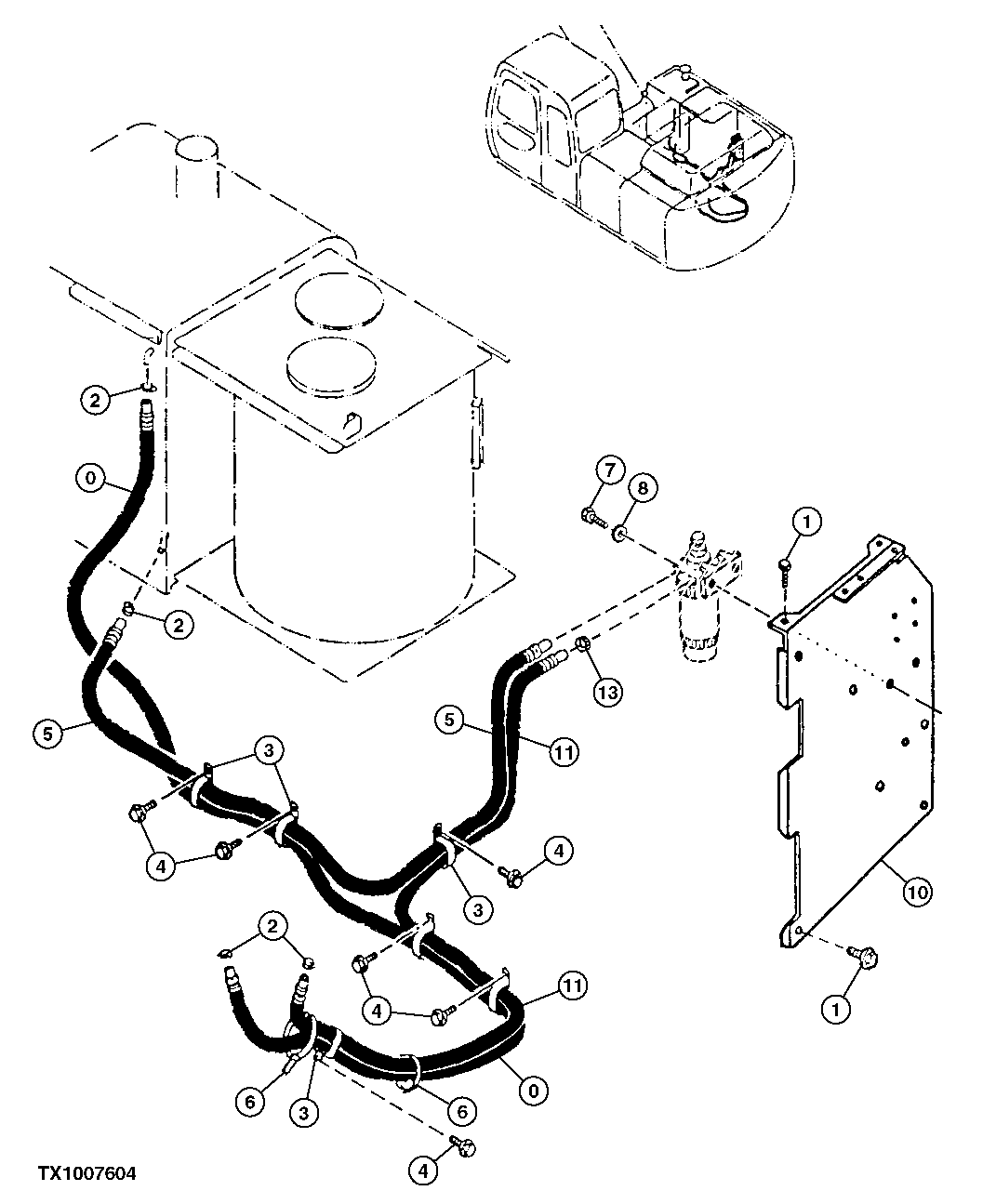

Запчасти John Deere 10 130 - Fuel Tank Lines 0560 External Fuel Supply Systems

0

TY24398

Bulk Hose

Return (SUB FOR AP34469)

1шт.

1

19M7402

Cap Screw

M10 X 25

4шт.

24M7346

Washer

11 X 20 X 2 mm

4шт.

12M7058

Lock Washer

12 mm (SUB FOR 12M7067)

4шт.

2

TY22464

Clamp

(SUB FOR AR21836)

6шт.

3

4190266

Clip

(SUB FOR TH108793)

6шт.

4

19M7938

Cap Screw

M10 X 20

6шт.

12M7066

Lock Washer

10 mm

6шт.

5

Bulk Hose

Suction (SUB FOR AT206094 (MF TY 26190 CTL 1850MM) ( 9149152 NLA))

1шт.

6

H77698

Tie Band

2шт.

7

19M7358

Cap Screw

M10 X 40

2шт.

8

12M7066

Lock Washer

10 mm

2шт.

10

AP35729

Cover

(SUB FOR P63323)

1шт.

11

AP34467

Hose

Suction

1шт.

13

TY22464

Clamp

(SUB FOR AR21836)

2шт.
