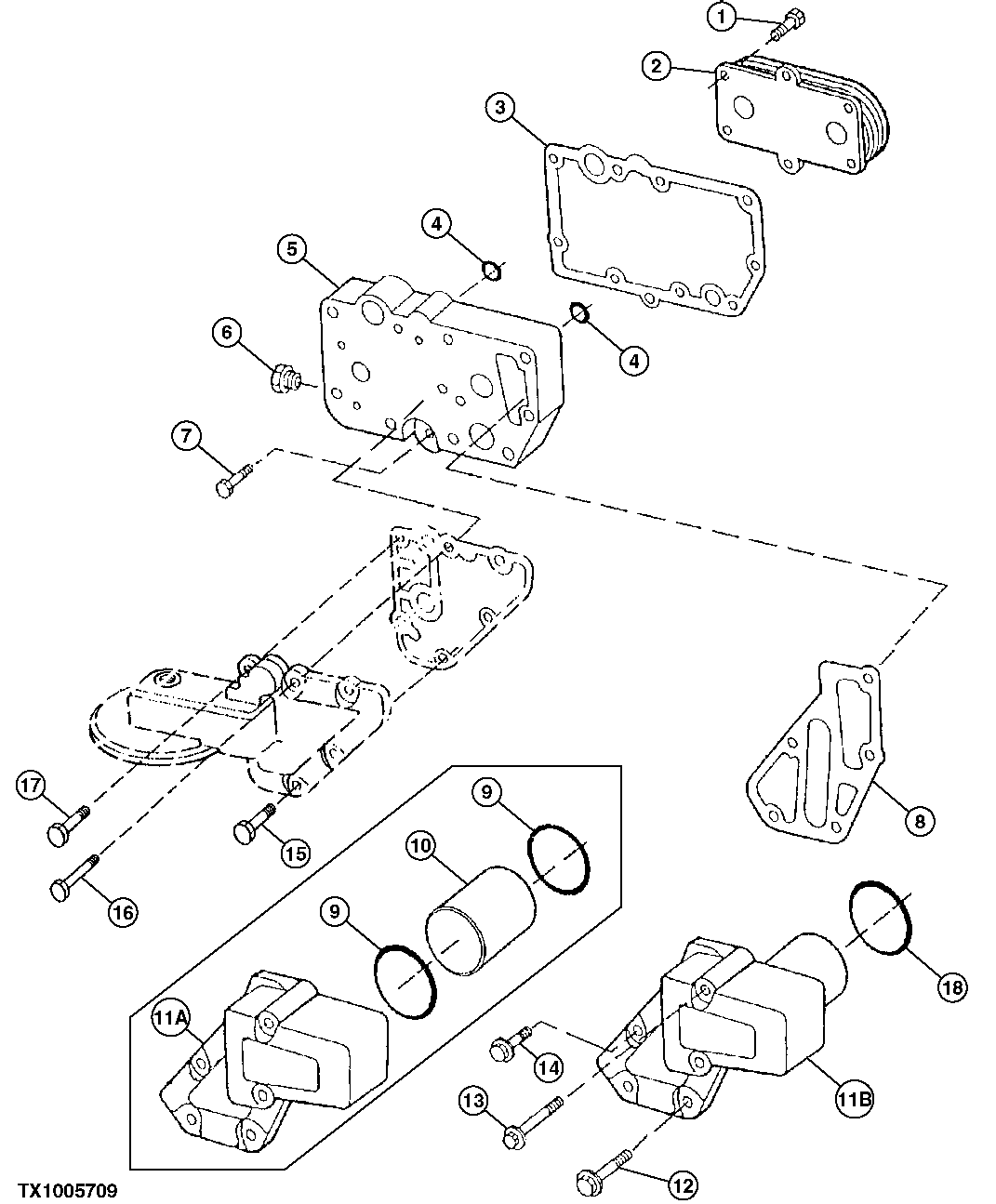

Запчасти John Deere 10 98 - Engine Oil Cooler (704562 - 803026) 0419B Engine Oil Cooler 4045TT054 4045TT054

1

RE67231

Screw

6шт.

2

RE560753

Oil Cooler

(B) SUB FOR RE59296

1шт.

RE522820

Oil Cooler

INCLUDES RE59296, (6) RE672 31, R123471 AND (2) T122075

1шт.

3

R123501

Gasket

1шт.

4

T122075

O-Ring

2шт.

5

R123471

Housing

1шт.

6

RE46686

Fitting

1шт.

7

RE46685

Fitting Plug

1шт.

8

R501428

Gasket

SUB FOR R123502

1шт.

9

R61105

O-Ring

USE WITH R135177

2шт.

10

R115252

Bushing

USE WITH R135177

1шт.

11A

R135177

Adapter Fitting

SUB R502811

1шт.

11B

R502811

Adapter Fitting

1шт.

12

19M7802

Screw

M8 X 65

2шт.

13

19M7970

Screw

M8 X 100

2шт.

14

RE67238

Screw

(A)

1шт.

15

19M7802

Screw

M8 X 65

4шт.

16

19M7970

Screw

M8 X 100

1шт.

17

RE67238

Screw

1шт.

18

R504734

O-Ring

USE WITH R502811

1шт.
