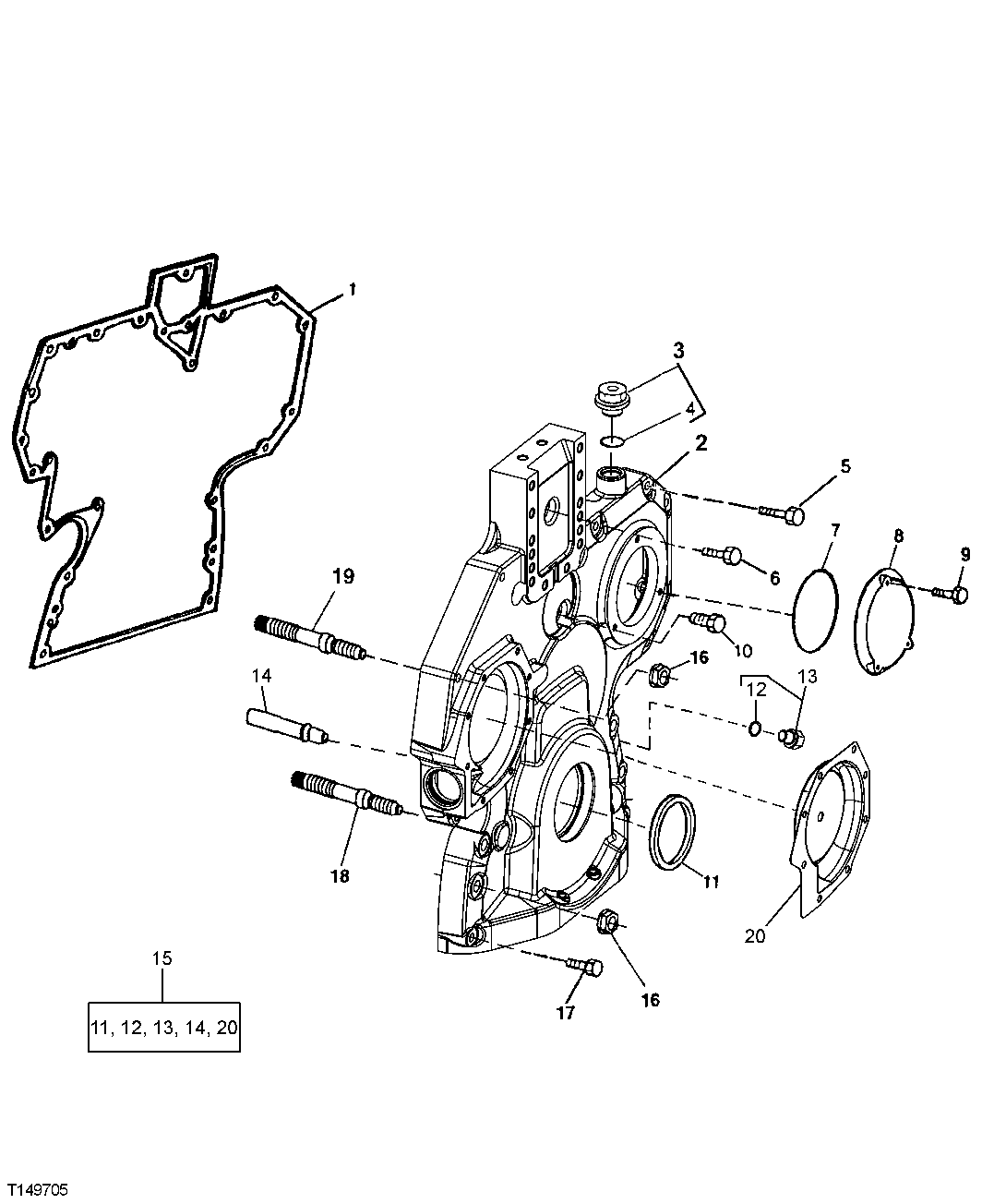

Запчасти John Deere 10 69 - Replacement Timing Gear Cover (704562 - 803026) 0402B Camshaft And Valve Actuating Means 4045TT054 4045TT054

1

R136516

Gasket

1шт.

2

R504725

Cover

1шт.

3

RE501938

Plug

w/o Tachometer Sensor

1шт.

4

51M7044

O-Ring

17.300 X 2.200 mm

1шт.

5

19M8317

Screw

M8 X 40

6шт.

19M7867

Screw

M8 X 25

1шт.

RE67239

Screw

1шт.

6

19M8291

Screw

M8 X 35

1шт.

7

R121424

O-Ring

1шт.

8

R121411

Cover

1шт.

9

19M7775

Screw

M6 X 16

3шт.

10

19M7801

Screw

M8 X 60

1шт.

11

RE516340

Seal

(MARKED RE52346 OR RE50 5515 ) (SUB FOR RE59810)

1шт.

12

51M7044

O-Ring

17.300 X 2.200 mm

1шт.

13

RE501938

Plug

1шт.

14

RE505501

Bleed Valve

1шт.

15

RE515978

Cover Kit

1шт.

16

14M7296

Flange Nut

M10

6шт.

17

19M7979

Screw

M8 X 55

2шт.

18

R123584

Stud

4шт.

19

R134518

Stud

2шт.

20

RE508566

Insert

Water Pump Insert Repair

1шт.
