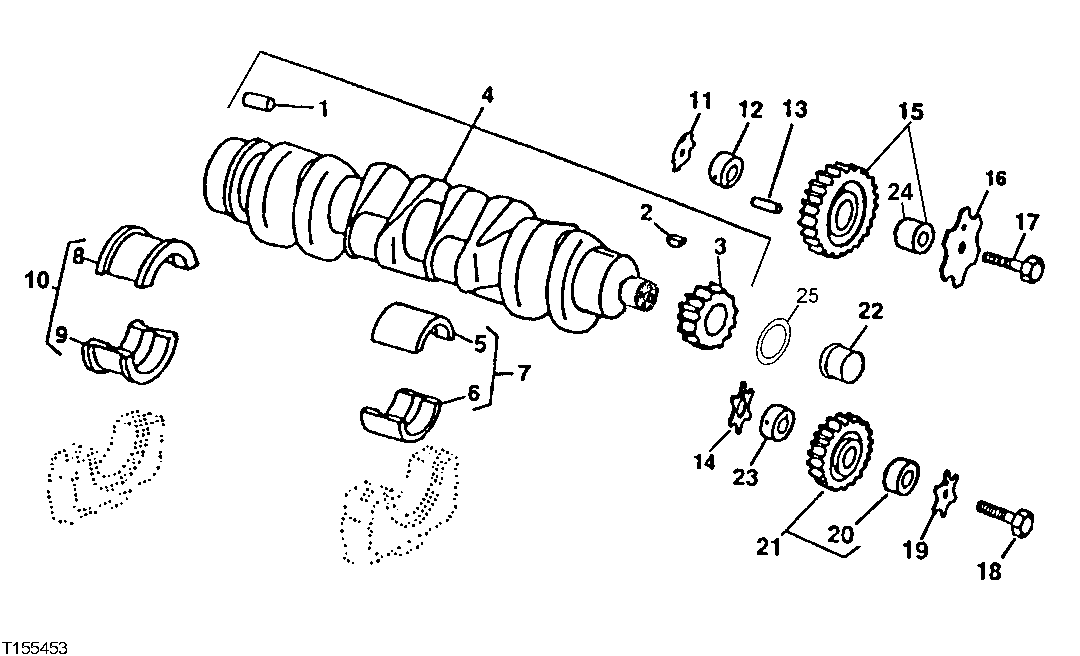

Запчасти John Deere 10 67 - Crankshaft, Gear and Main Bearings (704562 - 803026) 0401B Crankshaft And Main Bearing 4045TT054 4045TT054

1

R48685

Dowel Pin

1шт.

2

26M4224

Shaft Key

4 X 16 mm (USE WITH RE50618)

1шт.

R505609

Shaft Key

(USE WITH RE504638)

1шт.

3

R120631

Gear

(Z=30)

1шт.

4

RE50618

Crankshaft

(MARKED R113596 ) (SUB RE504638 A ND RE516340 ) (ALSO ORDER RE59811)

1шт.

RE504638

Crankshaft

(MARKED R113596 ) (ALSO ORDER RE516340)

1шт.

SE501654

Crankshaft Reman

(A) MARKED R113596; REMAN FOR RE504638

1шт.

5

Bearing

(STD) (UPPER) (MARKED R123561)

4шт.

6

Bearing

(STD) (LOWER) (MARKED R123562)

4шт.

7

RE65165

Bearing Kit

(STD)

4шт.

8

Bearing

(STD) (UPPER) (MARKED R123563)

1шт.

9

Bearing

(STD) (LOWER) (MARKED R123564)

1шт.

10

RE65168

Bearing Kit

(STD)

1шт.

11

R123174

Lock Washer

1шт.

R101225

Thrust Washer

1шт.

12

R120641

Shaft

(UPPER)

1шт.

R109863

Shaft

1шт.

13

34H288

Spring Pin

3/16" X 1-3/4"

1шт.

14

R101225

Thrust Washer

1шт.

15

RE56313

Gear

(MARKED R120635)

1шт.

RE500631

Gear

(MARKED R500363)

1шт.

16

R131206

Thrust Washer

1шт.

R131283

Thrust Washer

1шт.

17

19M8997

Screw

M10 X 65

1шт.

19M8844

Screw

M10 X 60

1шт.

18

19M8966

Screw

M10 X 50

1шт.

19

R131283

Thrust Washer

1шт.

20

R114193

Bushing

1шт.

21

RE56369

Gear

1шт.

22

RE59811

Sleeve

1шт.

23

R114194

Shaft

1шт.

24

Bushing

1шт.

T20034

Bushing

1шт.

25

RE516340

Seal Kit

(USE WITH RE504638)

1шт.
