64 - Engine Flywheel Housing (026650 - )

Запчасти John Deere 10 64 - Engine Flywheel Housing (026650 - ) 0433A Flywheel, Housing & Fastenings 4045TP052 4045TP052

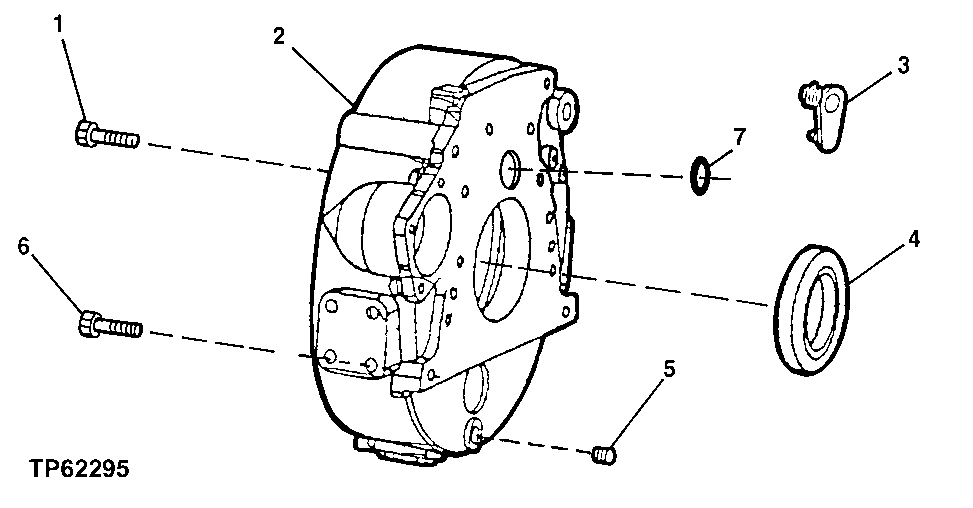

Схема запчастей John Deere 10 - 64 - Engine Flywheel Housing (026650 - ) 0433A Flywheel, Housing & Fastenings 4045TP052 4045TP052
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

R135918

Bolt

8шт.

2

R123208

Housing

1шт.

3

R131768

Plug

1шт.

4

RE44574

Seal

1шт.

5

RE57836

Pipe Plug

12.700 mm (1/2") (SUB FOR 15H624)

1шт.

6

19M8306

Screw

M12 X 50

4шт.

7

R61467

O-Ring

1шт.
