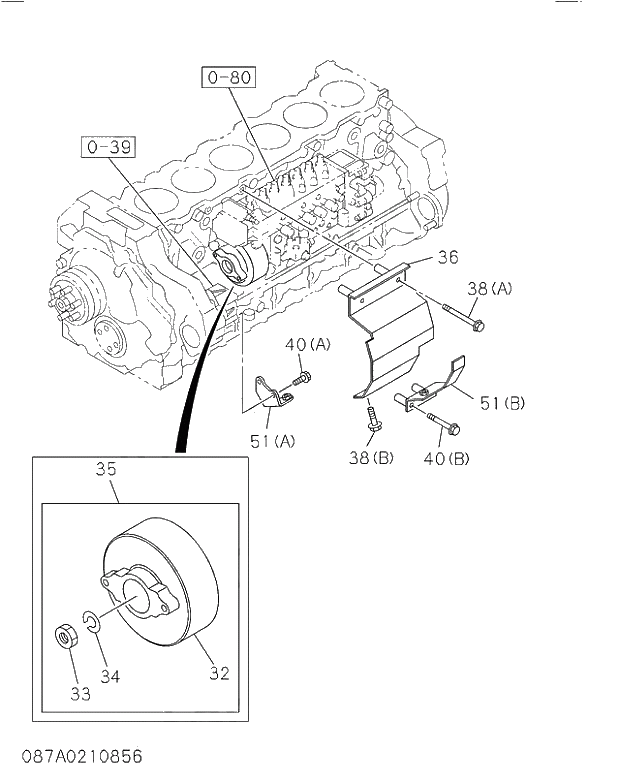

1
1157820210
COUPLING; INJ PUMP DRIVE
200007-
1шт.
2
1157891620
BOLT; COUPLING FIX,INJ PUMP
200007-
1шт.
5
1157890210
WASHER; COUPLING FIX,INJ PUMP
200007-
1шт.
006(A)
1157892230
COUPLING; CROSS,INJ PUMP DRIVE
200007-
1шт.
7
1156191810
PLATE; COUPLING,COUPLING SIDE
200007-
1шт.
8
1156191830
BOLT; PLATE TO CROSS COUPLING
200007-
2шт.
9
1157891630
BOLT; PLATE TO COUPLING,INJ PUMP
200007-
2шт.
10
1157891790
NUT; PLATE TO COUPLING,INJ PUMP
200007-
2шт.
13
1157890960
PLATE; COUPLING,TIMER SIDE,INJ PUMP
200007-
1шт.
14
1157890980
BOLT; PLATE TO CROSS COUPLING,TIMER SIDE
200007-
2шт.
20
1157890430
BOLT; COUPLING TO INJ PUMP
200007-
2шт.
36
1112192010
COVER; COUPLING
C 200007-200404
1шт.
36
1112192090
COVER; COUPLING
200405-
1шт.
038(A)
281810700
BOLT; COVER,COUPLING
A 200007-200512
2шт.
038(A)
281510700
BOLT; COVER,COUPLING
200601-
2шт.
038(B)
286810200
BOLT; COVER,COUPLING
A 200007-200512
2шт.
038(B)
286510200
BOLT; COVER,COUPLING
200601-
2шт.
040(A)
281810120
BOLT; STAY
A 200007-200512
2шт.
040(A)
281510120
BOLT; STAY
200601-
2шт.
040(B)
281810600
BOLT; STAY
A 200007-200512
2шт.
040(B)
281510600
BOLT; STAY
200601-
2шт.
051(A)
1197552130
BRACKET; COVER INJ
200007-
1шт.
051(B)
1197552091
BRACKET; COVER INJ
200007-
1шт.
