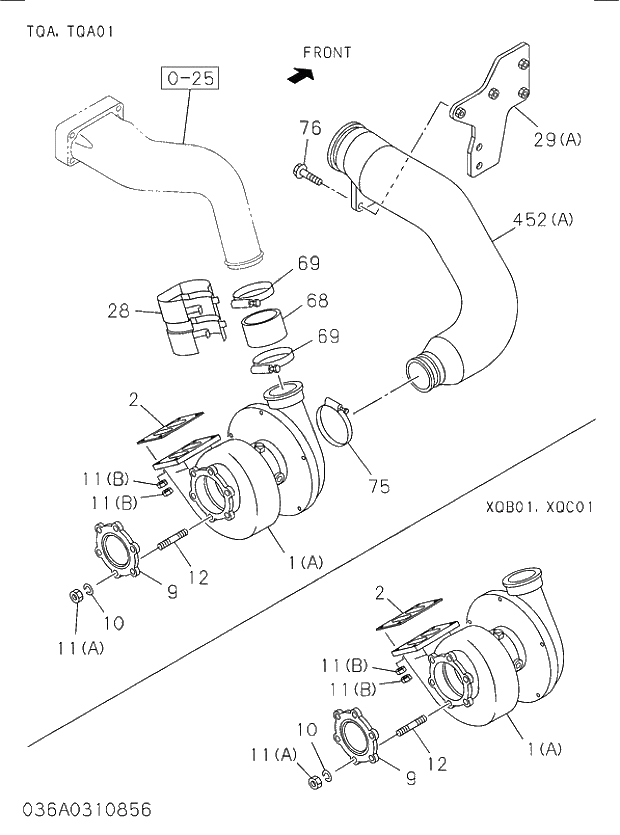

001(A)
1144003830
TURBOCHARGER ASM
200007-
1шт.
2
1141451870
GASKET; TURBOCHARGER TO EXH MANIF
200007-
1шт.
9
1141452030
GASKET; TURBOCHARGER TO EXH DUCT
200007-
1шт.
10
1095000070
WASHER; LK,TURBOCHARGER
200007-
6шт.
011(A)
1094000270
NUT; TURBOCHARGER
200007-
6шт.
011(B)
1094200050
NUT; TURBOCHARGER
200007-
8шт.
12
1093021060
STUD; TURBOCHARGER
200007-
6шт.
28
1141812440
PROTECTOR; HEAT,HOSE,AIR DUCT
200007-
1шт.
029(A)
1141194422
BRACKET; INL PIPE,ACL TO TURBOCHARGER
200007-
1шт.
68
1093609170
HOSE; RUBBER,TURBOCHARGER TO INL COVER
200007-
1шт.
69
1097071140
CLIP; RUBBER HOSE,TURBOCHARGER
A 200007-200602
2шт.
69
1097071980
CLIP; RUBBER HOSE,TURBOCHARGER
200603-200810
2шт.
69
1097071140
CLIP; RUBBER HOSE,TURBOCHARGER
200811-
2шт.
75
1097071440
CLIP; HOSE,ACL
200007-
1шт.
76
280810500
BOLT; AIR DUCT
A 200007-200202
2шт.
76
281810500
BOLT; AIR DUCT
A 200203-200512
2шт.
76
280510500
BOLT; AIR DUCT
200601-
2шт.
452(A)
1141343520
DUCT; AIR
200007-
1шт.
001(A)
1144003830
TURBOCHARGER ASM
200007-
1шт.
2
1141451870
GASKET; TURBOCHARGER TO EXH MANIF
200007-
1шт.
9
1141452030
GASKET; TURBOCHARGER TO EXH DUCT
200007-
1шт.
10
1095000070
WASHER; LK,TURBOCHARGER
200007-
6шт.
011(A)
1094000270
NUT; TURBOCHARGER
200007-
6шт.
011(B)
1094200050
NUT; TURBOCHARGER
200007-
8шт.
12
1093021060
STUD; TURBOCHARGER
200007-
6шт.
28
1141812440
PROTECTOR; HEAT,HOSE,AIR DUCT
200007-
1шт.
029(A)
1141194422
BRACKET; INL PIPE,ACL TO TURBOCHARGER
200007-
1шт.
68
1093609170
HOSE; RUBBER,TURBOCHARGER TO INL COVER
200007-
1шт.
69
1097071140
CLIP; RUBBER HOSE,TURBOCHARGER
A 200007-200602
2шт.
69
1097071980
CLIP; RUBBER HOSE,TURBOCHARGER
200603-200810
2шт.
69
1097071140
CLIP; RUBBER HOSE,TURBOCHARGER
200811-
2шт.
75
1097071440
CLIP; HOSE,ACL
200007-
1шт.
76
280810500
BOLT; AIR DUCT
A 200007-200202
2шт.
76
281810500
BOLT; AIR DUCT
A 200203-200512
2шт.
76
280510500
BOLT; AIR DUCT
200601-
2шт.
452(A)
1141343520
DUCT; AIR
200007-
1шт.
