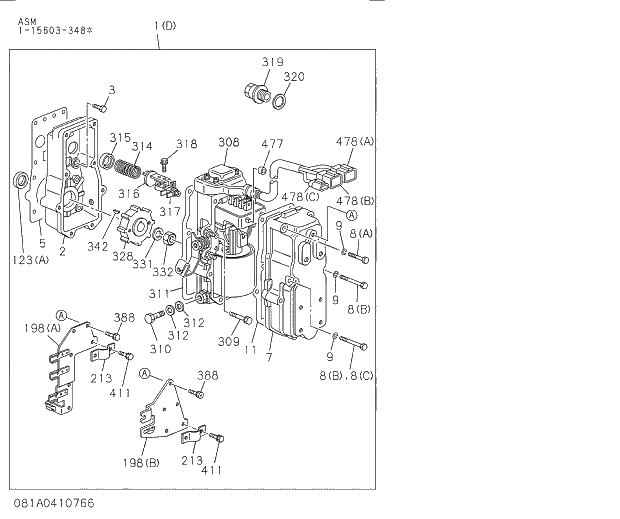

Справочник запчастей Isuzu 081 GOVERNOR; INJECTION PUMP 081 GOVERNOR; INJECTION PUMP со схемами

001(C)

1157709161

GOVERNOR ASM; INJ PUMP

198808-

1шт.

002

1157213500

HOUSING; GOV,INJ PUMP

198808-

1шт.

003

9813251870

BOLT; GOV HSG,INJ PUMP

198808-

4шт.

004

9813255270

PLATE; START SPRING,GOV

198808-

1шт.

005

1157790860

GASKET; GOV TO INJ PUMP HSG

198808-

1шт.

007

1157213510

COVER; GOV HSG,INJ PUMP

198808-

1шт.

008(A)

5157290540

BOLT; GOV COVER,INJ PUMP

198808-

2шт.

008(B)

5157290330

BOLT; GOV COVER,INJ PUMP

198808-

4шт.

011

1157790940

GASKET; COVER TO HSG,GOV

198808-

1шт.

012

1157220170

FLYWEIGHT ASM; GOV

198808-

1шт.

013

5196190490

KEY; FLYWEIGHT,GOV

198808-

1шт.

013

9813250300

KEY; FLYWEIGHT,GOV

198808-

1шт.

015

5157290340

WASHER; LK,FLYWEIGHT FIX,GOV

198808-

1шт.

016

9813250860

NUT; FLYWEIGHT FIX,GOV

198808-

1шт.

017

1157298910

SHIM; FLYWEIGHT SLEEVE,GOV

198808-

017

1157298920

SHIM; FLYWEIGHT SLEEVE,GOV

198808-

017

1157298930

SHIM; FLYWEIGHT SLEEVE,GOV

198808-

017

5157292860

SHIM; FLYWEIGHT SLEEVE,GOV

198808-

017

5157292870

SHIM; FLYWEIGHT SLEEVE,GOV

198808-

017

9813250880

SHIM; FLYWEIGHT SLEEVE,GOV

198808-

017

9813255510

SHIM; FLYWEIGHT SLEEVE,GOV

198808-

017

9813255520

SHIM; FLYWEIGHT SLEEVE,GOV

198808-

017

9813255530

SHIM; FLYWEIGHT SLEEVE,GOV

198808-

018

5157293720

SLEEVE; GOV

198808-

1шт.

021

1157259120

LEVER ASM; GUIDE,GOV

198808-

1шт.

023

1157258810

LINK; LEVER TO CONT RACK,GOV

198808-

1шт.

024

5157231600

SPRING; START,GOV,INJ PUMP

198808-

1шт.

025

9091854040

RING; SNAP

198808-

1шт.

027

1157293160

PIN; SNAP,CONN PIN,CONT RACK

198808-

1шт.

031

1157294750

WASHER; LK,CONT RACK,GOV

198808-

1шт.

032

1157294760

SCREW; CONT RACK,GOV

198808-

1шт.

037

1157259130

LEVER ASM; TENSION,GOV

198808-

1шт.

040

1157795800

SCREW; LEVER ADJ,GOV

198808-

1шт.

041

1157232680

SPRING CAPSULE; IDLE CONT,GOV

198808-

1шт.

042

9008130230

NUT; SPRING CAPSULE,IDLE CONT,GOV

198808-

1шт.

043

9813255390

NUT; IDLING CONT SPRING,GOV

198808-

1шт.

044

1157235610

SPRING CAPSULE; IDLE CONT,GOV

198808-

1шт.

045

8970416600

LEVER ASM; GOV,INJ PUMP

198808-

1шт.

059

1157213520

COVER; GOV COVER

198808-

1шт.

060(A)

5157290630

BOLT; COVER FIX,GOV COVER

198808-

1шт.

060(B)

9019006160

BOLT; COVER FIX,GOV COVER

198808-

3шт.

063

1157795810

GASKET; COVER TO GOV COVER

198808-

1шт.

071

5157230880

SPRING; CONT LEVER,GOV

198808-

1шт.

075

5157292180

TUBE; RETURN SPRING,STOPPER LEVER,GOV

198808-

1шт.

090

9813251770

SCREW; FULL LOAD ADJ,GOV

198808-

1шт.

091

1157232840

SPRING CAPSULE; ADJ,GOV

198808-

1шт.

093(A)

1157795080

NUT; ADJ SCREW LK,INJ PUMP GOV

198808-

1шт.

093(B)

9844100270

NUT; ADJ SCREW LK,INJ PUMP GOV

198808-

1шт.

093(C)

1157299560

NUT; ADJ SCREW LK,INJ PUMP GOV

198808-

1шт.

093(D)

1157290550

NUT; ADJ SCREW LK,INJ PUMP GOV

198808-

1шт.

093(E)

1157290610

NUT; ADJ SCREW LK,INJ PUMP GOV

198808-

1шт.

094

1157795090

SCREW; ADJ,CONT LEVER,GOV

198808-

1шт.

096

5157290530

PLUG; LEVER SHAFT,GOV

198808-

1шт.

099

1157297300

PIN; TENSION LEVER,GOV

198808-

1шт.

101

8941445880

GASKET; ADJ SPRING CAPSULE,GOV

198808-

2шт.

103

1157290920

NUT; CAP,ADJ SPRING CAPSULE,GOV

198808-

1шт.

104(A)

1157795650

CAP; LOCK NUT,ADJ SCREW

198808-

1шт.

104(B)

8971796700

CAP; LOCK NUT,ADJ SCREW

198808-

1шт.

105

1157257570

LEVER; SPD CONT,GOV

198808-

1шт.

106

9813250300

KEY; SWIVEL LEVER,GOV

198808-

1шт.

107

9813254880

WASHER; SWIVEL LEVER,GOV

198808-

1шт.

108

1157293010

COLLAR; SWIVEL LEVER,GOV

198808-

1шт.

109(A)

1157290990

SHIM; SWIVEL LEVER,GOV

198808-

1шт.

109(B)

9813251730

SHIM; SWIVEL LEVER,GOV

198808-

1шт.

110

1157795760

SEAL; OIL,SWIVEL LEVER,GOV

198808-

1шт.

111(A)

8970242390

BUSHING; SWIVEL LEVER,GOV

198808-

1шт.

111(B)

8970242400

BUSHING; SWIVEL LEVER,GOV

198808-

1шт.

112

1157795730

GASKET; SWIVEL LEVER,GOV

198808-

2шт.

113

9091854150

RING; SNAP,SWIVEL LEVER,GOV

198808-

2шт.

116

1157258860

LEVER; ENG STOP,GOV

198808-

1шт.

117

1157231610

SPRING; STOP LEVER,GOV

198808-

1шт.

118

1157294640

COLLAR; CONT SHAFT,GOV

198808-

1шт.

119

1157292360

NUT; ENG STOP LEVER,GOV

198808-

1шт.

120

1835794920

WASHER; LK,SPD ADJ LEVER,GOV

198808-

1шт.

122

1157792300

WASHER; CONT SHAFT,GOV

198808-

122

1157792310

WASHER; CONT SHAFT,GOV

198808-

123(C)

1096253100

SEAL; OIL,CONT SHAFT,GOV

198808-

2шт.

128

1157795780

SHIM; CONT SHAFT,GOV

198808-

1шт.

130

1157255690

LEVER; CONT,GOV

198808-

1шт.

131

1157794970

SCREW; LEVER TO SHAFT,GOV

198808-

1шт.

145

1157290410

CAP; GOV COVER,INJ PUMP

198808-

1шт.

146

9813255280

GASKET; COVER CAP,GOV

198808-

1шт.

153

1157299790

GASKET; GOV HSG,INJ PUMP

198808-

1шт.

154

1157297350

BOLT; GOV HSG

198808-

1шт.

156

1835794920

WASHER; GOV HSG

198808-

1шт.

157

9813251870

BOLT; START SPRING PLATE,GOV

198808-

4шт.

158(B)

1157211820

COVER; GOV HSG

198808-

1шт.

159(A)

9019006160

BOLT; COVER

198808-

4шт.

160

1157290150

GASKET; PLUG TO HSG

198808-

1шт.

161

1157290380

PLUG; HSG

198808-

1шт.

212

1157795790

PLATE; GOV

198808-

1шт.

217(C)

1157293380

SHIM; GOV

198808-

264

1157794610

CONNECTOR; CONT RACK,GOV

198808-

1шт.

267

1157790310

BOLT; CONN,CONT RACK,GOV

198808-

1шт.

291

1157791960

RING; SNAP,CONT SHAFT,GOV

198808-

1шт.

401

1157795060

BRACKET; HOUSING

198808-

1шт.

423

1157795770

SHAFT; CONT,GOV HSG,INJ PUMP

198808-

1шт.

429(B)

8942276020

GASKET; CAP NUT

198808-

2шт.

430

1157795070

CAP NUT; ADJ LEVER

198808-

1шт.

474

1157795820

ADAPTER; GOVERNOR,INJ PUMP

198808-

1шт.

001(C)

1157709161

GOVERNOR ASM; INJ PUMP

198808-

1шт.

002

1157213500

HOUSING; GOV,INJ PUMP

198808-

1шт.

003

9813251870

BOLT; GOV HSG,INJ PUMP

198808-

4шт.

004

9813255270

PLATE; START SPRING,GOV

198808-

1шт.

005

1157790860

GASKET; GOV TO INJ PUMP HSG

198808-

1шт.

007

1157213510

COVER; GOV HSG,INJ PUMP

198808-

1шт.

008(A)

5157290540

BOLT; GOV COVER,INJ PUMP

198808-

2шт.

008(B)

5157290330

BOLT; GOV COVER,INJ PUMP

198808-

4шт.

011

1157790940

GASKET; COVER TO HSG,GOV

198808-

1шт.

012

1157220170

FLYWEIGHT ASM; GOV

198808-

1шт.

013

5196190490

KEY; FLYWEIGHT,GOV

198808-

1шт.

013

9813250300

KEY; FLYWEIGHT,GOV

198808-

1шт.

015

5157290340

WASHER; LK,FLYWEIGHT FIX,GOV

198808-

1шт.

016

9813250860

NUT; FLYWEIGHT FIX,GOV

198808-

1шт.

017

1157298910

SHIM; FLYWEIGHT SLEEVE,GOV

198808-

017

1157298920

SHIM; FLYWEIGHT SLEEVE,GOV

198808-

017

1157298930

SHIM; FLYWEIGHT SLEEVE,GOV

198808-

017

5157292860

SHIM; FLYWEIGHT SLEEVE,GOV

198808-

017

5157292870

SHIM; FLYWEIGHT SLEEVE,GOV

198808-

017

9813250880

SHIM; FLYWEIGHT SLEEVE,GOV

198808-

017

9813255510

SHIM; FLYWEIGHT SLEEVE,GOV

198808-

017

9813255520

SHIM; FLYWEIGHT SLEEVE,GOV

198808-

017

9813255530

SHIM; FLYWEIGHT SLEEVE,GOV

198808-

018

5157293720

SLEEVE; GOV

198808-

1шт.

021

1157259120

LEVER ASM; GUIDE,GOV

198808-

1шт.

023

1157258810

LINK; LEVER TO CONT RACK,GOV

198808-

1шт.

024

5157231600

SPRING; START,GOV,INJ PUMP

198808-

1шт.

025

9091854040

RING; SNAP

198808-

1шт.

027

1157293160

PIN; SNAP,CONN PIN,CONT RACK

198808-

1шт.

031

1157294750

WASHER; LK,CONT RACK,GOV

198808-

1шт.

032

1157294760

SCREW; CONT RACK,GOV

198808-

1шт.

037

1157259130

LEVER ASM; TENSION,GOV

198808-

1шт.

040

1157795800

SCREW; LEVER ADJ,GOV

198808-

1шт.

041

1157232680

SPRING CAPSULE; IDLE CONT,GOV

198808-

1шт.

042

9008130230

NUT; SPRING CAPSULE,IDLE CONT,GOV

198808-

1шт.

043

9813255390

NUT; IDLING CONT SPRING,GOV

198808-

1шт.

044

1157235610

SPRING CAPSULE; IDLE CONT,GOV

198808-

1шт.

045

8970416600

LEVER ASM; GOV,INJ PUMP

198808-

1шт.

059

1157213520

COVER; GOV COVER

198808-

1шт.

060(A)

5157290630

BOLT; COVER FIX,GOV COVER

198808-

1шт.

060(B)

9019006160

BOLT; COVER FIX,GOV COVER

198808-

3шт.

063

1157795810

GASKET; COVER TO GOV COVER

198808-

1шт.

071

5157230880

SPRING; CONT LEVER,GOV

198808-

1шт.

075

5157292180

TUBE; RETURN SPRING,STOPPER LEVER,GOV

198808-

1шт.

090

9813251770

SCREW; FULL LOAD ADJ,GOV

198808-

1шт.

091

1157232840

SPRING CAPSULE; ADJ,GOV

198808-

1шт.

093(A)

1157795080

NUT; ADJ SCREW LK,INJ PUMP GOV

198808-

1шт.

093(B)

9844100270

NUT; ADJ SCREW LK,INJ PUMP GOV

198808-

1шт.

093(C)

1157299560

NUT; ADJ SCREW LK,INJ PUMP GOV

198808-

1шт.

093(D)

1157290550

NUT; ADJ SCREW LK,INJ PUMP GOV

198808-

1шт.

093(E)

1157290610

NUT; ADJ SCREW LK,INJ PUMP GOV

198808-

1шт.

094

1157795090

SCREW; ADJ,CONT LEVER,GOV

198808-

1шт.

096

5157290530

PLUG; LEVER SHAFT,GOV

198808-

1шт.

099

1157297300

PIN; TENSION LEVER,GOV

198808-

1шт.

101

8941445880

GASKET; ADJ SPRING CAPSULE,GOV

198808-

2шт.

103

1157290920

NUT; CAP,ADJ SPRING CAPSULE,GOV

198808-

1шт.

104(A)

1157795650

CAP; LOCK NUT,ADJ SCREW

198808-

1шт.

104(B)

8971796700

CAP; LOCK NUT,ADJ SCREW

198808-

1шт.

105

1157257570

LEVER; SPD CONT,GOV

198808-

1шт.

106

9813250300

KEY; SWIVEL LEVER,GOV

198808-

1шт.

107

9813254880

WASHER; SWIVEL LEVER,GOV

198808-

1шт.

108

1157293010

COLLAR; SWIVEL LEVER,GOV

198808-

1шт.

109(A)

1157290990

SHIM; SWIVEL LEVER,GOV

198808-

1шт.

109(B)

9813251730

SHIM; SWIVEL LEVER,GOV

198808-

1шт.

110

1157795760

SEAL; OIL,SWIVEL LEVER,GOV

198808-

1шт.

111(A)

8970242390

BUSHING; SWIVEL LEVER,GOV

198808-

1шт.

111(B)

8970242400

BUSHING; SWIVEL LEVER,GOV

198808-

1шт.

112

1157795730

GASKET; SWIVEL LEVER,GOV

198808-

2шт.

113

9091854150

RING; SNAP,SWIVEL LEVER,GOV

198808-

2шт.

116

1157258860

LEVER; ENG STOP,GOV

198808-

1шт.

117

1157231610

SPRING; STOP LEVER,GOV

198808-

1шт.

118

1157294640

COLLAR; CONT SHAFT,GOV

198808-

1шт.

119

1157292360

NUT; ENG STOP LEVER,GOV

198808-

1шт.

120

1835794920

WASHER; LK,SPD ADJ LEVER,GOV

198808-

1шт.

122

1157792300

WASHER; CONT SHAFT,GOV

198808-

122

1157792310

WASHER; CONT SHAFT,GOV

198808-

123(C)

1096253100

SEAL; OIL,CONT SHAFT,GOV

198808-

2шт.

128

1157795780

SHIM; CONT SHAFT,GOV

198808-

1шт.

130

1157255690

LEVER; CONT,GOV

198808-

1шт.

131

1157794970

SCREW; LEVER TO SHAFT,GOV

198808-

1шт.

145

1157290410

CAP; GOV COVER,INJ PUMP

198808-

1шт.

146

9813255280

GASKET; COVER CAP,GOV

198808-

1шт.

153

1157299790

GASKET; GOV HSG,INJ PUMP

198808-

1шт.

154

1157297350

BOLT; GOV HSG

198808-

1шт.

156

1835794920

WASHER; GOV HSG

198808-

1шт.

157

9813251870

BOLT; START SPRING PLATE,GOV

198808-

4шт.

158(B)

1157211820

COVER; GOV HSG

198808-

1шт.

159(A)

9019006160

BOLT; COVER

198808-

4шт.

160

1157290150

GASKET; PLUG TO HSG

198808-

1шт.

161

1157290380

PLUG; HSG

198808-

1шт.

212

1157795790

PLATE; GOV

198808-

1шт.

217(C)

1157293380

SHIM; GOV

198808-

264

1157794610

CONNECTOR; CONT RACK,GOV

198808-

1шт.

267

1157790310

BOLT; CONN,CONT RACK,GOV

198808-

1шт.

291

1157791960

RING; SNAP,CONT SHAFT,GOV

198808-

1шт.

401

1157795060

BRACKET; HOUSING

198808-

1шт.

423

1157795770

SHAFT; CONT,GOV HSG,INJ PUMP

198808-

1шт.

429(B)

8942276020

GASKET; CAP NUT

198808-

2шт.

430

1157795070

CAP NUT; ADJ LEVER

198808-

1шт.

474

1157795820

ADAPTER; GOVERNOR,INJ PUMP

198808-

1шт.

Запчасти Isuzu 081 GOVERNOR; INJECTION PUMP 081 GOVERNOR; INJECTION PUMP
