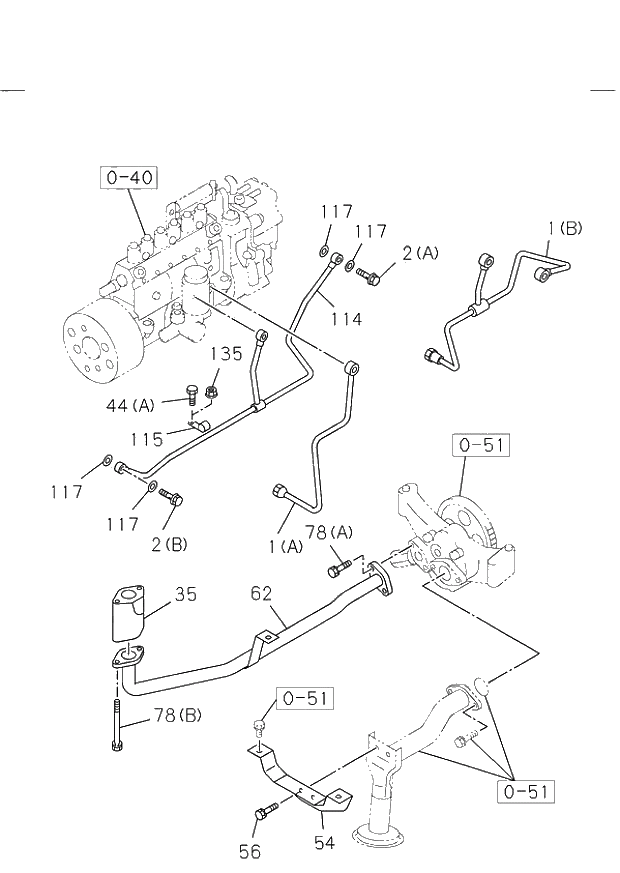

Запчасти Isuzu 052 OIL AND VACUUM PIPING; ENGINE. 052 OIL AND VACUUM PIPING; ENGINE.
№
Артикул
Название
Примечание
Количество
001(A)
1133126120
PIPE; OIL,INJ PUMP TO C/BL
C 198808-199212
1шт.
001(A)
1133133370
PIPE; OIL,INJ PUMP TO C/BL
199301-
1шт.
002(A)
1096751830
BOLT; EYE,OIL PIPE
198808-200112
1шт.
002(B)
1096750770
BOLT; EYE,OIL PIPE
198808-200112
1шт.
002(B)
1096750770
BOLT; EYE,OIL PIPE
A 200201-200805
2шт.
002(B)
8973722380
BOLT; EYE,OIL PIPE
200806-
2шт.
35
1132600860
VALVE ASM; DRAIN BACK
198808-
1шт.
040(A)
500408320
BOLT; OIL PIPE
199005-
2шт.
040(B)
500408250
BOLT; OIL PIPE
A 199005-200512
2шт.
040(B)
505408250
BOLT; OIL PIPE
200601-
2шт.
040(C)
500510250
BOLT; OIL PIPE
C 199005-200906
2шт.
040(C)
505510250
BOLT; OIL PIPE
200907-
2шт.
044(B)
500408160
BOLT; CLIP,OIL PIPE
199005-
1шт.
044(C)
500406250
BOLT; CLIP,OIL PIPE
C 199106-200906
1шт.
044(C)
505406250
BOLT; CLIP,OIL PIPE
200907-
1шт.
048(A)
5097040371
CLIP; OIL PIPE
198808-
1шт.
048(A)
5097040371
CLIP; OIL PIPE
198808-
2шт.
54
1133451420
STAY; OIL STRAINER
A 198808-199701
1шт.
54
1133451820
STAY; OIL STRAINER
199702-
1шт.
56
501408160
BOLT; STAY TO BRKT
A 198808-200512
2шт.
56
506408160
BOLT; STAY TO BRKT
200601-
2шт.
62
1133123960
PIPE; OIL,PUMP TO C/BL
A 198808-199701
1шт.
62
1133132740
PIPE; OIL,PUMP TO C/BL
199702-
1шт.
063(A)
1133126830
PIPE; OIL,TURBOCHARGER FEED
C 198808-199212
1шт.
063(A)
1133133390
PIPE; OIL,TURBOCHARGER FEED
199301-
1шт.
078(A)
500408200
BOLT; OIL PIPE,PUMP TO BODY
C 199005-200906
2шт.
078(A)
505408200
BOLT; OIL PIPE,PUMP TO BODY
200907-
2шт.
078(B)
501408000
BOLT; OIL PIPE,PUMP TO BODY
C 199005-200906
2шт.
078(B)
506408000
BOLT; OIL PIPE,PUMP TO BODY
200907-
2шт.
114
1133126100
PIPE ASM; OIL,BODY
198808-
1шт.
115
9095246250
CLIP; PIPE,INJ PUMP
A 198808-200606
2шт.
115
952346250
CLIP; PIPE,INJ PUMP
200607-
2шт.
135
911501080
NUT; CLIP
A 199301-200602
1шт.
135
911801080
NUT; CLIP
200603-
1шт.
144(A)
1097004040
CLIP; OIL PIPE,INJ PUMP
198808-
2шт.
144(B)
1097005470
CLIP; OIL PIPE,INJ PUMP
198808-
1шт.
144(C)
1097004050
CLIP; OIL PIPE,INJ PUMP
198808-
2шт.
144(D)
1097005500
CLIP; OIL PIPE,INJ PUMP
198808-
1шт.
147(A)
1096234810
GASKET; OIL PIPE TO TURBOCHARGER
198808-
1шт.
147(B)
1096233590
GASKET; OIL PIPE TO TURBOCHARGER
198808-
1шт.
149
1133129910
PIPE; OIL RETURN,TURBOCHARGER
C 198808-199305
1шт.
149
1133134550
PIPE; OIL RETURN,TURBOCHARGER
C 199306-199312
1шт.
149
1133134960
PIPE; OIL RETURN,TURBOCHARGER
199401-
1шт.
150
1096232970
GASKET; OIL PIPE TO C/BL
198808-
1шт.
160(B)
1133129010
PIPE; OIL,PARTIAL FILTER FEED
C 198808-199105
1шт.
160(B)
1133131340
PIPE; OIL,PARTIAL FILTER FEED
C 199106-199212
1шт.
160(B)
1133133400
PIPE; OIL,PARTIAL FILTER FEED
199301-
1шт.
440(A)
9091505100
WASHER; LK,FILTER
A 198808-200603
1шт.
440(A)
915105100
WASHER; LK,FILTER
200604-
1шт.
440(B)
9091505080
WASHER; LK,FILTER
A 198808-200512
2шт.
001(A)
1133126120
PIPE; OIL,INJ PUMP TO C/BL
C 198808-199212
1шт.
001(A)
1133133370
PIPE; OIL,INJ PUMP TO C/BL
199301-
1шт.
002(A)
1096751830
BOLT; EYE,OIL PIPE
198808-200112
1шт.
002(B)
1096750770
BOLT; EYE,OIL PIPE
198808-200112
1шт.
002(B)
1096750770
BOLT; EYE,OIL PIPE
A 200201-200805
2шт.
002(B)
8973722380
BOLT; EYE,OIL PIPE
200806-
2шт.
35
1132600860
VALVE ASM; DRAIN BACK
198808-
1шт.
040(A)
500408320
BOLT; OIL PIPE
199005-
2шт.
040(B)
500408250
BOLT; OIL PIPE
A 199005-200512
2шт.
040(B)
505408250
BOLT; OIL PIPE
200601-
2шт.
040(C)
500510250
BOLT; OIL PIPE
C 199005-200906
2шт.
040(C)
505510250
BOLT; OIL PIPE
200907-
2шт.
044(B)
500408160
BOLT; CLIP,OIL PIPE
199005-
1шт.
044(C)
500406250
BOLT; CLIP,OIL PIPE
C 199106-200906
1шт.
044(C)
505406250
BOLT; CLIP,OIL PIPE
200907-
1шт.
048(A)
5097040371
CLIP; OIL PIPE
198808-
1шт.
048(A)
5097040371
CLIP; OIL PIPE
198808-
2шт.
54
1133451420
STAY; OIL STRAINER
A 198808-199701
1шт.
54
1133451820
STAY; OIL STRAINER
199702-
1шт.
56
501408160
BOLT; STAY TO BRKT
A 198808-200512
2шт.
56
506408160
BOLT; STAY TO BRKT
200601-
2шт.
62
1133123960
PIPE; OIL,PUMP TO C/BL
A 198808-199701
1шт.
62
1133132740
PIPE; OIL,PUMP TO C/BL
199702-
1шт.
063(A)
1133126830
PIPE; OIL,TURBOCHARGER FEED
C 198808-199212
1шт.
063(A)
1133133390
PIPE; OIL,TURBOCHARGER FEED
199301-
1шт.
078(A)
500408200
BOLT; OIL PIPE,PUMP TO BODY
C 199005-200906
2шт.
078(A)
505408200
BOLT; OIL PIPE,PUMP TO BODY
200907-
2шт.
078(B)
501408000
BOLT; OIL PIPE,PUMP TO BODY
C 199005-200906
2шт.
078(B)
506408000
BOLT; OIL PIPE,PUMP TO BODY
200907-
2шт.
114
1133126100
PIPE ASM; OIL,BODY
198808-
1шт.
115
9095246250
CLIP; PIPE,INJ PUMP
A 198808-200606
2шт.
115
952346250
CLIP; PIPE,INJ PUMP
200607-
2шт.
135
911501080
NUT; CLIP
A 199301-200602
1шт.
135
911801080
NUT; CLIP
200603-
1шт.
144(A)
1097004040
CLIP; OIL PIPE,INJ PUMP
198808-
2шт.
144(B)
1097005470
CLIP; OIL PIPE,INJ PUMP
198808-
1шт.
144(C)
1097004050
CLIP; OIL PIPE,INJ PUMP
198808-
2шт.
144(D)
1097005500
CLIP; OIL PIPE,INJ PUMP
198808-
1шт.
147(A)
1096234810
GASKET; OIL PIPE TO TURBOCHARGER
198808-
1шт.
147(B)
1096233590
GASKET; OIL PIPE TO TURBOCHARGER
198808-
1шт.
149
1133129910
PIPE; OIL RETURN,TURBOCHARGER
C 198808-199305
1шт.
149
1133134550
PIPE; OIL RETURN,TURBOCHARGER
C 199306-199312
1шт.
149
1133134960
PIPE; OIL RETURN,TURBOCHARGER
199401-
1шт.
150
1096232970
GASKET; OIL PIPE TO C/BL
198808-
1шт.
160(B)
1133129010
PIPE; OIL,PARTIAL FILTER FEED
C 198808-199105
1шт.
160(B)
1133131340
PIPE; OIL,PARTIAL FILTER FEED
C 199106-199212
1шт.
160(B)
1133133400
PIPE; OIL,PARTIAL FILTER FEED
199301-
1шт.
440(A)
9091505100
WASHER; LK,FILTER
A 198808-200603
1шт.
440(A)
915105100
WASHER; LK,FILTER
200604-
1шт.
440(B)
9091505080
WASHER; LK,FILTER
A 198808-200512
2шт.
Выбрано товаров: 110
