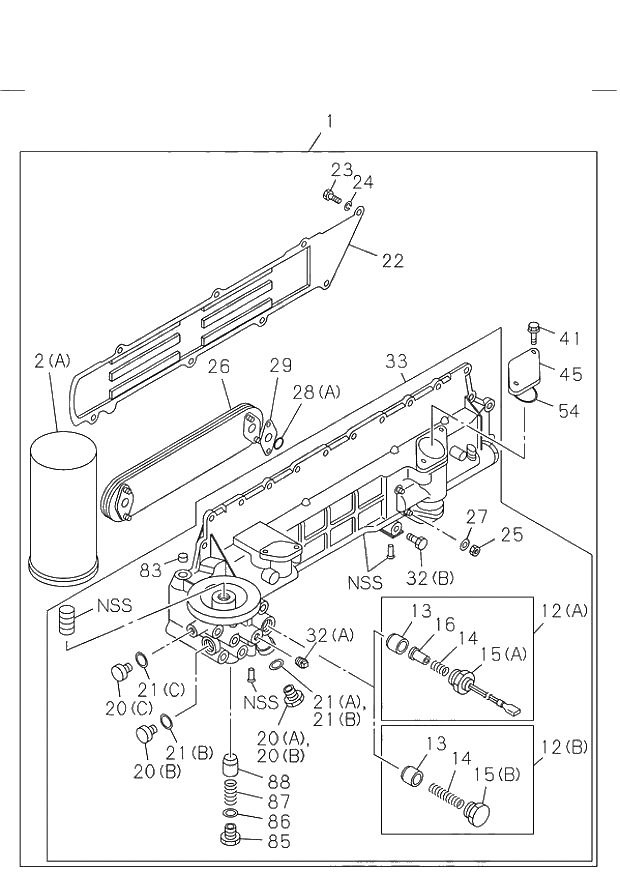

Справочник запчастей Isuzu 050 OIL COOLER AND OIL FILTER. 050 OIL COOLER AND OIL FILTER. со схемами

1

1132007324

FILTER & COOLER ASM; OIL

198808-199108

1шт.

1

1132008882

FILTER & COOLER ASM; OIL

199109-200303

1шт.

1

1132008882

FILTER & COOLER ASM; OIL

200304-

1шт.

002(A)

1132006451

ELEMENT; OIL FILTER

198808-199108

1шт.

002(A)

1132401681

ELEMENT; OIL FILTER

199109-

1шт.

012(A)

1132600700

VALVE ASM; BYPASS

198808-

1шт.

13

9132620100

VALVE; RELIEF

198808-

1шт.

14

1132630060

SPRING; RELIEF VLV

198808-

1шт.

015(A)

1132650210

PLUG; RELIEF VLV

198808-

1шт.

16

1132690020

VALVE ASM; RELIEF

198808-

1шт.

020(A)

1132191520

PLUG; COOLER BODY

198808-199908

3шт.

020(B)

1132191530

PLUG; COOLER BODY

198808-199908

2шт.

020(B)

1132191530

PLUG; COOLER BODY

199909-

4шт.

020(C)

1132193560

PLUG; COOLER BODY

199909-

1шт.

021(A)

1132191580

GASKET; PLUG

198808-199908

3шт.

021(B)

1132191590

GASKET; PLUG

198808-199908

2шт.

021(B)

1132191590

GASKET; PLUG

199909-

4шт.

021(C)

8943967550

GASKET; PLUG

199909-

1шт.

22

1132191551

GUIDE; WATER

198808-

1шт.

23

1132191560

SCREW; WATER GUIDE

198808-

7шт.

24

1132191570

WASHER; WATER GUIDE

198808-

7шт.

25

1217290740

NUT; CORE TO BODY

198808-199908

4шт.

25

1132193240

NUT; CORE TO BODY

199909-

4шт.

26

1217230390

CORE ASM; OIL COOLER

198808-199908

1шт.

26

1217230630

CORE ASM; OIL COOLER

199908-

1шт.

27

1217290750

WASHER; PL,CORE TO BODY

198808-199908

4шт.

028(A)

1217290760

GASKET; CORE TO BODY

198808-199908

2шт.

028(A)

8943968100

GASKET; CORE TO BODY

199909-

2шт.

29

1217290770

GASKET; CORE TO BODY

198808-199908

2шт.

29

8943949300

GASKET; CORE TO BODY

199909-

2шт.

032(A)

1132191491

PLUG; DRAIN

C 198808-199108

1шт.

032(A)

1132192951

PLUG; DRAIN

199109-

1шт.

032(B)

1132191510

PLUG; DRAIN

C 198808-199108

1шт.

032(B)

1132192760

PLUG; DRAIN

199109-

1шт.

33

1132111305

HOUSING ASM; COOLER

198808-

1шт.

41

1132191610

BOLT; COVER FIX

198808-199908

2шт.

41

286808250

BOLT; COVER FIX

199909-

2шт.

45

1132191720

COVER; OIL PORT

198808-

1шт.

54

1132191620

GASKET; OIL PIPE

198808-

1шт.

076(B)

501510350

BOLT; OIL FILTER

A 198808-200512

1шт.

076(B)

506510350

BOLT; OIL FILTER

200601-

1шт.

076(C)

501512350

BOLT; OIL FILTER

A 198808-200512

1шт.

076(C)

506512350

BOLT; OIL FILTER

200601-

1шт.

076(D)

1090200591

BOLT; OIL FILTER

198808-

1шт.

076(E)

5090200190

BOLT; OIL FILTER

198808-

2шт.

83

9111291280

CUP; SEALING,BODY,OIL COOLER & FILTER

198808-

1шт.

85

1132191460

PLUG; DRAIN UNIT,OIL FILTER

198808-

1шт.

86

1132191470

GASKET; DRAIN UNIT,OIL FILTER

198808-

1шт.

87

1132191480

SPRING; DRAIN UNIT,OIL FILTER

198808-

1шт.

88

9132620090

VALVE; DRAIN UNIT,OIL FILTER

198808-

1шт.

103(A)

501408280

BOLT; OIL COOLER

C 199005-200906

24шт.

103(A)

506408280

BOLT; OIL COOLER

200907-

24шт.

103(B)

5090000311

BOLT; OIL COOLER

198808-

2шт.

103(C)

9098012750

BOLT; OIL COOLER

198808-

2шт.

106

9091505080

WASHER; LK,OIL COOLER

A 198808-200603

4шт.

106

915105080

WASHER; LK,OIL COOLER

200604-

4шт.

107

9091605080

WASHER; PL,OIL COOLER

A 198808-200605

4шт.

107

916105080

WASHER; PL,OIL COOLER

200606-

4шт.

185

1131600171

VALVE; OIL RELIEF,OIL COOLER

198808-

1шт.

186

9095652280

GASKET; RELIEF VLV,OIL COOLER

198808-

1шт.

200

31573000

PIPE; VINYL,WATER DRAIN

198808-200112

1шт.

200

34573000

PIPE; VINYL,WATER DRAIN

200201-

1шт.

201

9099147010

PIPE; VINYL,OIL DRAIN

198808-

1шт.

208

1137212860

PIPE; WATER,HTR

198808-

1шт.

321

1096232970

GASKET; OIL FILTER TO C/BL

198808-

1шт.

331(A)

9091605100

WASHER; PL,OIL FILTER

A 198808-200605

1шт.

331(A)

916105100

WASHER; PL,OIL FILTER

200606-

1шт.

331(B)

9091605080

WASHER; PL,OIL FILTER

A 198808-200605

2шт.

331(B)

916105080

WASHER; PL,OIL FILTER

200606-

2шт.

338(B)

1132008472

FILTER ASM; OIL PARTIAL

C 198808-199706

1шт.

338(B)

1132009691

FILTER ASM; OIL PARTIAL

199707-

1шт.

390(B)

1132121603

BODY; OIL FILTER,PARTIAL

198808-

1шт.

391(A)

1132401583

CARTRIDGE; OIL FILTER,PARTIAL

198808-199706

2шт.

391(B)

1132401632

CARTRIDGE; OIL FILTER,PARTIAL

199707-

2шт.

462(A)

1097041000

CLIP; HOSE,DRAIN

198808-

1шт.

462(B)

8970157541

CLIP; HOSE,DRAIN

198808-

1шт.

469

1112191590

GASKET; OIL COOLER TO C/BL

A 198910-199602

1шт.

469

1112191771

GASKET; OIL COOLER TO C/BL

199603-

1шт.

471

8941235261

CLIP; HOSE

198808-

2шт.

535

1096601742

CONNECTOR; HEATER

198808-

1шт.

536

1093606690

HOSE; RUBBER,CONN

198808-

1шт.

1

1132007324

FILTER & COOLER ASM; OIL

198808-199108

1шт.

1

1132008882

FILTER & COOLER ASM; OIL

199109-200303

1шт.

1

1132008882

FILTER & COOLER ASM; OIL

200304-

1шт.

002(A)

1132006451

ELEMENT; OIL FILTER

198808-199108

1шт.

002(A)

1132401681

ELEMENT; OIL FILTER

199109-

1шт.

012(A)

1132600700

VALVE ASM; BYPASS

198808-

1шт.

13

9132620100

VALVE; RELIEF

198808-

1шт.

14

1132630060

SPRING; RELIEF VLV

198808-

1шт.

015(A)

1132650210

PLUG; RELIEF VLV

198808-

1шт.

16

1132690020

VALVE ASM; RELIEF

198808-

1шт.

020(A)

1132191520

PLUG; COOLER BODY

198808-199908

3шт.

020(B)

1132191530

PLUG; COOLER BODY

198808-199908

2шт.

020(B)

1132191530

PLUG; COOLER BODY

199909-

4шт.

020(C)

1132193560

PLUG; COOLER BODY

199909-

1шт.

021(A)

1132191580

GASKET; PLUG

198808-199908

3шт.

021(B)

1132191590

GASKET; PLUG

198808-199908

2шт.

021(B)

1132191590

GASKET; PLUG

199909-

4шт.

021(C)

8943967550

GASKET; PLUG

199909-

1шт.

22

1132191551

GUIDE; WATER

198808-

1шт.

23

1132191560

SCREW; WATER GUIDE

198808-

7шт.

24

1132191570

WASHER; WATER GUIDE

198808-

7шт.

25

1217290740

NUT; CORE TO BODY

198808-199908

4шт.

25

1132193240

NUT; CORE TO BODY

199909-

4шт.

26

1217230390

CORE ASM; OIL COOLER

198808-199908

1шт.

26

1217230630

CORE ASM; OIL COOLER

199908-

1шт.

27

1217290750

WASHER; PL,CORE TO BODY

198808-199908

4шт.

028(A)

1217290760

GASKET; CORE TO BODY

198808-199908

2шт.

028(A)

8943968100

GASKET; CORE TO BODY

199909-

2шт.

29

1217290770

GASKET; CORE TO BODY

198808-199908

2шт.

29

8943949300

GASKET; CORE TO BODY

199909-

2шт.

032(A)

1132191491

PLUG; DRAIN

C 198808-199108

1шт.

032(A)

1132192951

PLUG; DRAIN

199109-

1шт.

032(B)

1132191510

PLUG; DRAIN

C 198808-199108

1шт.

032(B)

1132192760

PLUG; DRAIN

199109-

1шт.

33

1132111305

HOUSING ASM; COOLER

198808-

1шт.

41

1132191610

BOLT; COVER FIX

198808-199908

2шт.

41

286808250

BOLT; COVER FIX

199909-

2шт.

45

1132191720

COVER; OIL PORT

198808-

1шт.

54

1132191620

GASKET; OIL PIPE

198808-

1шт.

076(B)

501510350

BOLT; OIL FILTER

A 198808-200512

1шт.

076(B)

506510350

BOLT; OIL FILTER

200601-

1шт.

076(C)

501512350

BOLT; OIL FILTER

A 198808-200512

1шт.

076(C)

506512350

BOLT; OIL FILTER

200601-

1шт.

076(D)

1090200591

BOLT; OIL FILTER

198808-

1шт.

076(E)

5090200190

BOLT; OIL FILTER

198808-

2шт.

83

9111291280

CUP; SEALING,BODY,OIL COOLER & FILTER

198808-

1шт.

85

1132191460

PLUG; DRAIN UNIT,OIL FILTER

198808-

1шт.

86

1132191470

GASKET; DRAIN UNIT,OIL FILTER

198808-

1шт.

87

1132191480

SPRING; DRAIN UNIT,OIL FILTER

198808-

1шт.

88

9132620090

VALVE; DRAIN UNIT,OIL FILTER

198808-

1шт.

103(A)

501408280

BOLT; OIL COOLER

C 199005-200906

24шт.

103(A)

506408280

BOLT; OIL COOLER

200907-

24шт.

103(B)

5090000311

BOLT; OIL COOLER

198808-

2шт.

103(C)

9098012750

BOLT; OIL COOLER

198808-

2шт.

106

9091505080

WASHER; LK,OIL COOLER

A 198808-200603

4шт.

106

915105080

WASHER; LK,OIL COOLER

200604-

4шт.

107

9091605080

WASHER; PL,OIL COOLER

A 198808-200605

4шт.

107

916105080

WASHER; PL,OIL COOLER

200606-

4шт.

185

1131600171

VALVE; OIL RELIEF,OIL COOLER

198808-

1шт.

186

9095652280

GASKET; RELIEF VLV,OIL COOLER

198808-

1шт.

200

31573000

PIPE; VINYL,WATER DRAIN

198808-200112

1шт.

200

34573000

PIPE; VINYL,WATER DRAIN

200201-

1шт.

201

9099147010

PIPE; VINYL,OIL DRAIN

198808-

1шт.

208

1137212860

PIPE; WATER,HTR

198808-

1шт.

321

1096232970

GASKET; OIL FILTER TO C/BL

198808-

1шт.

331(A)

9091605100

WASHER; PL,OIL FILTER

A 198808-200605

1шт.

331(A)

916105100

WASHER; PL,OIL FILTER

200606-

1шт.

331(B)

9091605080

WASHER; PL,OIL FILTER

A 198808-200605

2шт.

331(B)

916105080

WASHER; PL,OIL FILTER

200606-

2шт.

338(B)

1132008472

FILTER ASM; OIL PARTIAL

C 198808-199706

1шт.

338(B)

1132009691

FILTER ASM; OIL PARTIAL

199707-

1шт.

390(B)

1132121603

BODY; OIL FILTER,PARTIAL

198808-

1шт.

391(A)

1132401583

CARTRIDGE; OIL FILTER,PARTIAL

198808-199706

2шт.

391(B)

1132401632

CARTRIDGE; OIL FILTER,PARTIAL

199707-

2шт.

462(A)

1097041000

CLIP; HOSE,DRAIN

198808-

1шт.

462(B)

8970157541

CLIP; HOSE,DRAIN

198808-

1шт.

469

1112191590

GASKET; OIL COOLER TO C/BL

A 198910-199602

1шт.

469

1112191771

GASKET; OIL COOLER TO C/BL

199603-

1шт.

471

8941235261

CLIP; HOSE

198808-

2шт.

535

1096601742

CONNECTOR; HEATER

198808-

1шт.

536

1093606690

HOSE; RUBBER,CONN

198808-

1шт.
