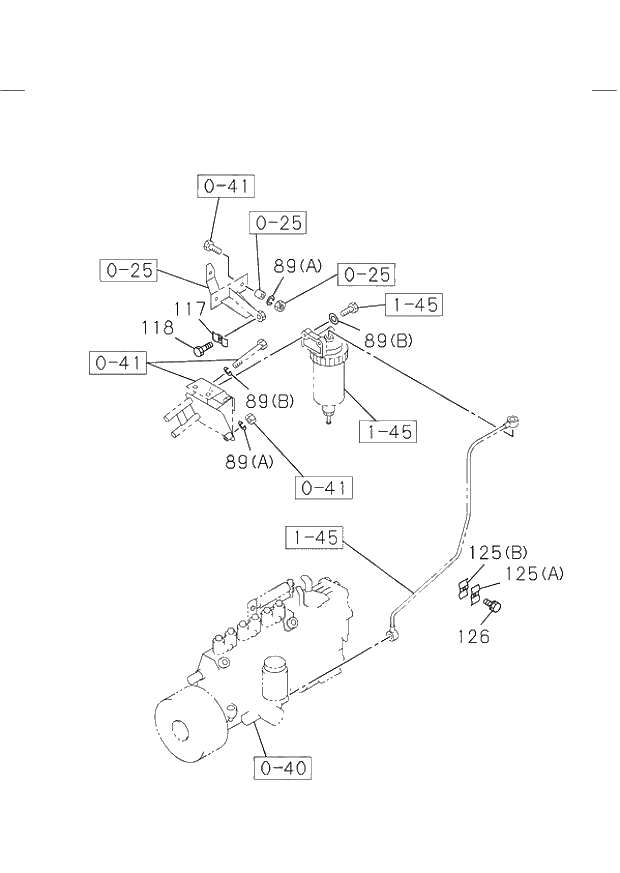

Запчасти Isuzu 042 FUEL PUMP AND PIPE. 042 FUEL PUMP AND PIPE.

089(A)

9091505080

WASHER; LK,BRKT

A 198808-200603

6шт.

089(A)

915105080

WASHER; LK,BRKT

200604-

6шт.

089(B)

9091505100

WASHER; LK,BRKT

A 198808-200603

2шт.

089(B)

915105100

WASHER; LK,BRKT

200604-

2шт.

107

1154150020

PIPE; FUEL,FEED PUMP TO FUEL FILTER

198808-

1шт.

108

1096750860

BOLT; JOINT,FUEL FILTER

198808-

1шт.

110

1096300850

GASKET; JOINT BOLT,FUEL PIPE

198808-

2шт.

112

1096750860

BOLT; JOINT,FUEL FILTER

198808-

2шт.

115

1096300850

GASKET; JOINT BOLT,FUEL PIPE

198808-

4шт.

117

9095250250

CLIP; FUEL PIPE

A 198808-200606

1шт.

117

952350250

CLIP; FUEL PIPE

200607-

1шт.

118

500408200

BOLT; CLIP,FUEL PIPE

C 199005-200906

1шт.

118

505408200

BOLT; CLIP,FUEL PIPE

200907-

1шт.

119

1154150030

PIPE; FUEL,FUEL FILTER TO INJ PUMP

198808-

1шт.

123

1154150051

PIPE; FUEL,FUEL FILTER LEAK OFF

C 198808-199706

1шт.

123

1154162090

PIPE; FUEL,FUEL FILTER LEAK OFF

199707-

1шт.

124

1094680021

NUT; CAP,FUEL PIPE

198808-

1шт.

125(A)

9097161140

CLIP; FUEL PIPE

198808-

2шт.

125(B)

9097161240

CLIP; FUEL PIPE

198808-

2шт.

126

500406250

BOLT; CLIP,FUEL PIPE

C 198808-200906

2шт.

126

505406250

BOLT; CLIP,FUEL PIPE

200907-

2шт.

207

1096300850

GASKET; EYE BOLT

198808-

3шт.

212(A)

1132600011

VALVE; OVERFLOW

198808-

1шт.

089(A)

9091505080

WASHER; LK,BRKT

A 198808-200603

6шт.

089(A)

915105080

WASHER; LK,BRKT

200604-

6шт.

089(B)

9091505100

WASHER; LK,BRKT

A 198808-200603

2шт.

089(B)

915105100

WASHER; LK,BRKT

200604-

2шт.

107

1154150020

PIPE; FUEL,FEED PUMP TO FUEL FILTER

198808-

1шт.

108

1096750860

BOLT; JOINT,FUEL FILTER

198808-

1шт.

110

1096300850

GASKET; JOINT BOLT,FUEL PIPE

198808-

2шт.

112

1096750860

BOLT; JOINT,FUEL FILTER

198808-

2шт.

115

1096300850

GASKET; JOINT BOLT,FUEL PIPE

198808-

4шт.

117

9095250250

CLIP; FUEL PIPE

A 198808-200606

1шт.

117

952350250

CLIP; FUEL PIPE

200607-

1шт.

118

500408200

BOLT; CLIP,FUEL PIPE

C 199005-200906

1шт.

118

505408200

BOLT; CLIP,FUEL PIPE

200907-

1шт.

119

1154150030

PIPE; FUEL,FUEL FILTER TO INJ PUMP

198808-

1шт.

123

1154150051

PIPE; FUEL,FUEL FILTER LEAK OFF

C 198808-199706

1шт.

123

1154162090

PIPE; FUEL,FUEL FILTER LEAK OFF

199707-

1шт.

124

1094680021

NUT; CAP,FUEL PIPE

198808-

1шт.

125(A)

9097161140

CLIP; FUEL PIPE

198808-

2шт.

125(B)

9097161240

CLIP; FUEL PIPE

198808-

2шт.

126

500406250

BOLT; CLIP,FUEL PIPE

C 198808-200906

2шт.

126

505406250

BOLT; CLIP,FUEL PIPE

200907-

2шт.

207

1096300850

GASKET; EYE BOLT

198808-

3шт.

212(A)

1132600011

VALVE; OVERFLOW

198808-

1шт.
