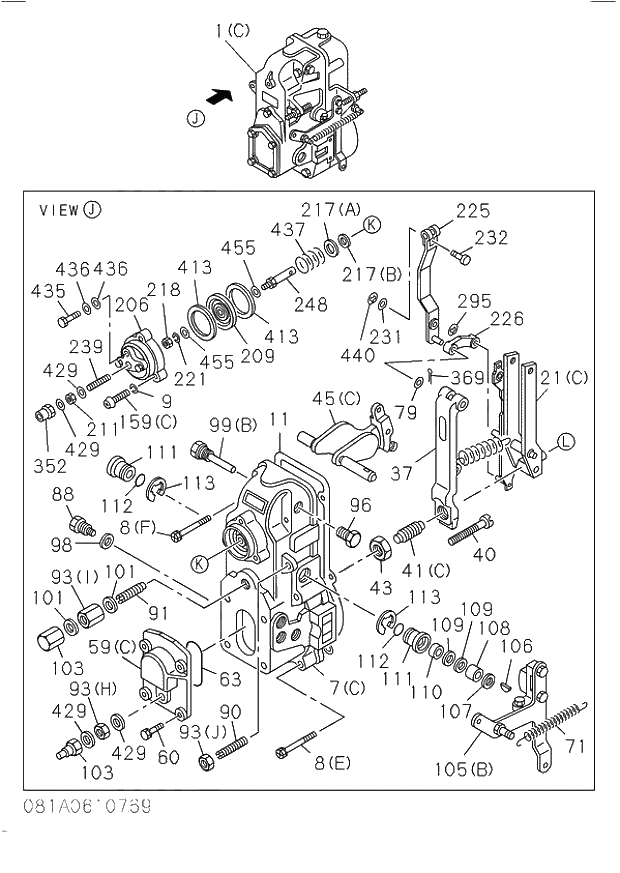

Справочник запчастей Isuzu 081 GOVERNOR INJECTION PUMP. 081 GOVERNOR INJECTION PUMP. со схемами

1

1157206870

GOVERNOR ASM; INJ PUMP

198308 -

1шт.

2

1157210330

HOUSING; GOV,INJ PUMP

198308 -

1шт.

3

9813251870

BOLT; GOV HSG,INJ PUMP

198308 -

8шт.

4

9813255270

PLATE; START SPRING,GOV

198308 -

1шт.

5

1157790860

GASKET; GOV TO INJ PUMP HSG

198308 -

1шт.

7

5157210200

COVER; GOV HSG,INJ PUMP

198308 -

1шт.

8

5157290330

BOLT; GOV COVER,INJ PUMP

198308 -

4шт.

8

5157290540

BOLT; GOV COVER,INJ PUMP

198308 -

2шт.

11

1157790940

GASKET; COVER TO HSG,GOV

198308 -

1шт.

12

1157220170

FLYWEIGHT ASM; GOV

198308 -

1шт.

13

5156190490

KEY; FLYWEIGHT,GOV

198308 -

1шт.

13

9813250300

KEY; FLYWEIGHT,GOV

198308 -

1шт.

15

5157290340

WASHER; LK,FLYWEIGHT FIX,GOV

198308 -

1шт.

16

9813250860

NUT; FLYWEIGHT FIX,GOV

198308 -

1шт.

17

9813250880

SHIM; FLYWEIGHT SLEEVE,GOV

198308 -

17

9813255510

SHIM; FLYWEIGHT SLEEVE,GOV

198308 -

17

9813255520

SHIM; FLYWEIGHT SLEEVE,GOV

198308 -

17

9813255530

SHIM; FLYWEIGHT SLEEVE,GOV

198308 -

17

5157292870

SHIM; FLYWEIGHT SLEEVE,GOV

198308 -

17

5157292860

SHIM; FLYWEIGHT SLEEVE,GOV

198308 -

17

1157298930

SHIM; FLYWEIGHT SLEEVE,GOV

198308 -

17

1157298910

SHIM; FLYWEIGHT SLEEVE,GOV

198308 -

17

1157298920

SHIM; FLYWEIGHT SLEEVE,GOV

198308 -

18

5157190080

SLEEVE; GOV

198308 -

1шт.

21

1157250930

LEVER ASM; GUIDE,GOV

198308 -

1шт.

23

1157250200

LINK; LEVER TO CONT RACK,GOV

198308 -

1шт.

24

9813216840

SPRING; START,GOV,INJ PUMP

198308 -

1шт.

25

9091854040

RING; SNAP

198308 -

1шт.

28

5157250420

LEVER; SUPPORTING,GOV

198308 -

1шт.

37

5157250170

LEVER ASM; TENSION,GOV

198308 -

1шт.

40

9813251820

SCREW; LEVER ADJ,GOV

198308 -

1шт.

41

8944707560

SPRING CAPSULE; IDLE CONT,GOV

198308 -

1шт.

41

1157232690

SPRING CAPSULE; IDLE CONT,GOV

198308 -

1шт.

42

9008130230

NUT; SPRING CAPSULE,IDLE CONT,GOV

198308 -

1шт.

43

9884100370

NUT; IDLING CONT SPRING,GOV

198308 -

1шт.

45

1157256680

LEVER ASM; GOV,INJ PUMP

198308 -

1шт.

46

1157231460

SPRING; GOV,INJ PUMP

198308 -

1шт.

59

1157210730

COVER; GOV COVER

198308 -

1шт.

60

5157290630

BOLT; COVER FIX,GOV COVER

198308 -

2шт.

60

9019006160

BOLT; COVER FIX,GOV COVER

198308 -

2шт.

60

1157290690

BOLT; COVER FIX,GOV COVER

198308 -

1шт.

63

9813919070

GASKET; COVER TO GOV COVER

198308 -

1шт.

64

1157253380

LEVER; LOAD CONT,GOV

198308 -

1шт.

67

9019006160

BOLT; SPRING BRKT,GOV

198308 -

1шт.

71

5157230880

SPRING; CONT LEVER,GOV

198308 -

1шт.

78

1157252000

LEVER; STOPPER,GOV

198308 -

1шт.

79

1157292940

SHIM; LEVER SETTING,GOV

198308 -

79

1157292950

SHIM; LEVER SETTING,GOV

198308 -

79

1157292960

SHIM; LEVER SETTING,GOV

198308 -

79

1157292970

SHIM; LEVER SETTING,GOV

198308 -

79

1157292980

SHIM; LEVER SETTING,GOV

198308 -

79

1157292990

SHIM; LEVER SETTING,GOV

198308 -

86

9813254290

BUSHING; CONT SHAFT,GOV COVER

198308 -

1шт.

90

9813251770

SCREW; FULL LOAD ADJ,GOV

198308 -

1шт.

91

1157232240

SPRING CAPSULE; ADJ,GOV

198308 -

1шт.

92

5157291020

BOLT; FULL LOAD STOPPER,GOV

198308 -

1шт.

93

1157296430

NUT; ADJ SCREW LK,INJ PUMP GOV

198308 -

1шт.

93

1157296890

NUT; ADJ SCREW LK,INJ PUMP GOV

198308 -

1шт.

93

9813261120

NUT; ADJ SCREW LK,INJ PUMP GOV

198308 -

1шт.

93

9844100270

NUT; ADJ SCREW LK,INJ PUMP GOV

198308 -

2шт.

94

1157297610

SCREW; ADJ,CONT LEVER,GOV

198308 -

1шт.

94

1157790270

SCREW; ADJ,CONT LEVER,GOV

198308 -

1шт.

96

5157290530

PLUG; LEVER SHAFT,GOV

198308 -

2шт.

99

9813250620

PIN; TENSION LEVER,GOV

198308 -

1шт.

101

8941445880

GASKET; ADJ SPRING CAPSULE,GOV

198308 -

2шт.

103

1157290920

NUT; CAP,ADJ SPRING CAPSULE,GOV

198308 -

1шт.

104

8970850220

CAP; LOCK NUT,ADJ SCREW

198308 -

1шт.

106

9813250300

KEY; SWIVEL LEVER,GOV

198308 -

1шт.

107

9813254880

WASHER; SWIVEL LEVER,GOV

198308 -

1шт.

108

1157293010

COLLAR; SWIVEL LEVER,GOV

198308 -

1шт.

109

9813250970

SHIM; SWIVEL LEVER,GOV

198308 -

109

1157290990

SHIM; SWIVEL LEVER,GOV

198308 -

1шт.

110

1157290980

SEAL; OIL,SWIVEL LEVER,GOV

198308 -

1шт.

111

8970242400

BUSHING; SWIVEL LEVER,GOV

198308 -

1шт.

111

8970242390

BUSHING; SWIVEL LEVER,GOV

198308 -

1шт.

112

9813212050

GASKET; SWIVEL LEVER,GOV

198308 -

2шт.

113

9091854150

RING; SNAP,SWIVEL LEVER,GOV

198308 -

2шт.

125

9813252100

CAP; STOP LEVER SPRING,GOV

198308 -

1шт.

145

1157294200

CAP; GOV COVER,INJ PUMP

198308 -

1шт.

146

9813255280

GASKET; COVER CAP,GOV

198308 -

1шт.

154

5157291120

BOLT; GOV HSG

198308 -

1шт.

156

1835794920

WASHER; GOV HSG

198308 -

1шт.

160

1157290150

GASKET; PLUG TO HSG

198308 -

1шт.

161

1157290380

PLUG; HSG

198308 -

1шт.

185

9813919060

GASKET; BUSHING,GOV COVER

198308 -

1шт.

223

9000902290

BEARING; SLEEVE

198308 -

1шт.

280

1157232120

SPRING; RETURN,LEVER

198308 -

1шт.

387

9091505060

WASHER; COVER

198308 -

1шт.
