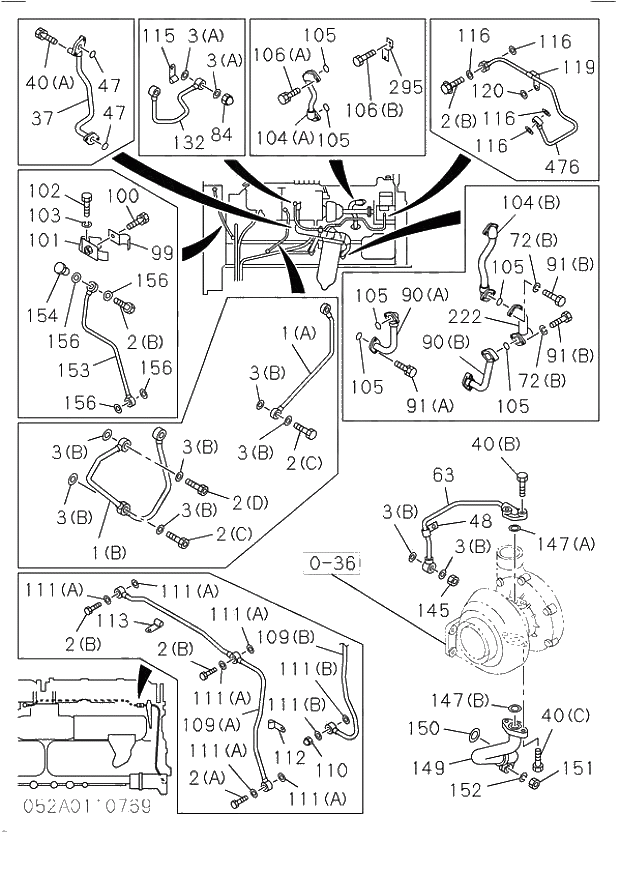

Запчасти Isuzu 052 OIL AND VACUUM PIPING ENGINE. 052 OIL AND VACUUM PIPING ENGINE.

1(A)

9133126750

PIPE; OIL,INJ PUMP TO C/BL

198308 -

1шт.

2(B)

1096750770

BOLT; EYE,OIL PIPE

198308 -

2шт.

2(C)

1096750850

BOLT; EYE,OIL PIPE

198308 -

1шт.

3(A)

1096300830

GASKET; EYE BOLT,OIL PIPE

198308 -

2шт.

3(B)

1096300840

GASKET; EYE BOLT,OIL PIPE

198308 -

4шт.

21

1133451051

STAY; OIL PIPE

198308 -

1шт.

37

1133118400

PIPE; OIL,FILTER TO COOLER

198308 -

1шт.

40(A)

500408220

BOLT; OIL PIPE

199004 -

5шт.

40(A)

500408320

BOLT; OIL PIPE

199004 -

1шт.

40(B)

9019108320

BOLT; OIL PIPE

A 198308 - 199003

2шт.

40(B)

500408320

BOLT; OIL PIPE

199004 -

2шт.

44

501408200

BOLT; CLIP,OIL PIPE

199004 -

1шт.

47

1096234500

GASKET; OIL PIPE

199004 -

2шт.

48

1097003320

CLIP; OIL PIPE

198308 -

1шт.

54(B)

1133451460

STAY; OIL STRAINER

198709 -

1шт.

54(D)

1133451470

STAY; OIL STRAINER

198709 -

1шт.

62

1133117041

PIPE; OIL,PUMP TO C/BL

198308 -

1шт.

63

1133124620

PIPE; OIL,TURBOCHARGER FEED

198308 -

1шт.

72(A)

9091505100

WASHER; LK,OIL PIPE

198308 -

1шт.

72(B)

9091505080

WASHER; LK,OIL PIPE

198308 -

2шт.

74

9091104080

NUT; CLIP,OIL PIPE,PUMP TO BODY

198308 -

1шт.

76

9091606080

WASHER; CLIP

198308 -

1шт.

77

500408160

BOLT; STAY,PUMP TO BODY

199004 -

1шт.

78(A)

168060550

BOLT; OIL PIPE,PUMP TO BODY

199004 -

1шт.

78(A)

500510220

BOLT; OIL PIPE,PUMP TO BODY

199004 -

1шт.

78(B)

108058700

BOLT; OIL PIPE,PUMP TO BODY

199004 -

1шт.

78(B)

108058700

BOLT; OIL PIPE,PUMP TO BODY

199004 -

2шт.

81

500408350

BOLT; OIL PIPE,BODY TO BODY

199004 -

2шт.

84

9098440220

NUT; CAP,OIL PIPE

198308 -

1шт.

90(A)

9133125081

PIPE ASM; OIL,C/BL TO FILTER

198308 - 199807

1шт.

90(B)

1133122860

PIPE ASM; OIL,C/BL TO FILTER

199808 -

1шт.

91(A)

500408220

BOLT; OIL PIPE,BODY TO FILTER

199004 -

3шт.

91(A)

500408400

BOLT; OIL PIPE,BODY TO FILTER

199004 -

1шт.

99

1097006340

CLIP; OIL PIPE,FILTER TO COOLER

198308 -

1шт.

100

500410200

BOLT; CLIP

199004 -

1шт.

101

1133451180

BRACKET; CLIP

198308 -

1шт.

102

238014250

BOLT; BRKT

199004 -

1шт.

103

9091505140

WASHER; LK,BRKT

198308 -

1шт.

104(A)

1133113041

PIPE ASM; OIL,COOLER TO BODY

198308 - 199807

1шт.

104(B)

1133123430

PIPE ASM; OIL,COOLER TO BODY

199808 -

1шт.

105

1096234500

GASKET; OIL PIPE,COOLER TO BODY

199004 -

4шт.

106(A)

500408220

BOLT; OIL PIPE,COOLER TO BODY

199004 -

2шт.

106(B)

500408300

BOLT; OIL PIPE,COOLER TO BODY

199004 -

2шт.

109(B)

1133126390

PIPE ASM; OIL,BODY TO HD

198607 -

1шт.

110

9098446321

NUT; CAP OIL PIPE

198607 -

1шт.

111(A)

1096300830

GASKET; JOINT,OIL PIPE,BODY TO HD

198607 -

4шт.

111(B)

1096300840

GASKET; JOINT,OIL PIPE,BODY TO HD

198607 -

2шт.

112

1097001440

CLIP; OIL PIPE,TAP CHAMBER CVR

198308 -

1шт.

113

1097004440

CLIP; WATER OUTLET PIPE

198308 -

1шт.

114

1133117031

PIPE ASM; OIL,BODY

198308 -

1шт.

115

9099174110

CLIP; PIPE,INJ PUMP

A 198308 - 199401

1шт.

115

9099176490

CLIP; PIPE,INJ PUMP

199402 -

1шт.

132

9133124141

PIPE ASM; OIL,INJ PUMP FEED

198308 -

1шт.

145

9098446321

NUT; CAP,OIL PIPE,TURBOCHARGER FEED

198308 -

1шт.

147(A)

1096232740

GASKET; OIL PIPE TO TURBOCHARGER

198308 -

1шт.

147(B)

1096233590

GASKET; OIL PIPE TO TURBOCHARGER

198308 -

1шт.

149

1133126130

PIPE; OIL RETURN,TURBOCHARGER

198308 -

1шт.

150

1096232970

GASKET; OIL PIPE TO C/BL

198308 -

1шт.

151

9091104080

NUT; PIPE,TURBOCHARGER RETAINER

198308 -

2шт.

152

9091505080

WASHER; LK,OIL PIPE,TURBOCHARGER

198308 -

2шт.

222

1132600611

VALVE ASM; CHECK

198308 -

1шт.

357

5095031110

WASHER; PL,STAY

198308 -

4шт.

371

500408160

BOLT; STAY

199004 -

4шт.

1(A)

9133126750

PIPE; OIL,INJ PUMP TO C/BL

198308 -

1шт.

2(B)

1096750770

BOLT; EYE,OIL PIPE

198308 -

2шт.

2(C)

1096750850

BOLT; EYE,OIL PIPE

198308 -

1шт.

3(A)

1096300830

GASKET; EYE BOLT,OIL PIPE

198308 -

2шт.

3(B)

1096300840

GASKET; EYE BOLT,OIL PIPE

198308 -

4шт.

21

1133451051

STAY; OIL PIPE

198308 -

1шт.

37

1133118400

PIPE; OIL,FILTER TO COOLER

198308 -

1шт.

40(A)

500408220

BOLT; OIL PIPE

199004 -

5шт.

40(A)

500408320

BOLT; OIL PIPE

199004 -

1шт.

40(B)

9019108320

BOLT; OIL PIPE

A 198308 - 199003

2шт.

40(B)

500408320

BOLT; OIL PIPE

199004 -

2шт.

44

501408200

BOLT; CLIP,OIL PIPE

199004 -

1шт.

47

1096234500

GASKET; OIL PIPE

199004 -

2шт.

48

1097003320

CLIP; OIL PIPE

198308 -

1шт.

54(B)

1133451460

STAY; OIL STRAINER

198709 -

1шт.

54(D)

1133451470

STAY; OIL STRAINER

198709 -

1шт.

62

1133117041

PIPE; OIL,PUMP TO C/BL

198308 -

1шт.

63

1133124620

PIPE; OIL,TURBOCHARGER FEED

198308 -

1шт.

72(A)

9091505100

WASHER; LK,OIL PIPE

198308 -

1шт.

72(B)

9091505080

WASHER; LK,OIL PIPE

198308 -

2шт.

74

9091104080

NUT; CLIP,OIL PIPE,PUMP TO BODY

198308 -

1шт.

76

9091606080

WASHER; CLIP

198308 -

1шт.

77

500408160

BOLT; STAY,PUMP TO BODY

199004 -

1шт.

78(A)

168060550

BOLT; OIL PIPE,PUMP TO BODY

199004 -

1шт.

78(A)

500510220

BOLT; OIL PIPE,PUMP TO BODY

199004 -

1шт.

78(B)

108058700

BOLT; OIL PIPE,PUMP TO BODY

199004 -

1шт.

78(B)

108058700

BOLT; OIL PIPE,PUMP TO BODY

199004 -

2шт.

81

500408350

BOLT; OIL PIPE,BODY TO BODY

199004 -

2шт.

84

9098440220

NUT; CAP,OIL PIPE

198308 -

1шт.

90(A)

9133125081

PIPE ASM; OIL,C/BL TO FILTER

198308 - 199807

1шт.

90(B)

1133122860

PIPE ASM; OIL,C/BL TO FILTER

199808 -

1шт.

91(A)

500408220

BOLT; OIL PIPE,BODY TO FILTER

199004 -

3шт.

91(A)

500408400

BOLT; OIL PIPE,BODY TO FILTER

199004 -

1шт.

99

1097006340

CLIP; OIL PIPE,FILTER TO COOLER

198308 -

1шт.

100

500410200

BOLT; CLIP

199004 -

1шт.

101

1133451180

BRACKET; CLIP

198308 -

1шт.

102

238014250

BOLT; BRKT

199004 -

1шт.

103

9091505140

WASHER; LK,BRKT

198308 -

1шт.

104(A)

1133113041

PIPE ASM; OIL,COOLER TO BODY

198308 - 199807

1шт.

104(B)

1133123430

PIPE ASM; OIL,COOLER TO BODY

199808 -

1шт.

105

1096234500

GASKET; OIL PIPE,COOLER TO BODY

199004 -

4шт.

106(A)

500408220

BOLT; OIL PIPE,COOLER TO BODY

199004 -

2шт.

106(B)

500408300

BOLT; OIL PIPE,COOLER TO BODY

199004 -

2шт.

109(B)

1133126390

PIPE ASM; OIL,BODY TO HD

198607 -

1шт.

110

9098446321

NUT; CAP OIL PIPE

198607 -

1шт.

111(A)

1096300830

GASKET; JOINT,OIL PIPE,BODY TO HD

198607 -

4шт.

111(B)

1096300840

GASKET; JOINT,OIL PIPE,BODY TO HD

198607 -

2шт.

112

1097001440

CLIP; OIL PIPE,TAP CHAMBER CVR

198308 -

1шт.

113

1097004440

CLIP; WATER OUTLET PIPE

198308 -

1шт.

114

1133117031

PIPE ASM; OIL,BODY

198308 -

1шт.

115

9099174110

CLIP; PIPE,INJ PUMP

A 198308 - 199401

1шт.

115

9099176490

CLIP; PIPE,INJ PUMP

199402 -

1шт.

132

9133124141

PIPE ASM; OIL,INJ PUMP FEED

198308 -

1шт.

145

9098446321

NUT; CAP,OIL PIPE,TURBOCHARGER FEED

198308 -

1шт.

147(A)

1096232740

GASKET; OIL PIPE TO TURBOCHARGER

198308 -

1шт.

147(B)

1096233590

GASKET; OIL PIPE TO TURBOCHARGER

198308 -

1шт.

149

1133126130

PIPE; OIL RETURN,TURBOCHARGER

198308 -

1шт.

150

1096232970

GASKET; OIL PIPE TO C/BL

198308 -

1шт.

151

9091104080

NUT; PIPE,TURBOCHARGER RETAINER

198308 -

2шт.

152

9091505080

WASHER; LK,OIL PIPE,TURBOCHARGER

198308 -

2шт.

222

1132600611

VALVE ASM; CHECK

198308 -

1шт.

357

5095031110

WASHER; PL,STAY

198308 -

4шт.

371

500408160

BOLT; STAY

199004 -

4шт.
