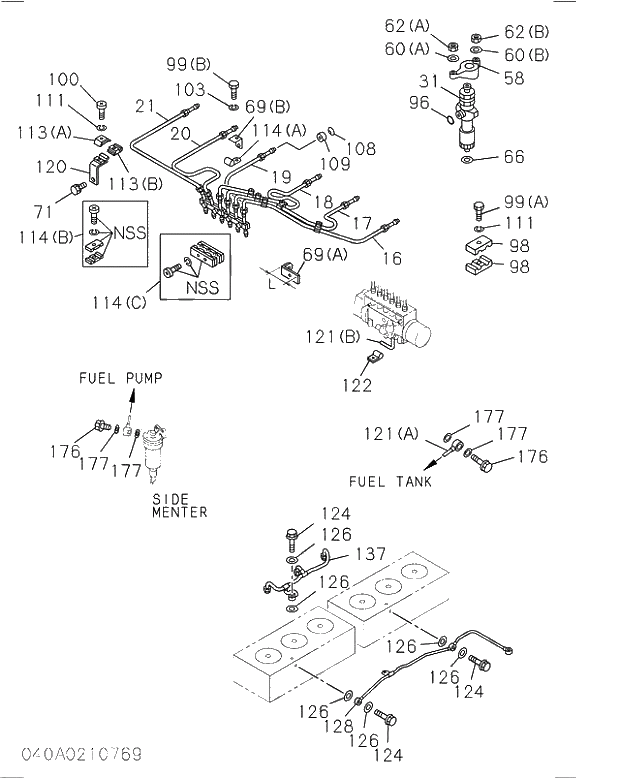

Справочник запчастей Isuzu 040 FUEL INJECTION SYSTEM. 040 FUEL INJECTION SYSTEM. со схемами

1

1156023201

PUMP ASM; INJ

198308 -

1шт.

2

9016560900

BOLT; INJ PUMP

A 198308 - 199003

4шт.

2

0168060900

BOLT; INJ PUMP

199004 -

4шт.

3

9091505100

WASHER; LK,INJ PUMP

198308 -

4шт.

4

9091605100

WASHER; INJ PUMP

198308 -

4шт.

6

9197511181

BRACKET; INJ PUMP TO C/BL

198308 -

1шт.

7(A)

9019310400

BOLT; INJ PUMP BRKT

A 198308 - 199003

1шт.

7(A)

0500510400

BOLT; INJ PUMP BRKT

199004 -

1шт.

7(B)

9016560800

BOLT; INJ PUMP BRKT

A 198308 - 199003

2шт.

7(B)

0168060800

BOLT; INJ PUMP BRKT

199004 -

2шт.

7(C)

9916564550

BOLT; INJ PUMP BRKT

A 198308 - 199003

1шт.

7(C)

0168064550

BOLT; INJ PUMP BRKT

199004 -

1шт.

8(A)

9091505100

WASHER; LK,INJ PUMP BRKT

198308 -

2шт.

8(B)

9091505140

WASHER; LK,INJ PUMP BRKT

198308 -

1шт.

10

9197590191

DOWEL; INJ PUMP

198308 -

2шт.

11(A)

9091605100

WASHER; INJ PUMP BRKT

198308 -

1шт.

11(B)

9091605140

WASHER; INJ PUMP BRKT

198308 -

1шт.

15(A)

1157800330

COUPLING ASM; INJ PUMP

198308 -

1шт.

16

1154130410

PIPE; INJ NO 1

198308 -

1шт.

17

1154130420

PIPE; INJ NO 2

198308 -

1шт.

18

1154130430

PIPE; INJ NO 3

198308 -

1шт.

19

1154130440

PIPE; INJ NO 4

198308 -

1шт.

20

1154130450

PIPE; INJ NO 5

198308 -

1шт.

21

1154130460

PIPE; INJ NO 6

198308 -

1шт.

31

1153001591

NOZZLE ASM; INJ

198308 -

6шт.

32(B)

1153300422

HOLDER ASM; NOZZLE

198308 -

6шт.

33(B)

1153111560

NOZZLE; INJ

198308 -

6шт.

35

1153320100

NUT; NOZZLE RET,NOZZLE HOLDER

198308 - 199305

6шт.

35

1153320190

NUT; NOZZLE RET,NOZZLE HOLDER

199306 -

6шт.

37(B)

1153340110

NUT; CAP,NOZZLE HOLDER

198308 -

6шт.

38(B)

5153390600

GASKET; CAP NUT,NOZZLE HOLDER

198308 -

6шт.

39(B)

5153450050

SCREW; ADJ,NOZZLE SPRING,NOZZLE HOLDER

198308 -

6шт.

44(B)

5153430050

SPRING; NOZZLE,NOZZLE HOLDER

198308 -

6шт.

45(B)

1153410030

ROD; PUSH,NOZZLE HOLDER

198308 -

6шт.

46

9153470030

PIN; NOZZLE SET,NOZZLE HOLDER

198308 -

12шт.

58

9153370170

FLANGE; INJ,NOZZLE HOLDER

198308 -

6шт.

60(A)

1095030390

WASHER; NOZZLE HOLDER

198308 -

6шт.

60(B)

1095030331

WASHER; NOZZLE HOLDER

198308 -

6шт.

62(A)

9091104080

NUT; NOZZLE HOLDER

198308 -

6шт.

62(B)

9091105100

NUT; NOZZLE HOLDER

198308 -

6шт.

66

9153150750

GASKET; INJ NOZZLE

198308 -

6шт.

96

1096390190

GASKET; HOLDER TO SLEEVE NUT

198308 -

6шт.

98

9154196130

CLIP; "A",INJ PIPE

198308 -

6шт.

99(B)

9920505100

BOLT; CLIP,INJ,PIPE

A 198502 - 199003

1шт.

99(B)

0208005100

BOLT; CLIP,INJ,PIPE

199004 -

1шт.

100

9096020820

BOLT; INJ PIPE CLIP

198403 -

1шт.

103

9091505050

WASHER; LK,CLIP,INJ PIPE

198502 -

1шт.

108

1096390180

GASKET; SLEEVE NUT TO HD

198308 -

6шт.

109

9154191050

NUT; GASKET

198308 -

6шт.

113(A)

1097001100

CLIP; INJ PIPE

198308 -

2шт.

113(B)

1154191020

CLIP; INJ PIPE

198308 -

2шт.

114(A)

9095246320

CLIP; INJ PIPE

198502 -

1шт.

114(B)

9154196120

CLIP; INJ PIPE

198308 -

1шт.

114(C)

1154190990

CLIP; INJ PIPE

198308 -

2шт.

120

1154191030

BRACKET; INJ PIPE

198308 -

2шт.

121(A)

5154112231

PIPE; FUEL,FEED PUMP,SUCTION

198308 -

1шт.

124

1096750371

BOLT; EYE LEAK OFF PIPE

198308 -

4шт.

126

1096300820

GASKET; EYE BOLT LEAK OFF PIPE

198308 -

8шт.

128

1154143970

PIPE ASM; INJ

198308 -

1шт.

137

9154130031

PIPE ASM; LEAK OFF

198308 -

2шт.

174

1096750770

BOLT; EYE,FUEL OUTLET,FEED PUMP

198308 -

1шт.

199(A)

1096300850

GASKET; EYE BOLT

198308 -

8шт.

199(B)

1096300830

GASKET; EYE BOLT

198308 -

2шт.

216(A)

1096750630

BOLT; EYE

198308 -

1шт.

216(B)

1096750860

BOLT; EYE

198308 -

3шт.

1

1156023201

PUMP ASM; INJ

198308 -

1шт.

2

9016560900

BOLT; INJ PUMP

A 198308 - 199003

4шт.

2

0168060900

BOLT; INJ PUMP

199004 -

4шт.

3

9091505100

WASHER; LK,INJ PUMP

198308 -

4шт.

4

9091605100

WASHER; INJ PUMP

198308 -

4шт.

6

9197511181

BRACKET; INJ PUMP TO C/BL

198308 -

1шт.

7(A)

9019310400

BOLT; INJ PUMP BRKT

A 198308 - 199003

1шт.

7(A)

0500510400

BOLT; INJ PUMP BRKT

199004 -

1шт.

7(B)

9016560800

BOLT; INJ PUMP BRKT

A 198308 - 199003

2шт.

7(B)

0168060800

BOLT; INJ PUMP BRKT

199004 -

2шт.

7(C)

9916564550

BOLT; INJ PUMP BRKT

A 198308 - 199003

1шт.

7(C)

0168064550

BOLT; INJ PUMP BRKT

199004 -

1шт.

8(A)

9091505100

WASHER; LK,INJ PUMP BRKT

198308 -

2шт.

8(B)

9091505140

WASHER; LK,INJ PUMP BRKT

198308 -

1шт.

10

9197590191

DOWEL; INJ PUMP

198308 -

2шт.

11(A)

9091605100

WASHER; INJ PUMP BRKT

198308 -

1шт.

11(B)

9091605140

WASHER; INJ PUMP BRKT

198308 -

1шт.

15(A)

1157800330

COUPLING ASM; INJ PUMP

198308 -

1шт.

16

1154130410

PIPE; INJ NO 1

198308 -

1шт.

17

1154130420

PIPE; INJ NO 2

198308 -

1шт.

18

1154130430

PIPE; INJ NO 3

198308 -

1шт.

19

1154130440

PIPE; INJ NO 4

198308 -

1шт.

20

1154130450

PIPE; INJ NO 5

198308 -

1шт.

21

1154130460

PIPE; INJ NO 6

198308 -

1шт.

31

1153001591

NOZZLE ASM; INJ

198308 -

6шт.

32(B)

1153300422

HOLDER ASM; NOZZLE

198308 -

6шт.

33(B)

1153111560

NOZZLE; INJ

198308 -

6шт.

35

1153320100

NUT; NOZZLE RET,NOZZLE HOLDER

198308 - 199305

6шт.

35

1153320190

NUT; NOZZLE RET,NOZZLE HOLDER

199306 -

6шт.

37(B)

1153340110

NUT; CAP,NOZZLE HOLDER

198308 -

6шт.

38(B)

5153390600

GASKET; CAP NUT,NOZZLE HOLDER

198308 -

6шт.

39(B)

5153450050

SCREW; ADJ,NOZZLE SPRING,NOZZLE HOLDER

198308 -

6шт.

44(B)

5153430050

SPRING; NOZZLE,NOZZLE HOLDER

198308 -

6шт.

45(B)

1153410030

ROD; PUSH,NOZZLE HOLDER

198308 -

6шт.

46

9153470030

PIN; NOZZLE SET,NOZZLE HOLDER

198308 -

12шт.

58

9153370170

FLANGE; INJ,NOZZLE HOLDER

198308 -

6шт.

60(A)

1095030390

WASHER; NOZZLE HOLDER

198308 -

6шт.

60(B)

1095030331

WASHER; NOZZLE HOLDER

198308 -

6шт.

62(A)

9091104080

NUT; NOZZLE HOLDER

198308 -

6шт.

62(B)

9091105100

NUT; NOZZLE HOLDER

198308 -

6шт.

66

9153150750

GASKET; INJ NOZZLE

198308 -

6шт.

96

1096390190

GASKET; HOLDER TO SLEEVE NUT

198308 -

6шт.

98

9154196130

CLIP; "A",INJ PIPE

198308 -

6шт.

99(B)

9920505100

BOLT; CLIP,INJ,PIPE

A 198502 - 199003

1шт.

99(B)

0208005100

BOLT; CLIP,INJ,PIPE

199004 -

1шт.

100

9096020820

BOLT; INJ PIPE CLIP

198403 -

1шт.

103

9091505050

WASHER; LK,CLIP,INJ PIPE

198502 -

1шт.

108

1096390180

GASKET; SLEEVE NUT TO HD

198308 -

6шт.

109

9154191050

NUT; GASKET

198308 -

6шт.

113(A)

1097001100

CLIP; INJ PIPE

198308 -

2шт.

113(B)

1154191020

CLIP; INJ PIPE

198308 -

2шт.

114(A)

9095246320

CLIP; INJ PIPE

198502 -

1шт.

114(B)

9154196120

CLIP; INJ PIPE

198308 -

1шт.

114(C)

1154190990

CLIP; INJ PIPE

198308 -

2шт.

120

1154191030

BRACKET; INJ PIPE

198308 -

2шт.

121(A)

5154112231

PIPE; FUEL,FEED PUMP,SUCTION

198308 -

1шт.

124

1096750371

BOLT; EYE LEAK OFF PIPE

198308 -

4шт.

126

1096300820

GASKET; EYE BOLT LEAK OFF PIPE

198308 -

8шт.

128

1154143970

PIPE ASM; INJ

198308 -

1шт.

137

9154130031

PIPE ASM; LEAK OFF

198308 -

2шт.

174

1096750770

BOLT; EYE,FUEL OUTLET,FEED PUMP

198308 -

1шт.

199(A)

1096300850

GASKET; EYE BOLT

198308 -

8шт.

199(B)

1096300830

GASKET; EYE BOLT

198308 -

2шт.

216(A)

1096750630

BOLT; EYE

198308 -

1шт.

216(B)

1096750860

BOLT; EYE

198308 -

3шт.
